24” Hydro-Drive Sod Cutter

Click and drag image to rotate.

Click and drag image to rotate.

24” Hydro-Drive Sod Cutter

The Hydro-Drive 24” sod cutter is built upon the most rugged foundation in the industry with a superstructure frame that features 50 additional pounds of steel and supports a heavy-duty drive and cut system with a laser clad cutting blade - for the ultimate smooth, precise cutting and 3x the blade life.

The unit offers contractors a larger, more productive option. From irrigation, landscape, hardscape, sports field, golf or sod farm applications, the SC240HG and SC240HG will take the chore out of large tear out and removal projects. The SC240HG and SC240KG are ideal for softer touch, shallow cut, bent grass applications. Powered by either a Honda^® 6.5 gross HP* or a Kohler^® with 9.5 foot-pounds of torque.

Features

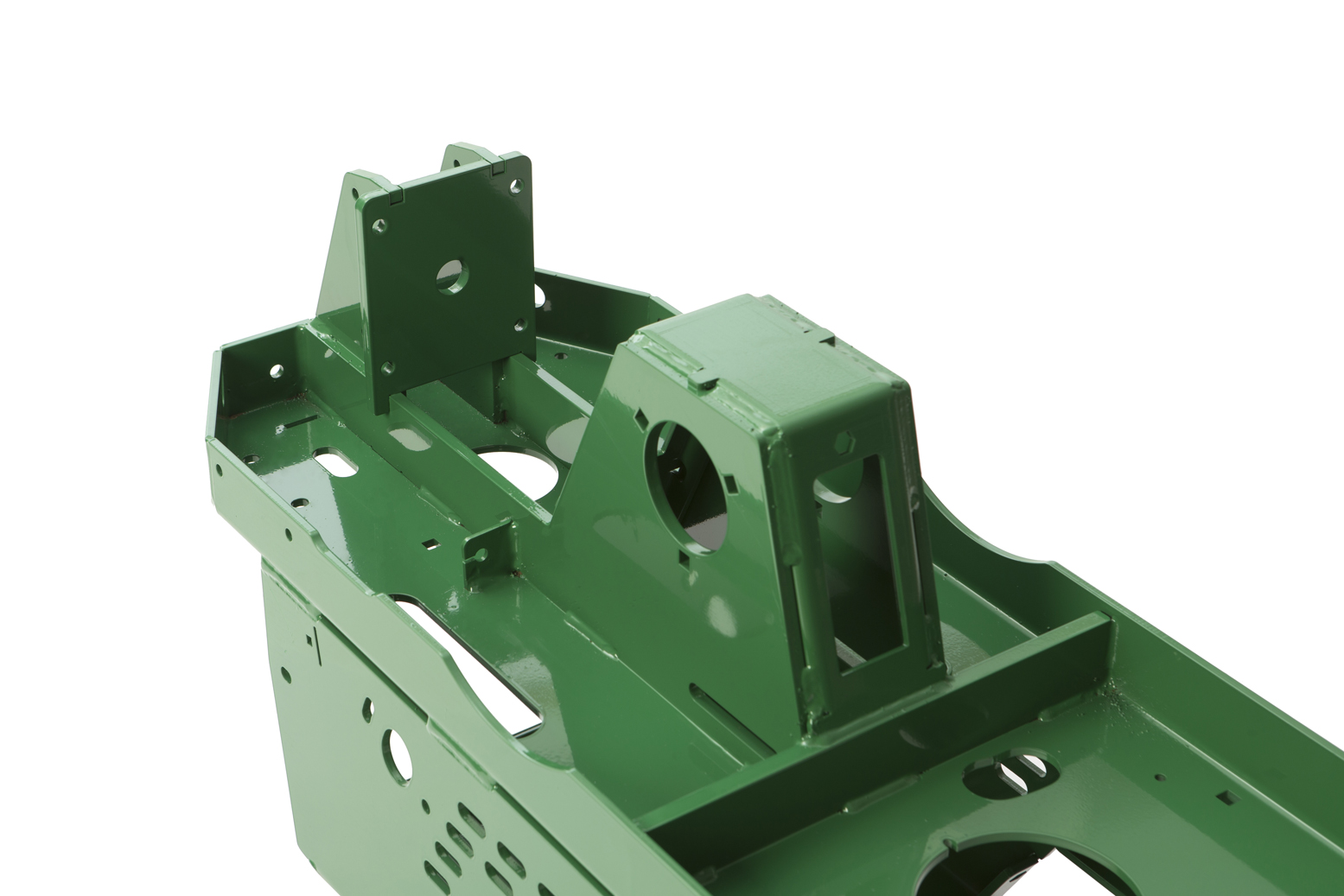

Superstructure Frame

50% thicker 3/8” steel substructure and a ½” thick steel lateral support reinforces frame rigidity.

Durable Cut System

Features a rugged cast iron gear box, spiral cut gears and thick seals. Sealed bearings, one-inch plated lateral stability bar, large aluminum dog bones and tight eccentric placement adds strength and dependability. Laser clad cutting blade for precision cut and up to 3x blade life.

Standardized Controls

Our best in class controls package provides standardized variable speed intuitive hydro-drive controls allowing an operator to feather in forward / reverse directly at the handles with no shifting required. Billy Goat Controls offer a consistent customer experience across our hydro-drive machines affording fleet buyers and rental customers simple operation, as well as ease of training and renting.

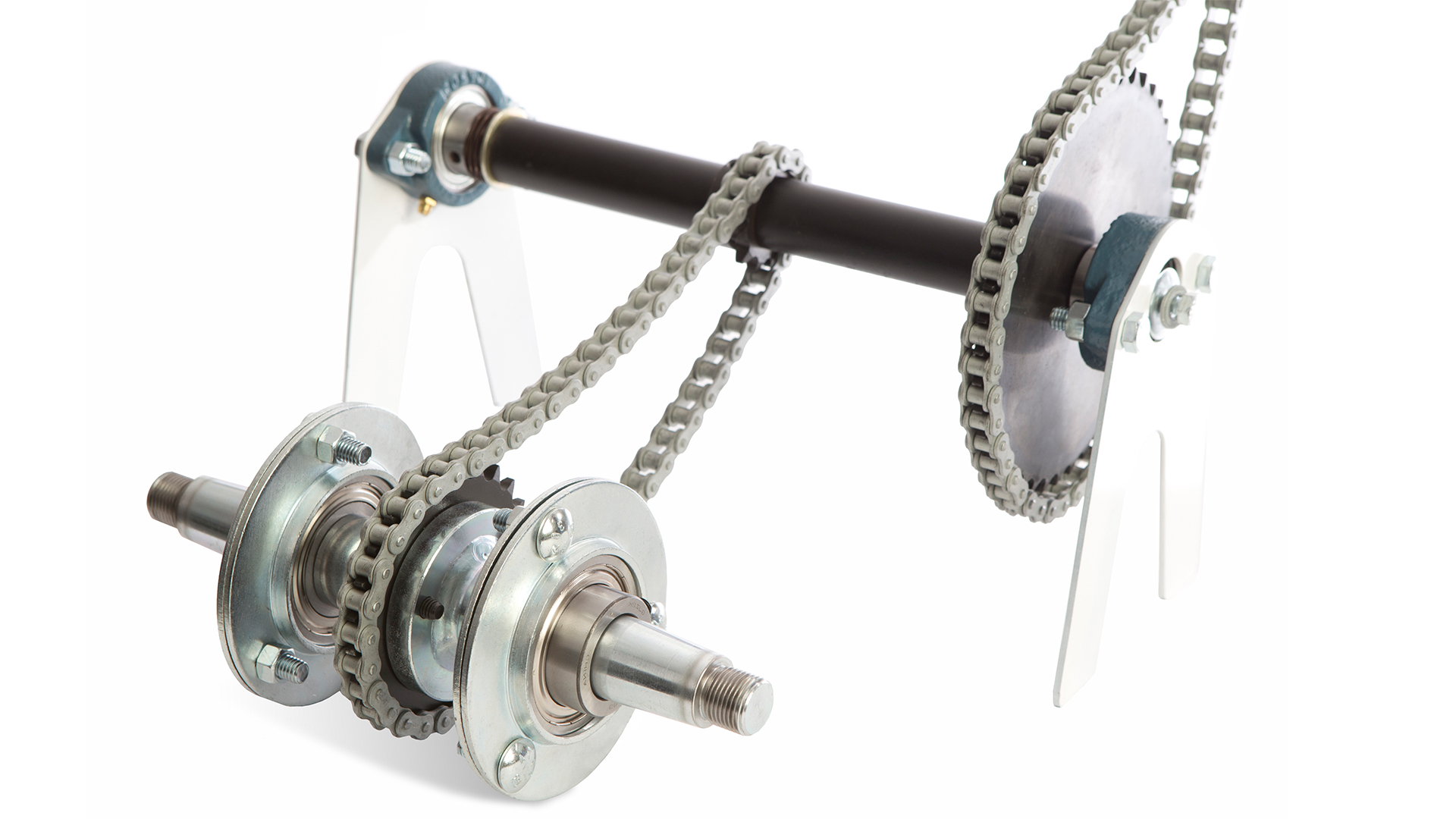

Heavy-Duty Transmission

Drives 1.25” plated tapered axle with two-inch sealed bearings coupled to a one-inch jack shaft with armor coated chain for rugged drive reliability.

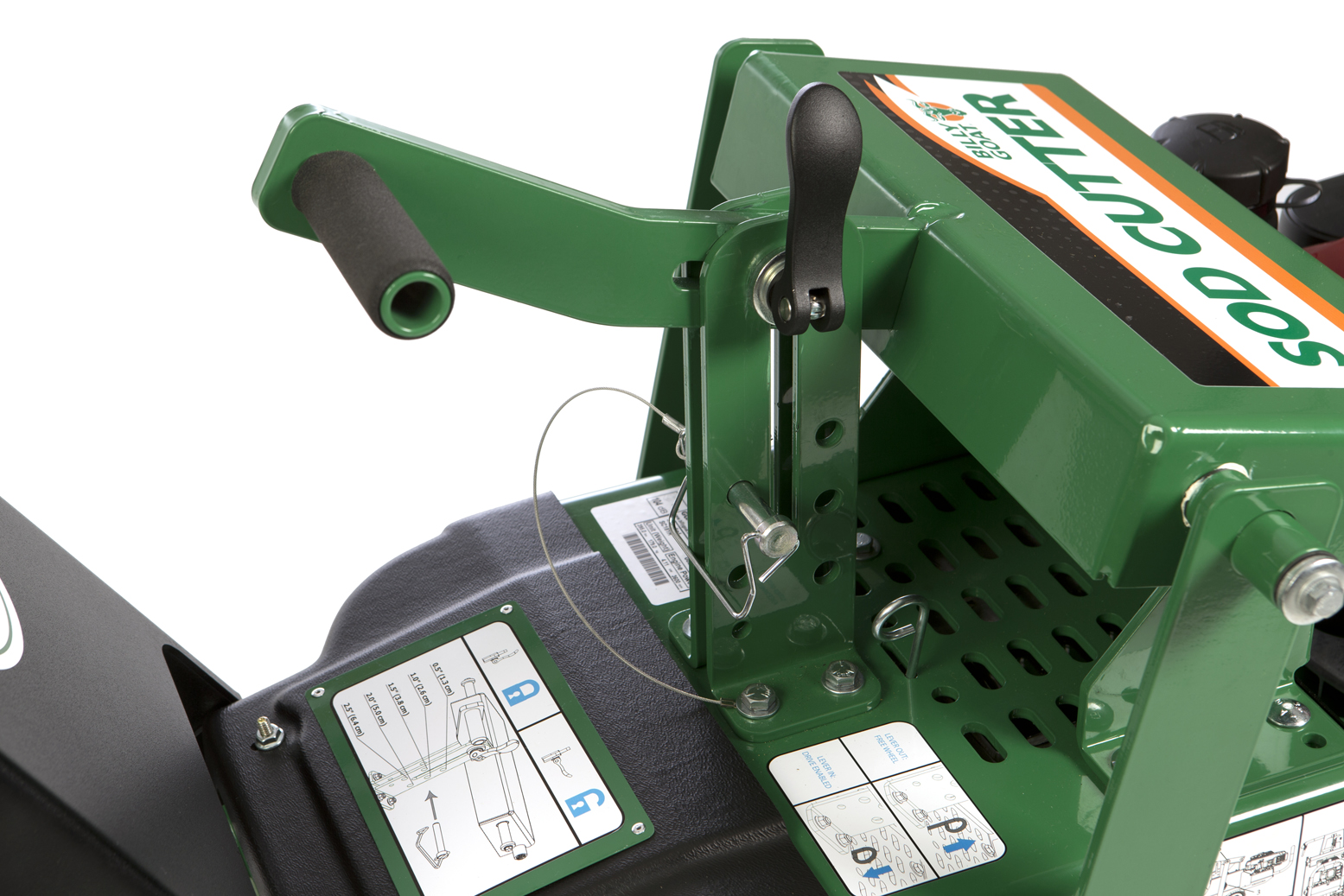

Set and Forget Blade Depth Adjustment to 2.5"

Single lever and clamp at user’s operating position adjusts simply, saving time and providing precise cutting depths.

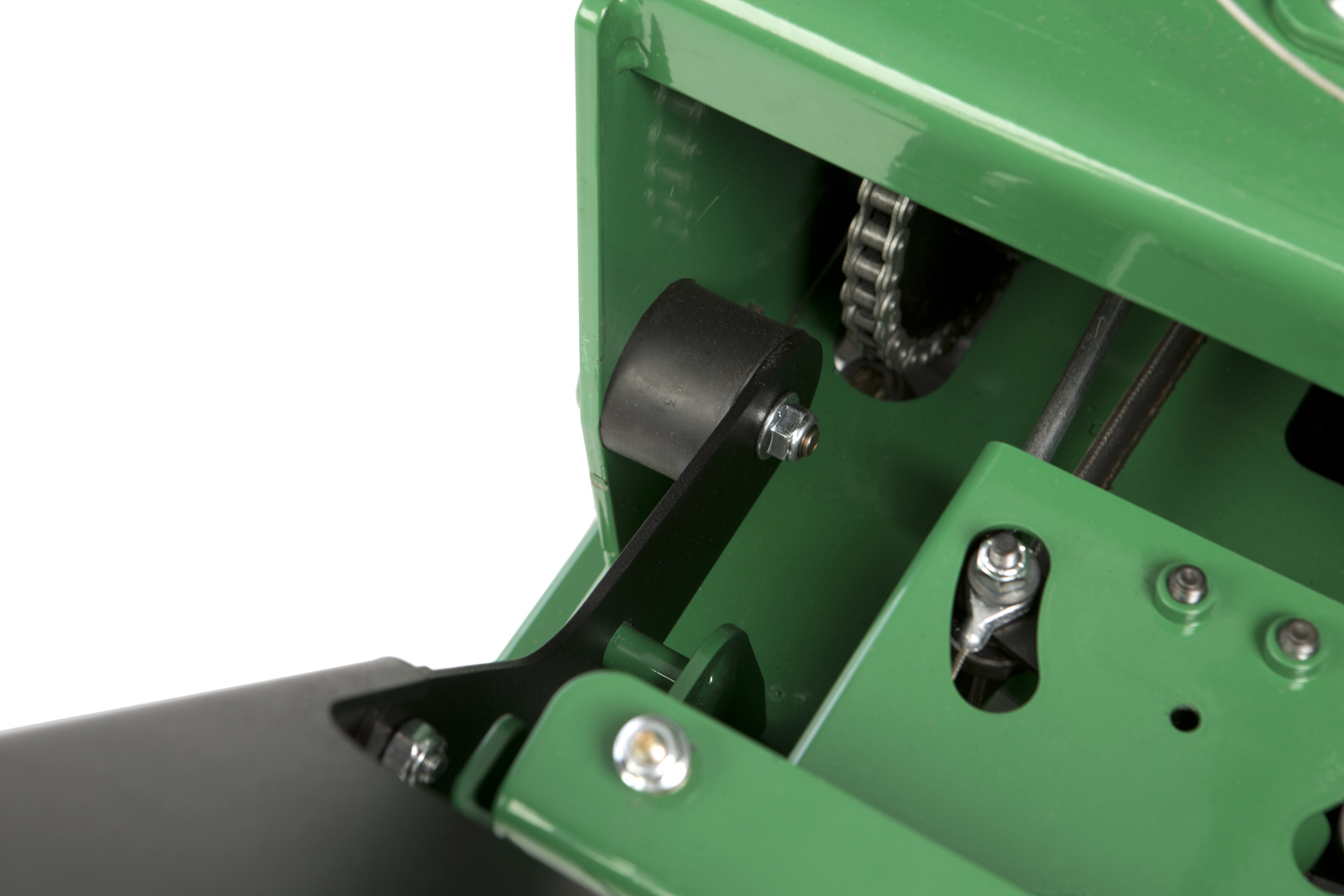

Multiple Oversized Isolation Mounts

Absorb vibration so operator completes tasks quickly, comfortably and without fatigue.

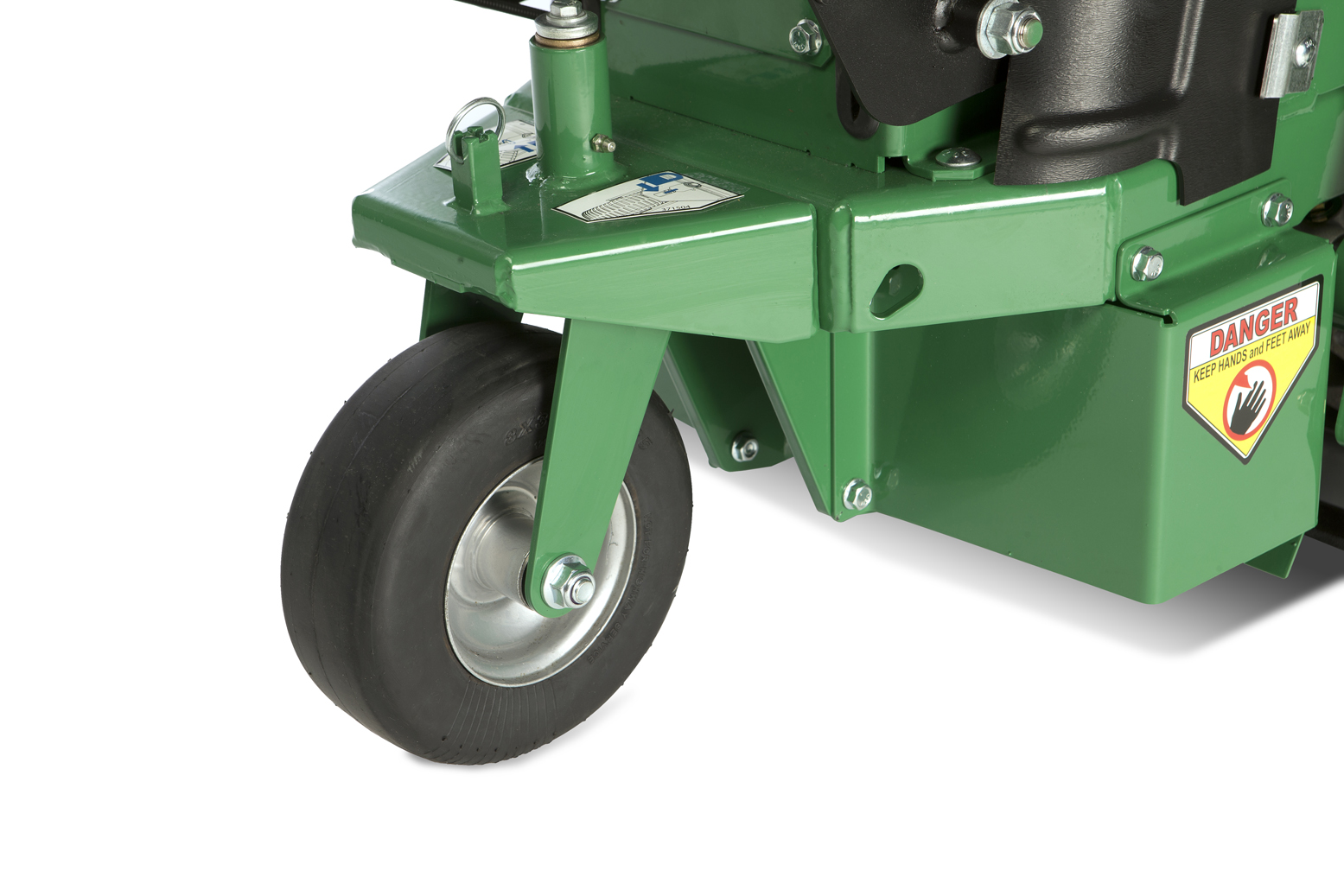

Rear Swivel Caster

Perfect for curved work and locks for straight cutting.

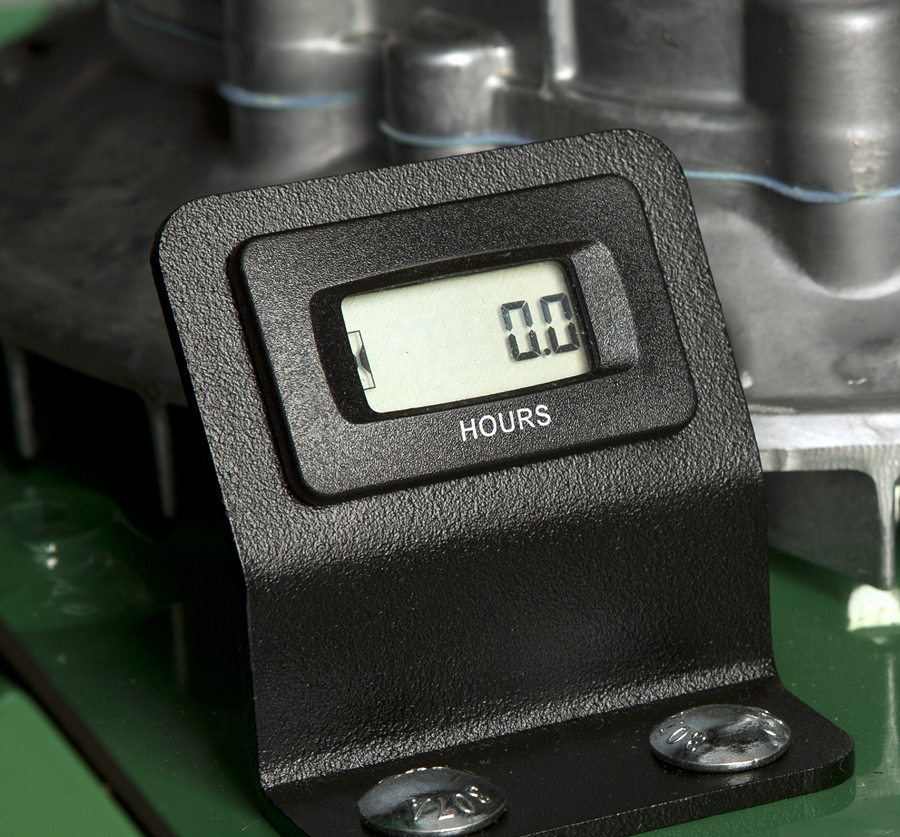

Convenient Hour Meter

Tracks hours of operation to help determine when to service the machine. Also ideal for rental stores to track machine hours of use when rented.

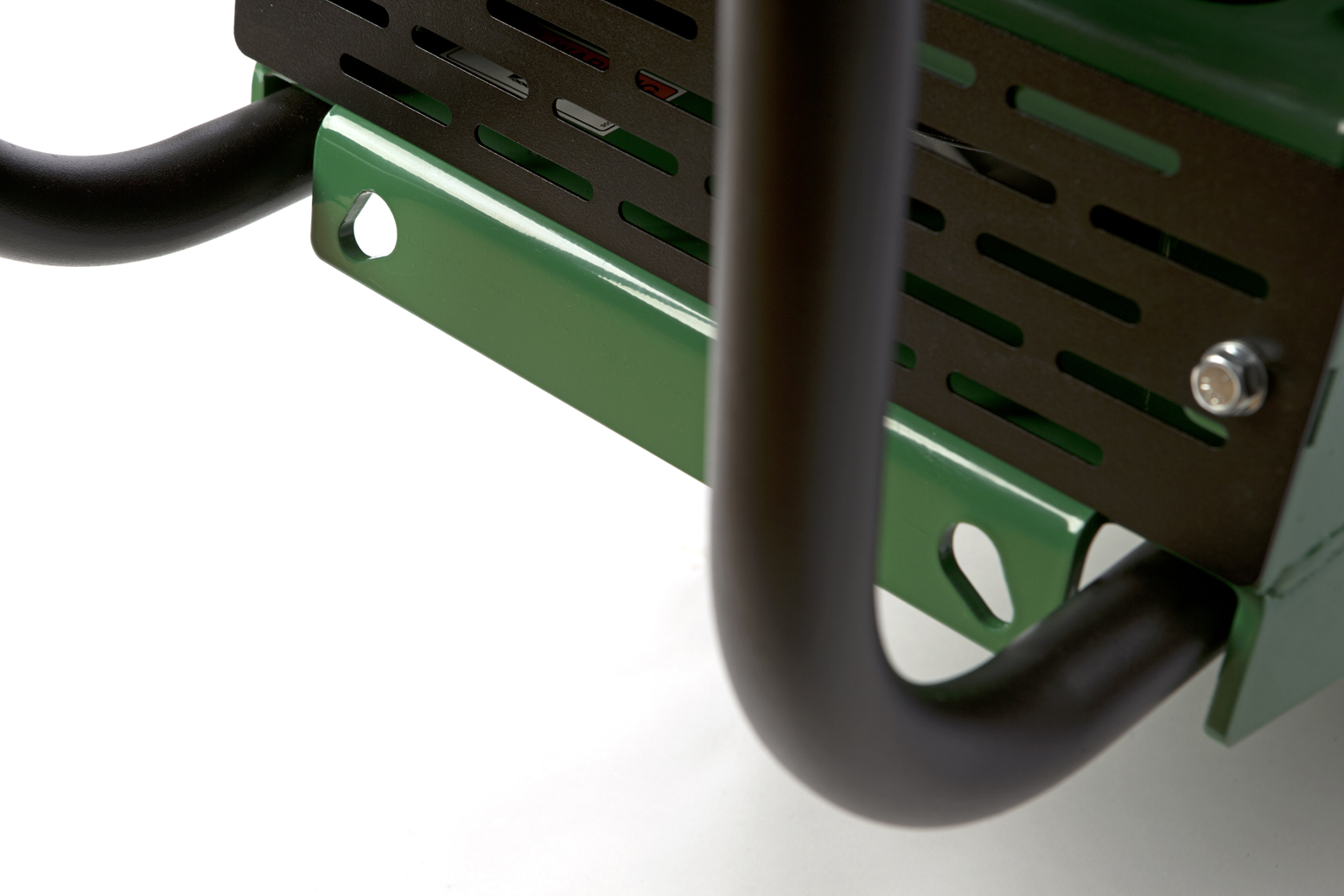

Heavy-Duty Bumper & Tear-Drop Tie Downs

Machine transport is safe and easy with a heavy-duty front bumper bar and six tie-down points, front and rear positions.

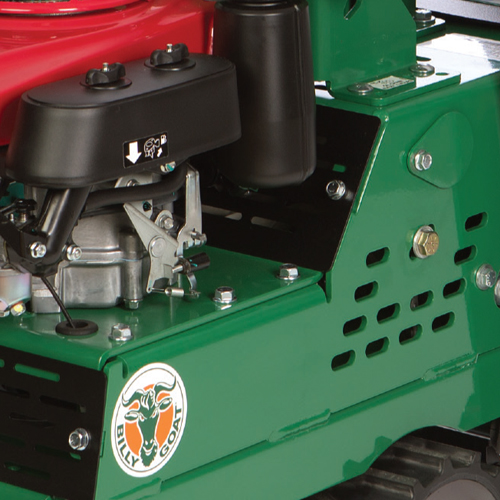

Easy Access Service Doors

Three service doors positioned at front and back of machine offer convenient access for servicing.

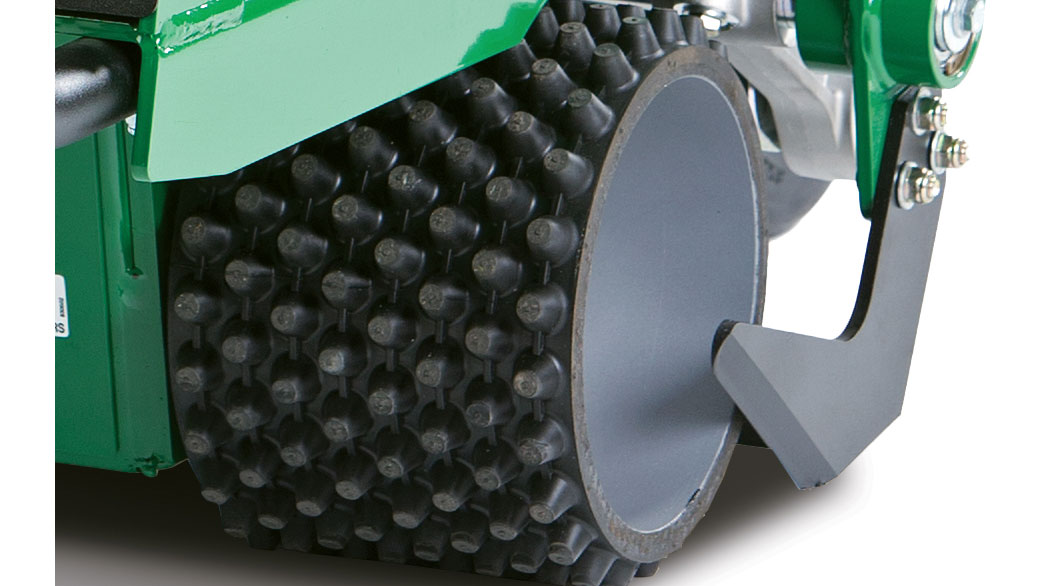

Knobby Wheels for Golf Applications

Ideal for softer touch bent grass, shallow applications.

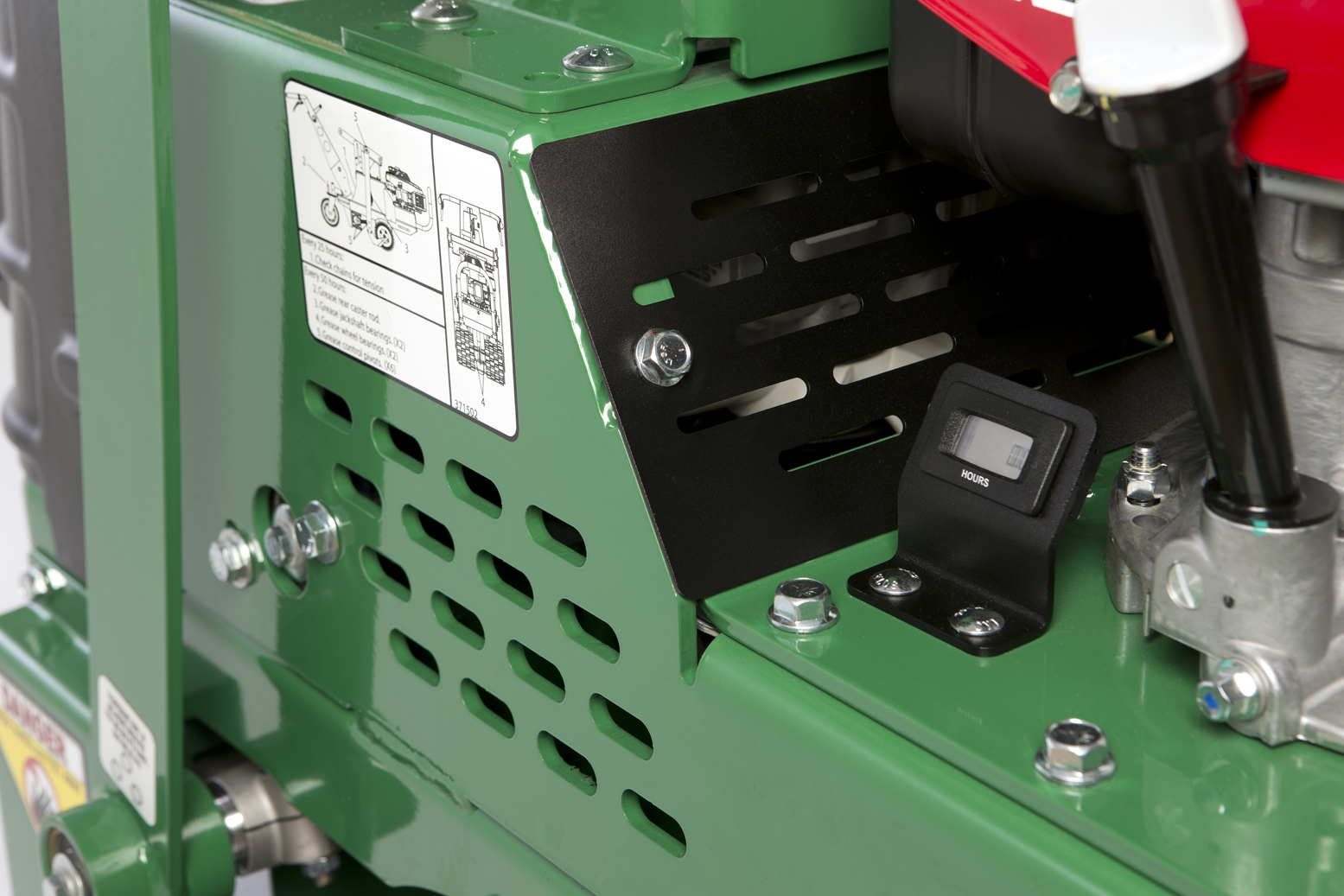

Well-Ventilated Housing

Provides increased venting for cool operation and longer transmission life.

SC240HG Hydro-Drive Sod Cutter Warranty

2-Year limited Residential, 1-Year limited Commercial Honda engine and 1-Year bumper to bumper machine warranty.

Specifications

Engine Brand

Honda GSV190

Model Number

SC240HG

Displacement (cc)

187

Transmission

Hydro-Gear^® RT310

Weight (lbs.)

403

Width (in.)

26.5

Lenth (in.)

Height (in.)

38.5

Cutting Width (in.)

Maximum Cutting Depth (in.)

2.5

Manuals

^{* Power rated by engine manufacturer.
** Compliant in California.}

Engine Brand

Kohler® COMMAND PRO CV200

Model Number

SC240KG

Displacement (cc)

200

Transmission

Hydro-Gear^® RT310

Weight (lbs.)

414

Width (in.)

26.5

Lenth (in.)

Height (in.)

38.5

Cutting Width (in.)

Maximum Cutting Depth (in.)

2.5

Manuals

^{* Power rated by engine manufacturer.
** Compliant in California.}

Engine Brand

Honda GSV190

Kohler® COMMAND PRO CV200

Model Number

SC240HG

SC240KG

Displacement (cc)

187

200

Transmission

Hydro-Gear^® RT310

Weight (lbs.)

403

414

Width (in.)

26.5

Lenth (in.)

Height (in.)

38.5

Cutting Width (in.)

Maximum Cutting Depth (in.)

2.5

^{* Power rated by engine manufacturer.
** Compliant in California.}
