Next Gen DL1402VE / DL1802 Ser.

Next Gen DL1402VE / DL1802 Ser.

DL1402 / DL1802

These units are ideal for mid to large property managers, contractors and mid-sized municipal applications. These heavy-duty units offer an all-new discharge chute for rugged wear and long life productivity. They feature a dual shredding 16” diameter armor plate impeller with Piranha™ blade that reduces debris up to 12:1 and maximizes trailer loading across multiple properties before dumping, saving you time and dump fees. This unit has CustomFit™ features that allow you to customize the loader to your truck. (DL1802VE pictured.)

Features

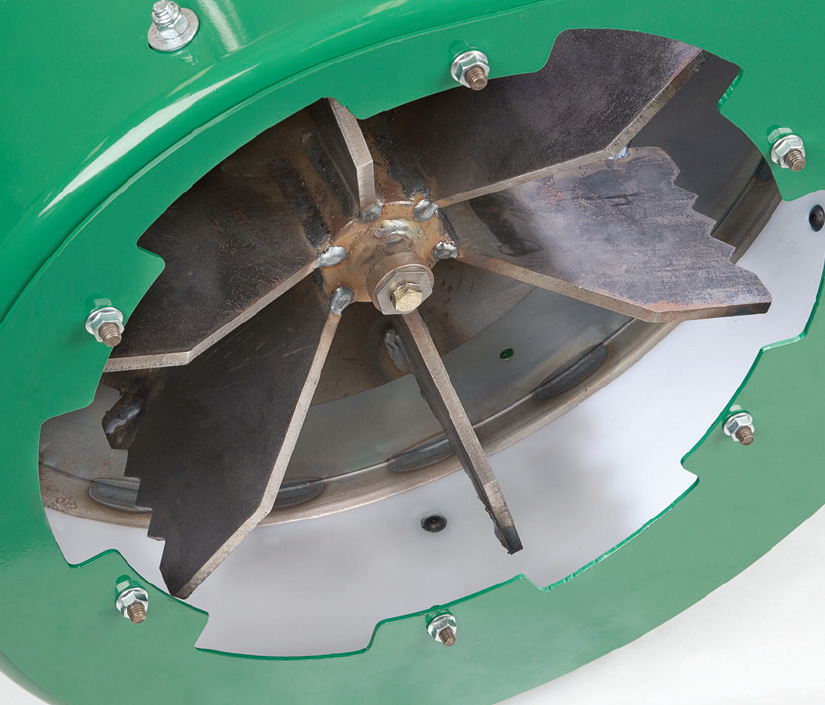

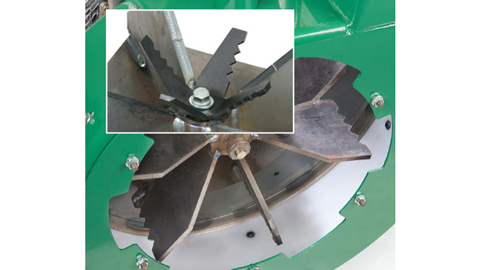

Dual Shredding System with Piranha Blade™

For extra shredding. Serrated blades with cutting points for maximum truck loading and debris reduction up to 12:1.

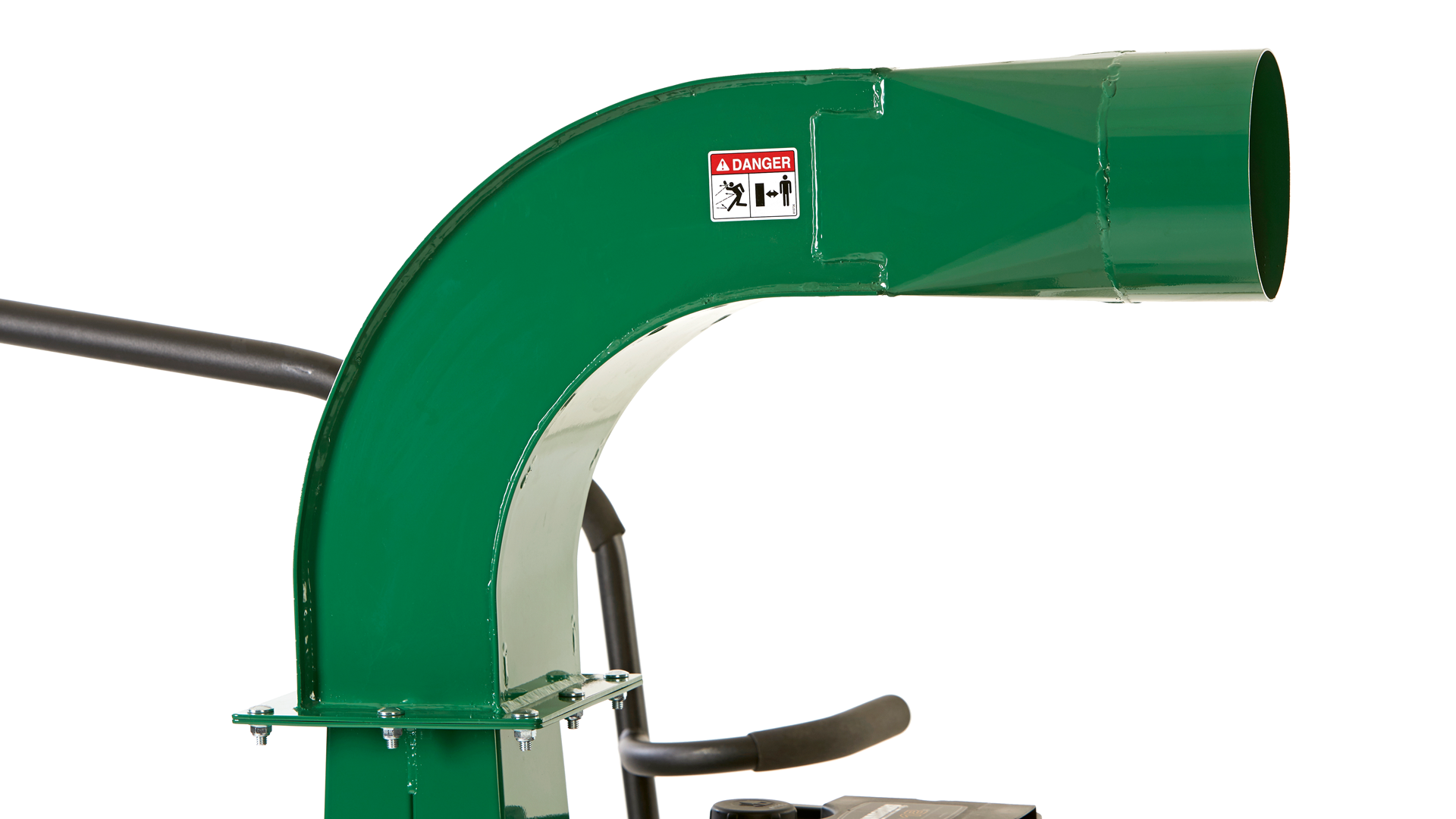

Square Discharge Elbow

This all-new feature offers increased durability, longer life and ease of service

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Vanguard
Model Number
DL1402VE
Gross Horsepower (HP)
14
Hose Dimensions
10 x 10 clear urethane
Impeller Cutting Points
8
Number of Blades
4
Displacement (cc)
408
CFM
3700
Discharge
6” Square
Starter
E-Start
Weight (lbs.)
280
Length (in.)
31
Width (in.)
27
Height (in.)
48
Manuals
Engine Brand
Vanguard
Model Number
DL1802V
Gross Horsepower (HP)
18
Hose Dimensions
10 x 10 clear urethane
Impeller Cutting Points
8
Number of Blades
4
Displacement (cc)
570
CFM
3700
Discharge
6” Square
Starter
Pull Start
Weight (lbs.)
290
Length (in.)
31
Width (in.)
27
Height (in.)
48
Manuals
Engine Brand
Vanguard
Model Number
DL1802VE
Gross Horsepower (HP)
18
Hose Dimensions
10 x 10 clear urethane
Impeller Cutting Points
8
Number of Blades
4
Displacement (cc)
570
CFM
3700
Discharge
6” Square
Starter
E-Start
Weight (lbs.)
290
Length (in.)
31
Width (in.)
27
Height (in.)
48
Manuals
Engine Brand
Vanguard
Vanguard
Vanguard
Model Number
DL1802V
DL1402VE
DL1802V
Gross Horsepower (HP)
18
14
18
Hose Dimensions
10 x 10 clear urethane
10 x 10 clear urethane
10 x 10 clear urethane
Impeller Cutting Points
8
8
8
Number of Blades
4
4
4
Displacement (cc)
570
408
570
CFM
3700
3700
3700
Discharge
6” Square
6” Square
6” Square
Starter
Pull Start
E-Start
Pull Start
Weight (lbs.)
290
280
290
Length (in.)
31
31
31
Width (in.)
27
27
27
Height (in.)
48
48
48

Accessories

CustomFit™ Extension Kit (DL1302, DL1402 & DL1802)

Part #: 812123

Extends discharge height by 15 5/8”. (Cannot be used with rotational kit.)

CustomFit™ Hanger Kit

Part #: 812260

Easy to install, locks in place with two bolts.

Installation Instructions >

CustomFit™ Swing Away Hitch

Part #: SAH34

Mountable to a class III trailer hitch and locks at 90 and 180 degrees so the unit can be swung away for easy dumping.

Installation Instructions >

Optional Exhaust Deflector Kit

Part #: 812295

Deflects debris for most efficient loading.

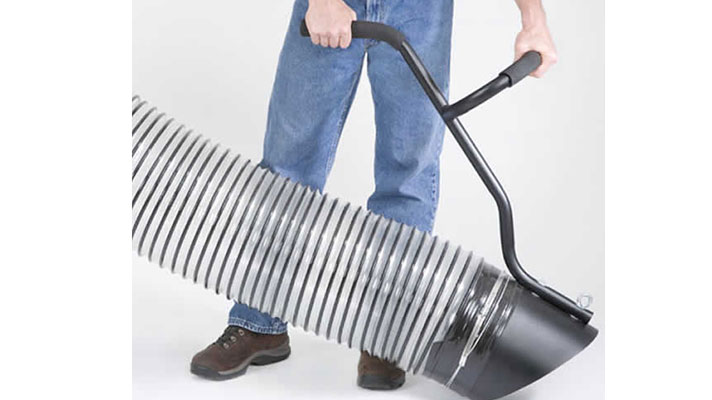

Heavy-Duty Clear Urethane Helical Replacement Hose

Part #: 791033

Urethane portion only.

CustomFit™ Receiver Hitch

Part #: 812601

Simple to install and remove and easily mounts to your truck for use with Billy Goat DL13-18 loaders.

Optional CustomFit Discharge Hose Kit

Part #: 812300

Extends discharge by 5’ for customization to your truck or trailer. Urethane hose kit.
