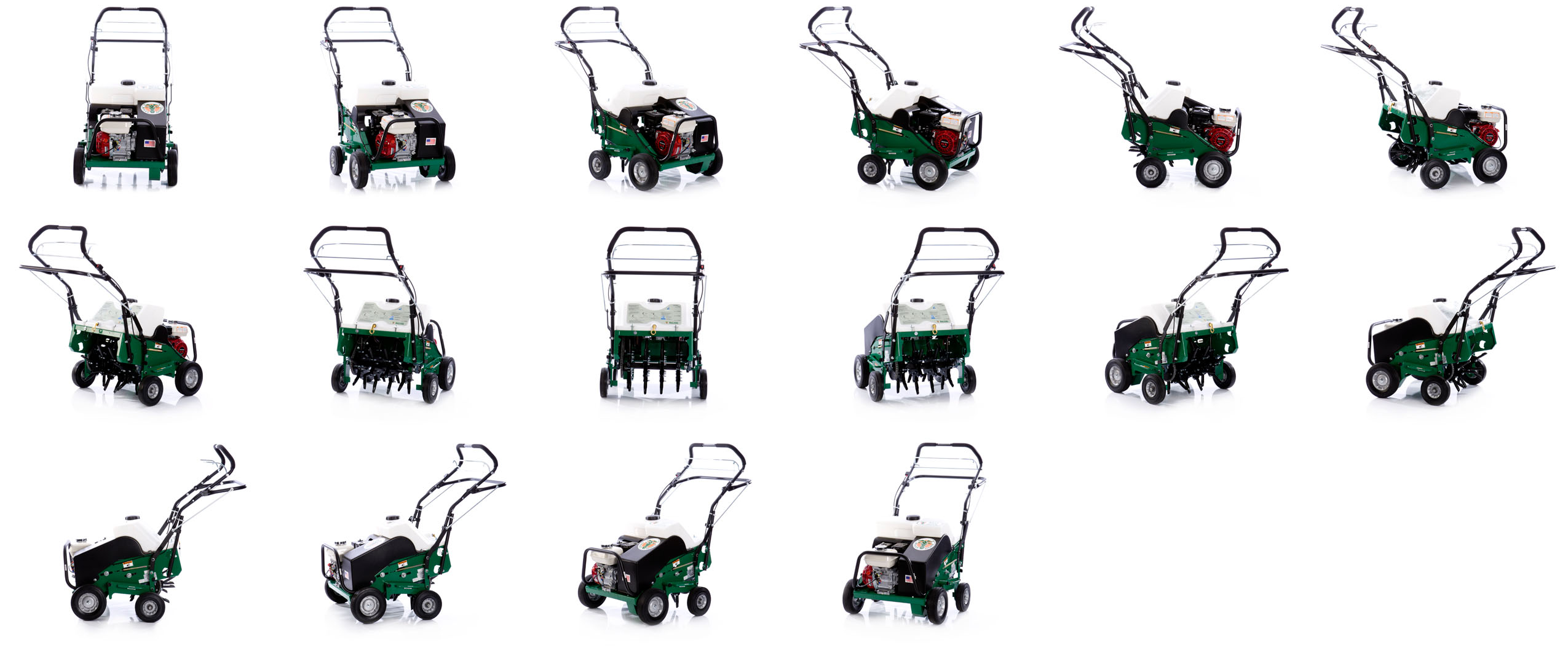

AE401H / AE403V

AE401H / AE403V

Core Aerator: 19” Wide

This unit completely eliminates the conventional and cumbersome center wheel and center drum designs found on other units, which are prone to wear, vibration and damage. Billy Goat’s outboard drive wheels also eliminate center wheel slip and damage from ramp loading with the tines engaged.

Additionally, the AE401H and the AE403V also eliminates bulky steel weights, in favor of a simple to use water weight positioned directly over the tines for better aeration depth (full tank = 50 lbs.). The unit features the industry’s softest tine engagement and exclusive Lift N Lock™ disengagement for best in class comfort and productivity. After use and during transport, tilt up serviceability, removable tine stars, and Fold-n-Go™ handles, and easy adjust drive chains make service and transport convenient and simple.

Features

Industry’s Softest Tine Engagement and Exclusive Lift-n-Lock™ Disengagement

For best in class comfort, turning and productivity. Proprietary water tank eliminates bulky side weights.

Outboard Drive Wheels

Eliminate both center wheel slip and damage from ramp loading with the tines engaged.

Fold-n-Go™ Handles

Are excellent for transport and storage and fold without tools.

Single Bolt Tine Fastener

Rock solid and easy to service.

AE Warranty

1-year machine

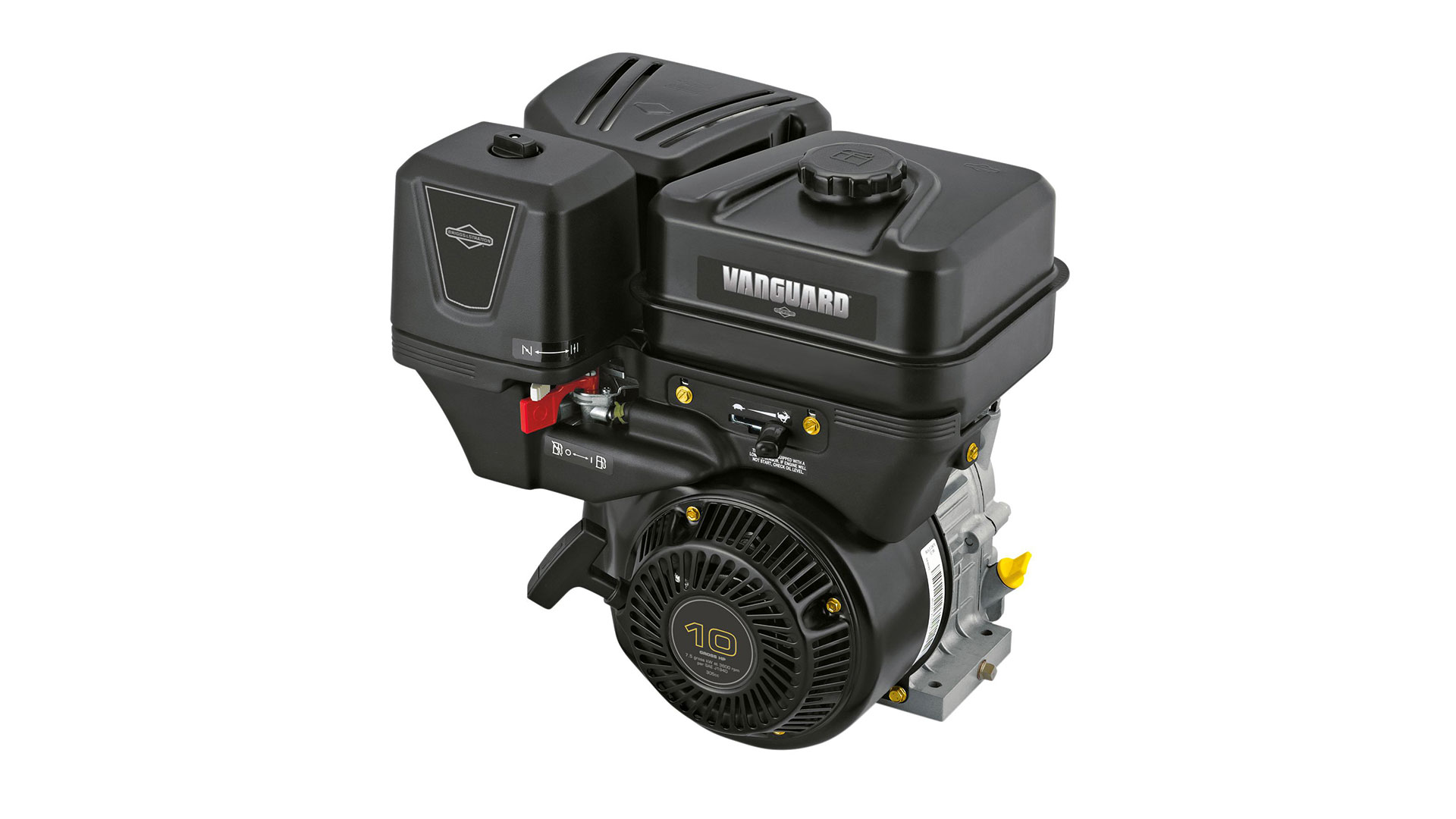

Single-Cylinder Vanguard® Engine Advantage (PL2501SPV)

  • Cyclonic air filtration extends air filter replacement intervals up to 600 hours
  • Advanced oil management system extends oil change intervals up to 200 hours
  • TransportGuard® eliminates oil/fuel dilution during transport
  • Cold-weather starting offers easy start down to -20 degrees
  • Easy fill oil port and dipstick make checking and filling simple

Specifications

At least one product must be displayed. Please select another option to remove this product

Model
AE403V
Displacement (cc)
169
Wheel Type
Semi-pneumatic
Coring Tines
.625 x 3.5
Tines
24
Tine Pattern
4.75 x 7
Weight (lbs.)
240
Length (in.)
57
Height (in.)
52.5
Width (in.)
29
Engine Brand
Vanguard
Model
AE401H
AE403V
Displacement (cc)
118
169
Wheel Type
Semi-pneumatic
Semi-pneumatic
Coring Tines
.625 x 3.5
.625 x 3.5
Tines
24
24
Tine Pattern
4.75 x 7
4.75 x 7
Weight (lbs.)
242
240
Length (in.)
57
57
Height (in.)
52.5
52.5
Width (in.)
29
29
Engine Brand
Honda
Vanguard

Accessories

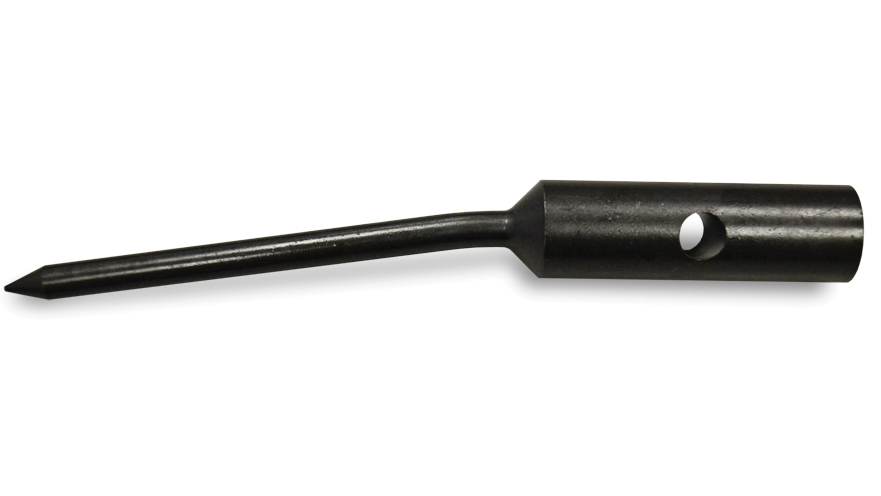

Optional Solid Steel Spikes

Part #: 360394-S

Excellent for improving drainage or for other no-plug applications. Sold as a set with 24 spikes per set.

Testimonials

After two seasons of renting aerators from Home Depot, I saved enough money to buy my own. The drum style machines that I had rented for almost 24 work days were terrible, back-breaking machines that felt like chasing a bull across every property I aerated. After a ton of research and price comparisons, I ultimately went with the PL2501SPH. While it is slightly more expensive than a base machine, it is well worth the investment. Last spring alone, I made equal the cost of the machine in just residential work. The transmission is fantastic, full forward and reverse. The best part is, my back is not broken after a day's work. The only downside is the price of replacement tines, they are a pretty penny... I’m thoroughly impressed with my new machine and The Billy Goat brand.

--Jeff D; Salt Lake City, UT



The Billy Goat AE1300H is the best machine on the market, hands down. Not only does it pull consistetnly deep cores, but it pulls TONS of them. The reciprocating tines and variable speed mean you can pull almost an infinite amount of cores, utilizing it as a tiller for seedbed prep. The durability of the machine is second to none, as I have had it for about 5 years and it has seen around 500 hours of use! Would not buy any other aerator on the market. Drum units were made obsolete the second this machine came onto the market. I used to be against aerating because of the lack of results drum units producted, but this machine is a game changer.

-- Drew D, St. Joseph, MO

"After years and years of using the cheap products, like the pull behind a mower type spike aerators and thatcher’s that did an okay job, I’ve found it pays off to have the right product. The Billy Goat AE401H Aerator and the CR550HC Compact Power Rake have given me great results. Thanks a lot for your products. I appreciate it!

- Alan R, Akron, IN
