SG1301 ser Stump Grinders

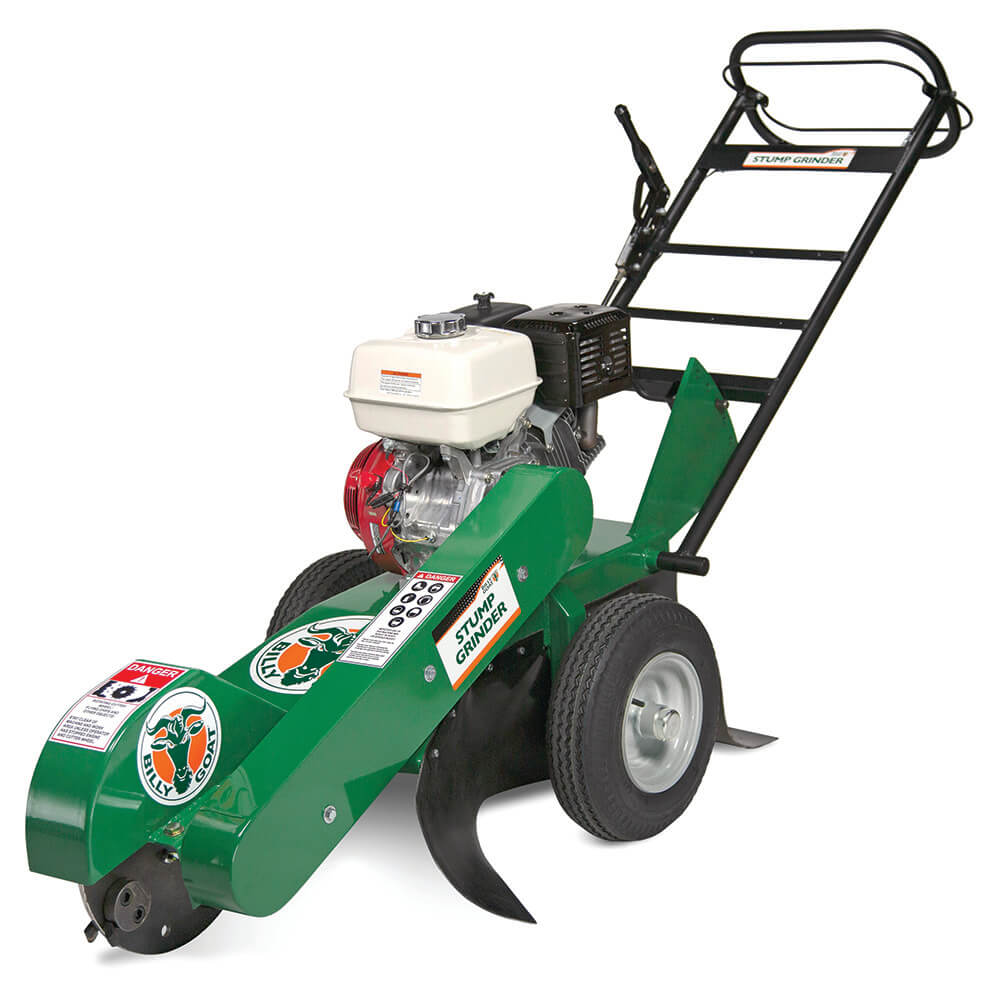

SG1301 ser. Walk-Behind Stump Grinder offers a host of category-leading features such as the ability to grind from 24 in. above grade to 16 in. below grade. The unit features wide chip guarding, a long cutter head reach, an extended handle for better swing leverage when grinding, and a double-welded cutter head guard as well as reinforced frame. The machine is well balanced over the axle and easy to swing while in operation and transporting to / from the job site. The machine is simple to load via ramps onto a pickup truck or trailer and is powered by a Honda engine driving a 15.5", 35 lb. cutting wheel with replaceable carbide teeth for the ultimate in efficient stump removal.
Features

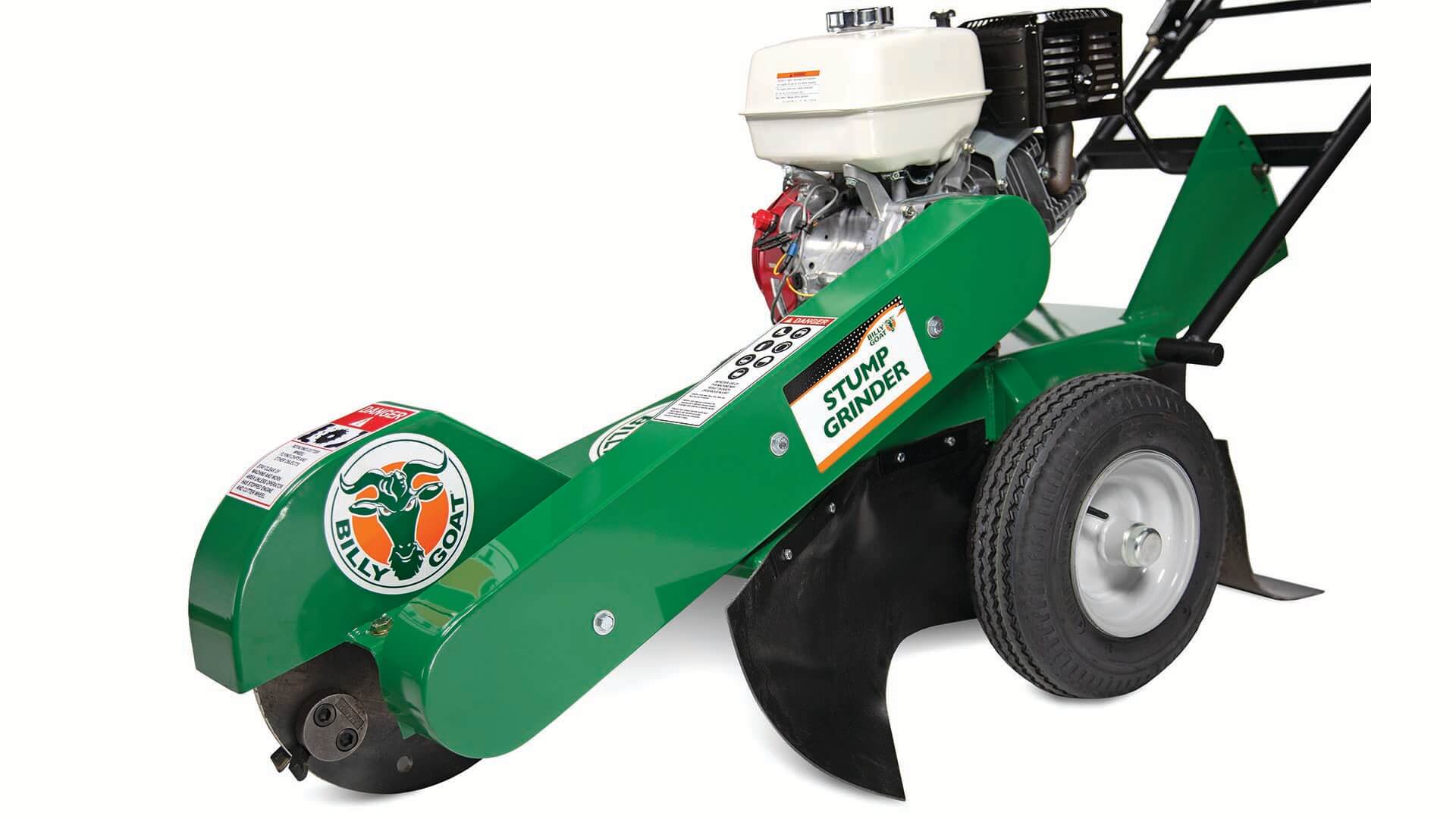

EXTENDED ANGLED DOWN FRAME
Longer frame is angled toward the cutter head for longer reach and better grinding versus others on the market.

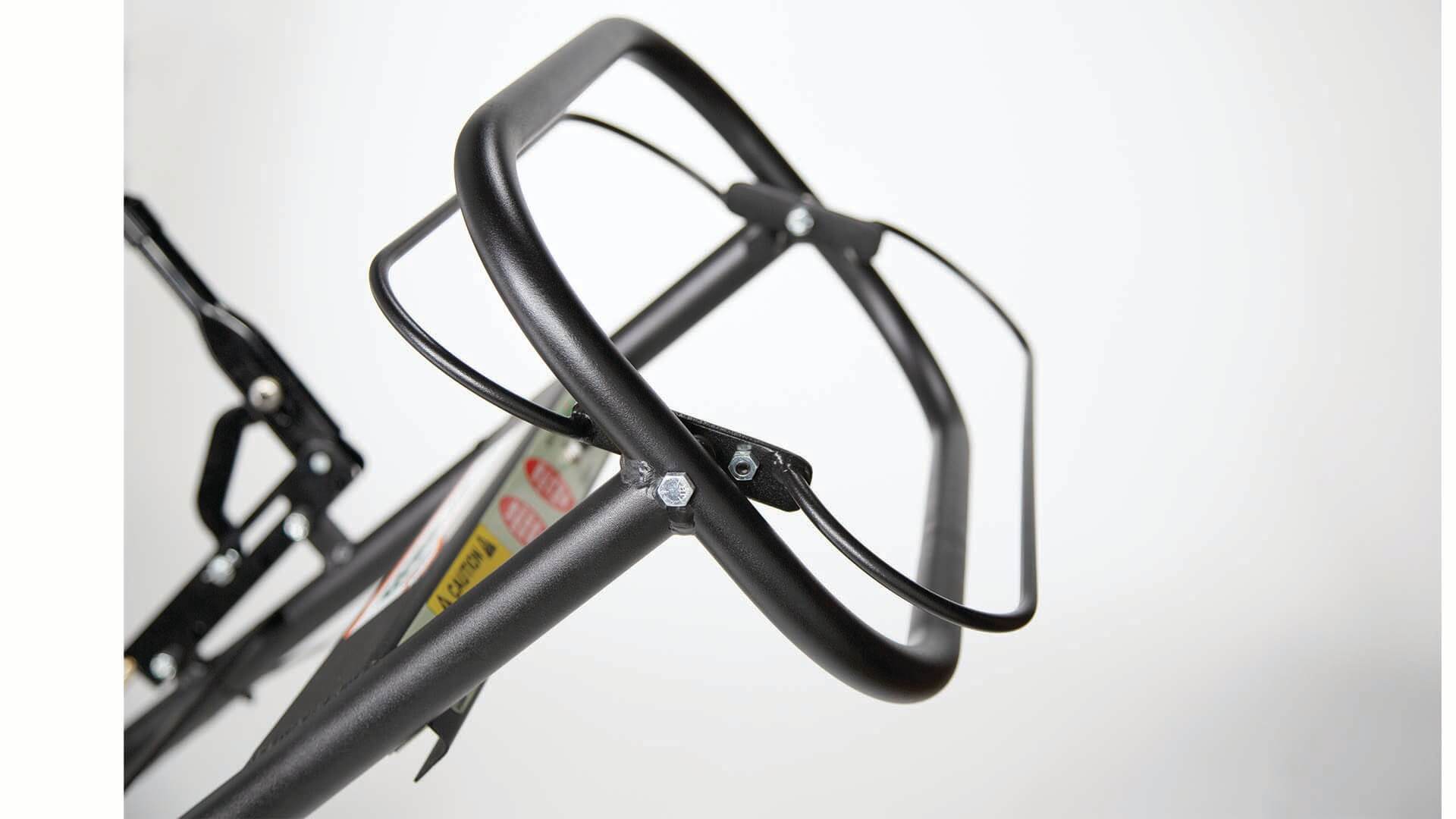

DUAL HANDLE WITH LONG REACH
Dual hand holds and bale access make cutter head activation easy, regardless of handle position at various cutting depths. Long handle affords the operator better leverage while working the stump.

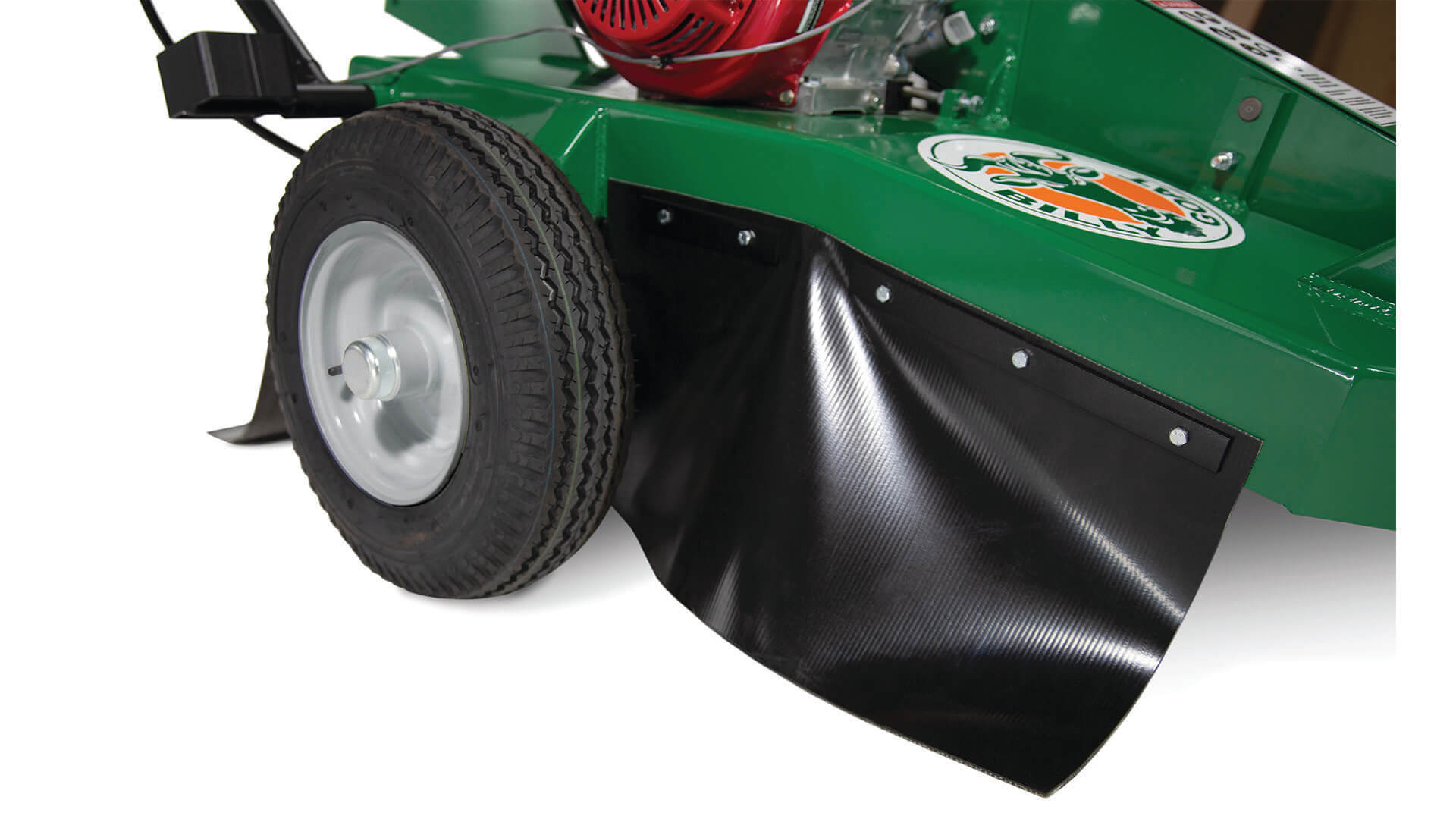

CHIP GUARDING
Side and rear chip curtains offer the operator more protection from wood chips.

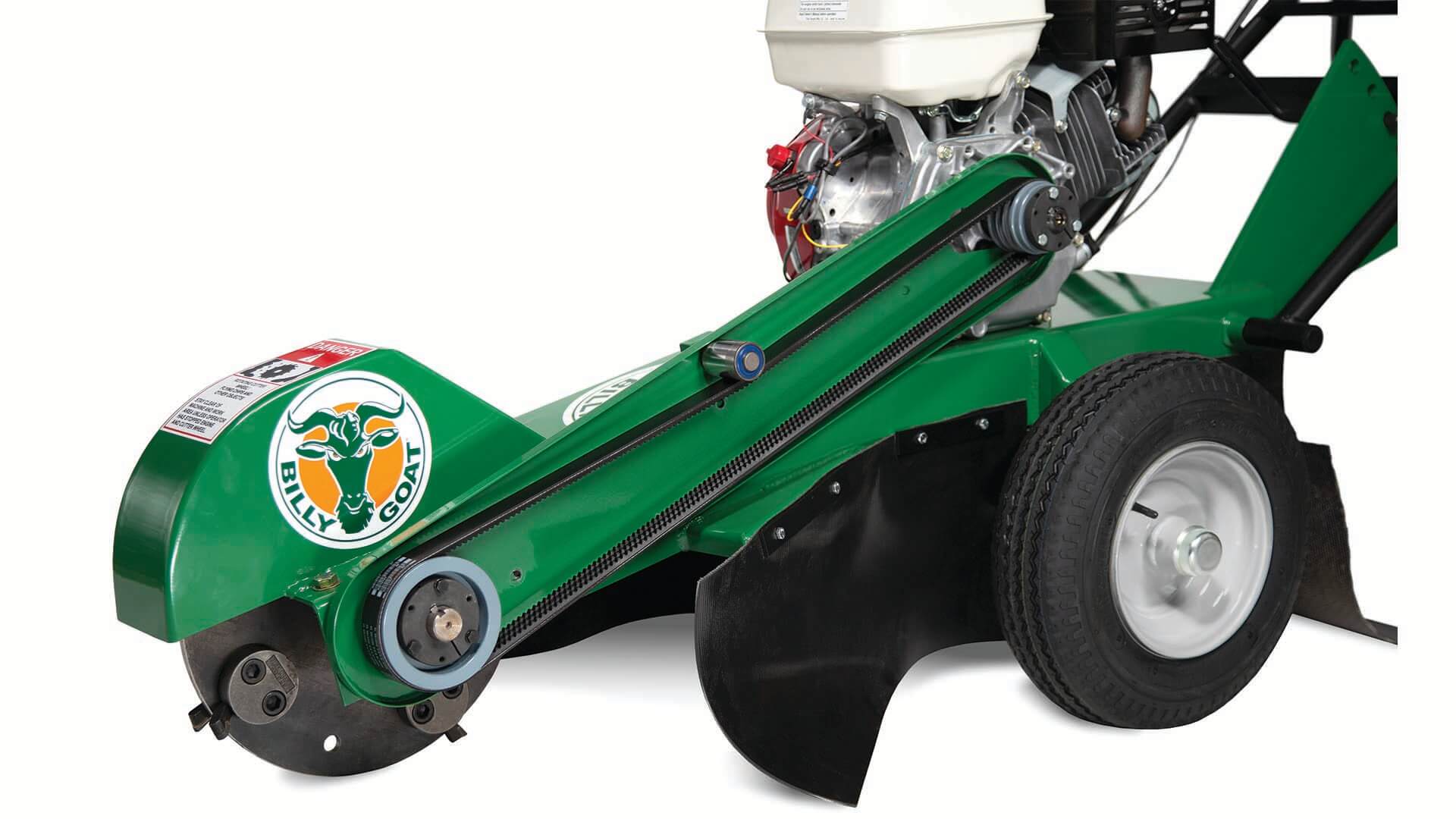

BELT SPAN & BELT GUARD
A longer belt span with durable belt guard increases belt life and extends service.

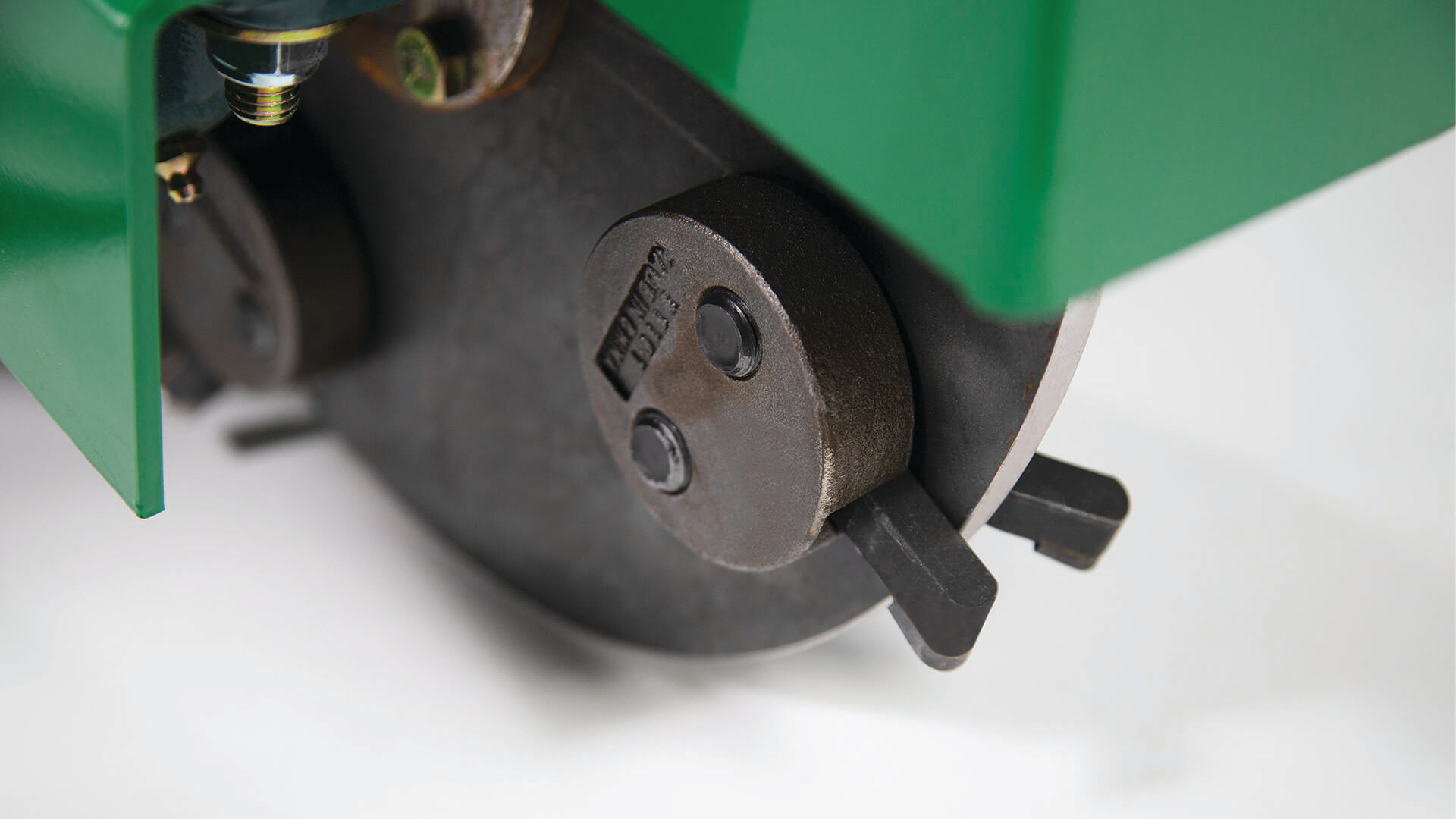

EIGHT CARBIDE CUTTING TEETH
Encased in stoutly-designed holders for both added durability and ease of service replacements. Optional Green Tooth Kit (Part No. 80107904)

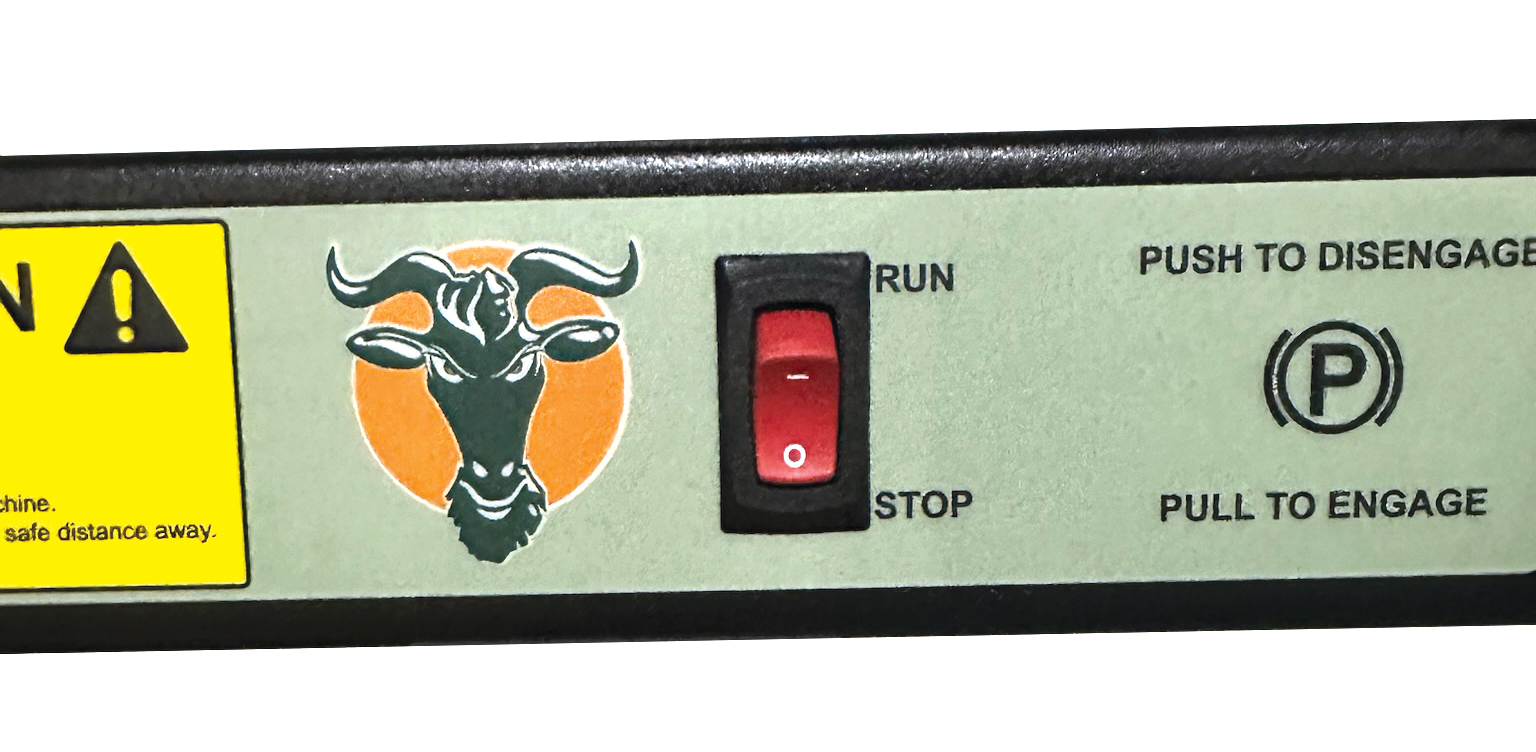

EMERGENCY STOP SWITCH
adds safety.

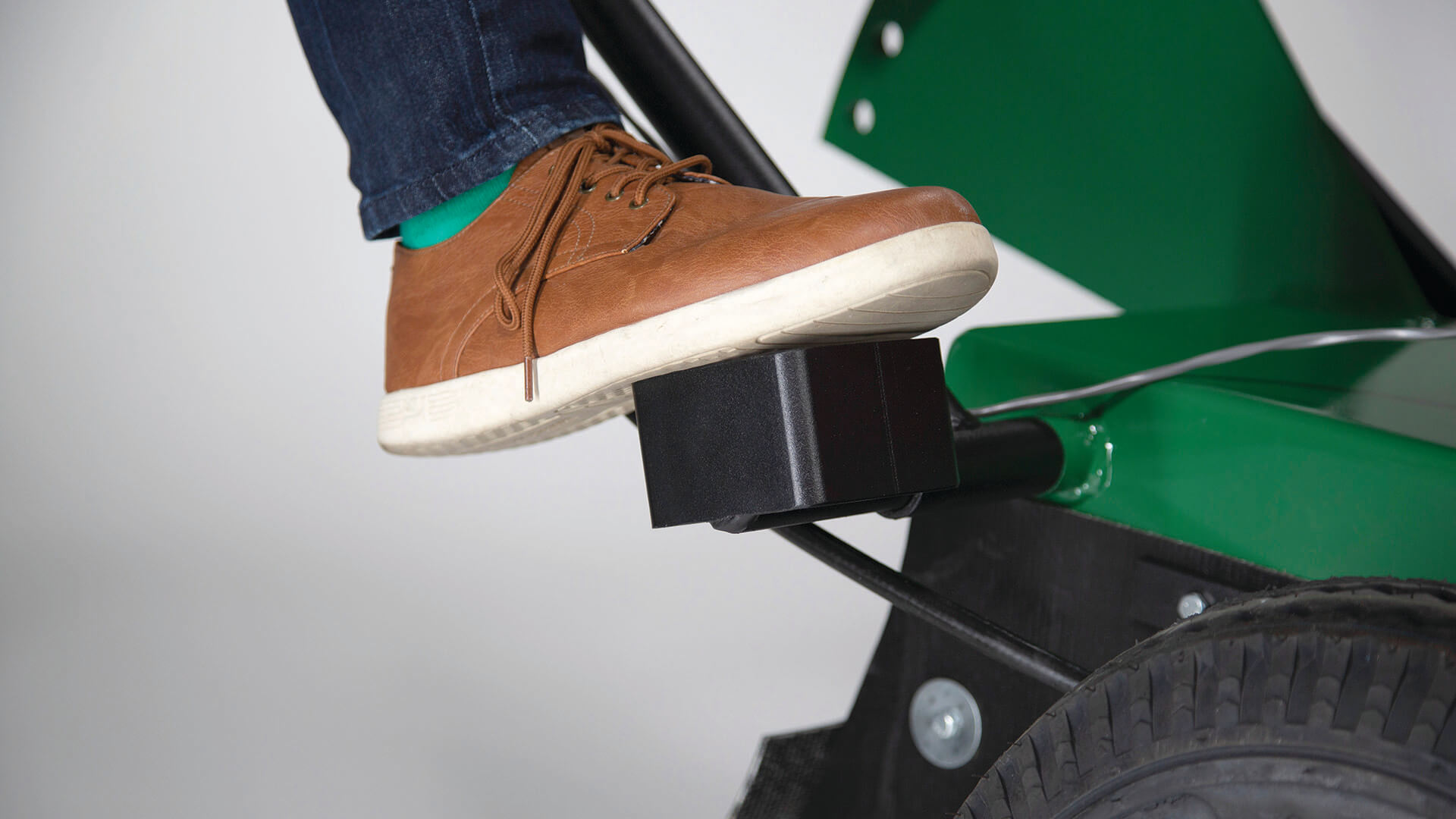

FOOT MOUNT
Provides leverage for ease of starting up the unit.

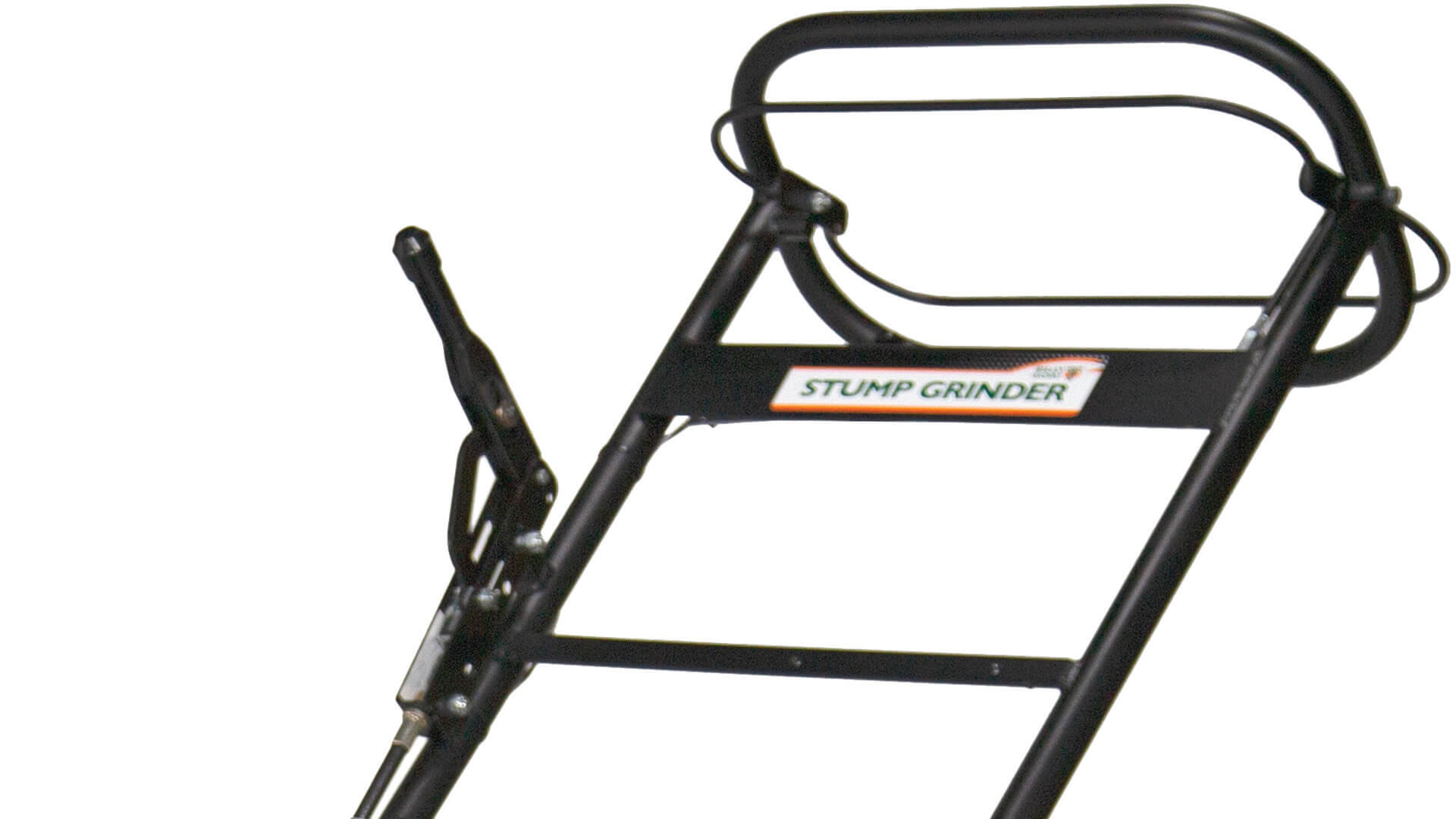

BRAKE RELEASE LEVER
Sets and releases brake for safe transport and operation.

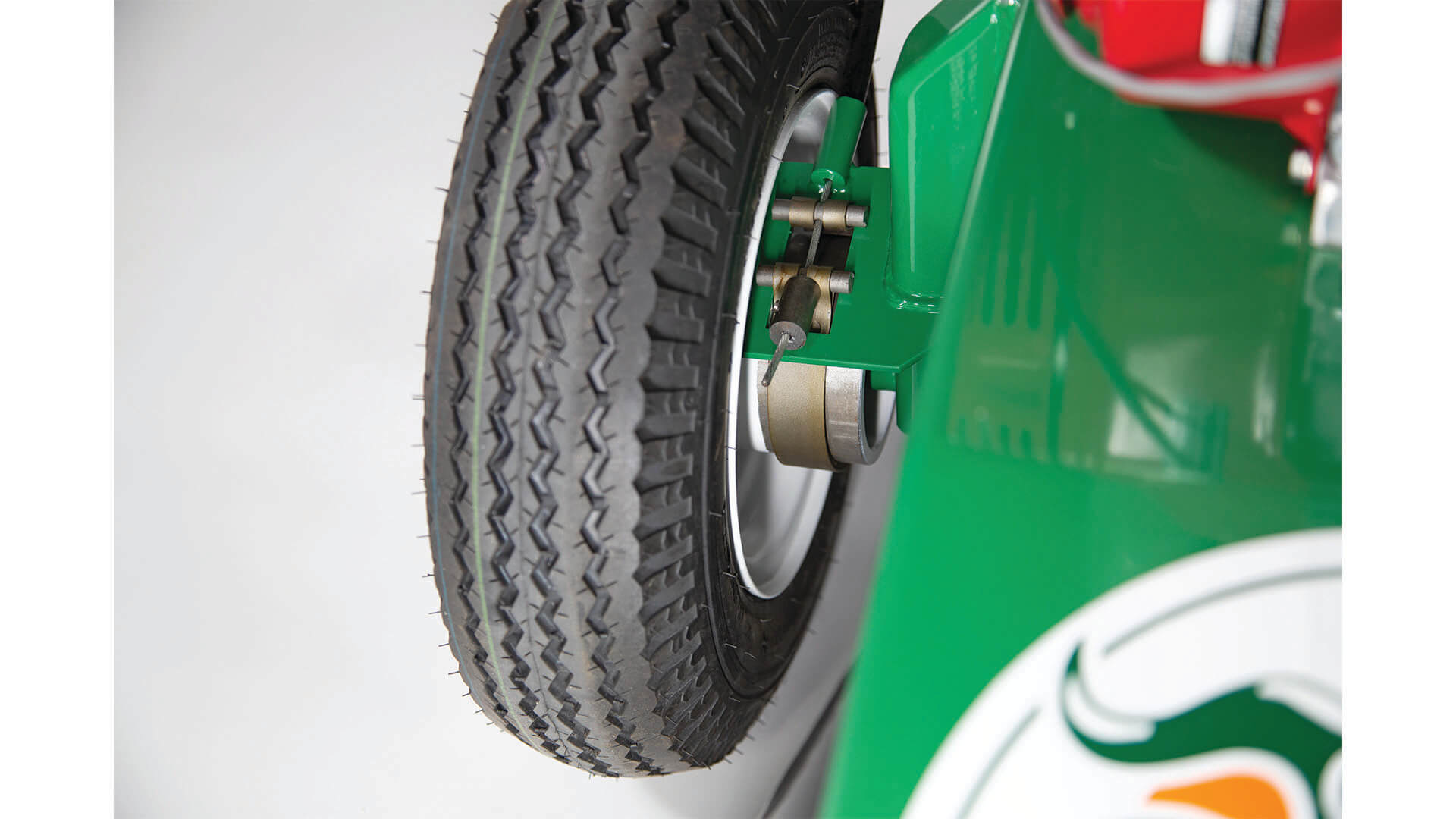

LOCKING DRUM BRAKE
Keeps the unit in place while sweeping the cutting head back and forth across the stump.

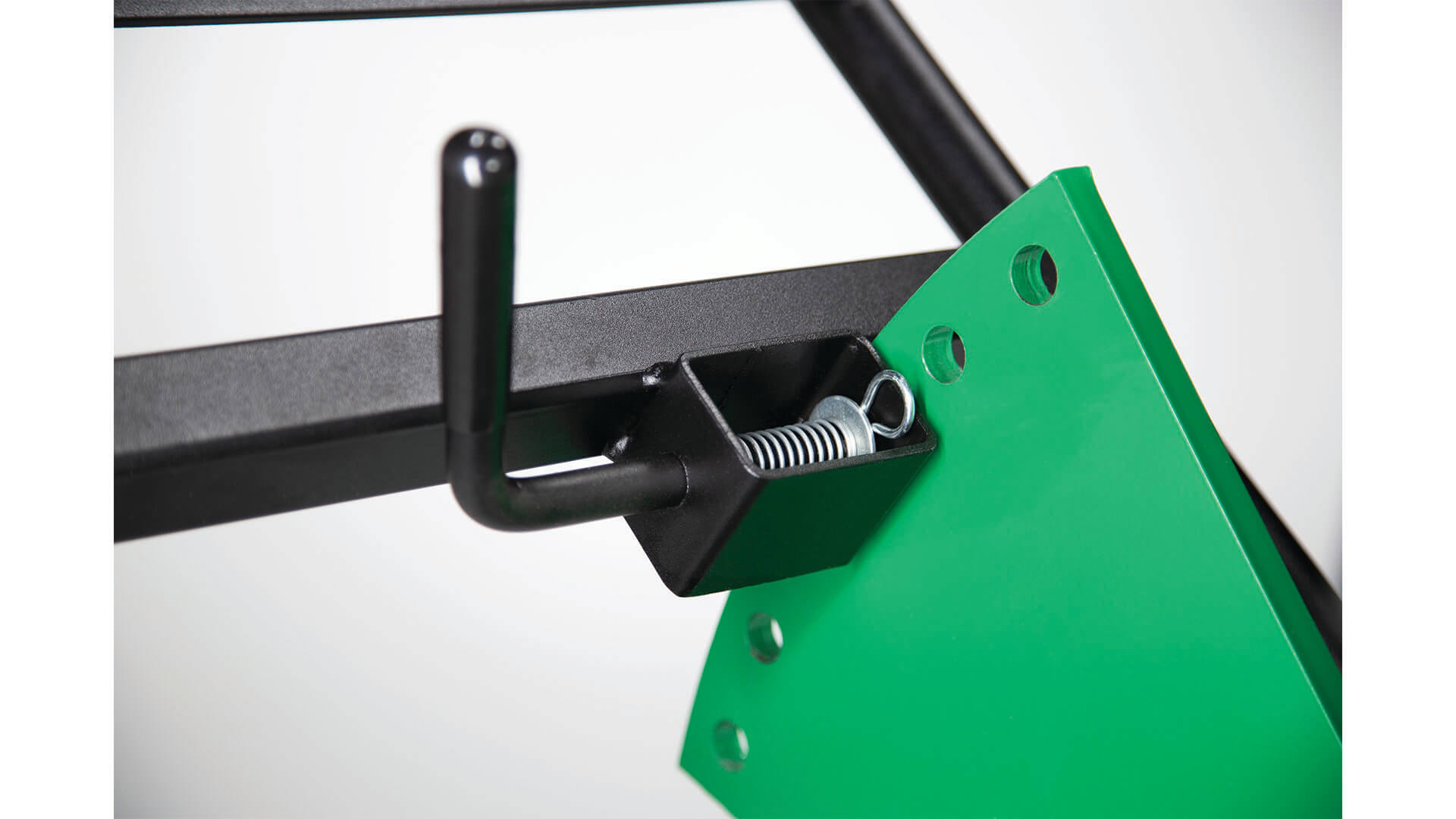

HANDLE ADJUST LEVER
Sets the handle height for maximum stability and control.
Specifications
| SG1301H | SG1301HGT | |
| Engine Displacement (cc) | 389 | 389 |
| Engine Brand | Honda | Honda |
| Starter Type | Pull | Pull |
| Drive | Push | Push |
| Disc RPM with Engine at 2,500 RPM | 1,575 | 1,575 |
| Cutter Disc Diameter | 14" (35.56 cm) | 14" (35.56 cm) |
| Cutting Capacity | 24" (60.96 cm) Above grade/ 16" (40.64 cm) Below grade | 24" (60.96 cm) Above grade / 16" (40.64 cm) Below grade |
| Teeth Type | 8 Tungsten carbide | 8 Tungsten carbide Greenteeth® |
| Weight | 330 lbs (150 kg) | 330 lbs (150 kg) |
| Length | 85" – 100.5" (215.9-255.3 cm) | 85" – 100.5" (215.9-255.3 cm) |
| Width | 30.06" (76.6 cm) | 30.06" (76.6 cm) |
| Height | 37.5 – 59" (95.3 -149.9 cm) | 37.5 – 59" (95.3 -149.9 cm) |
| Wheels | 4.8" x 8" (12.19 cm x 20.32 cm) pneumatic | 4.8" x 8" (12.19 cm x 20.32 cm) pneumatic |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice. "
Accessories

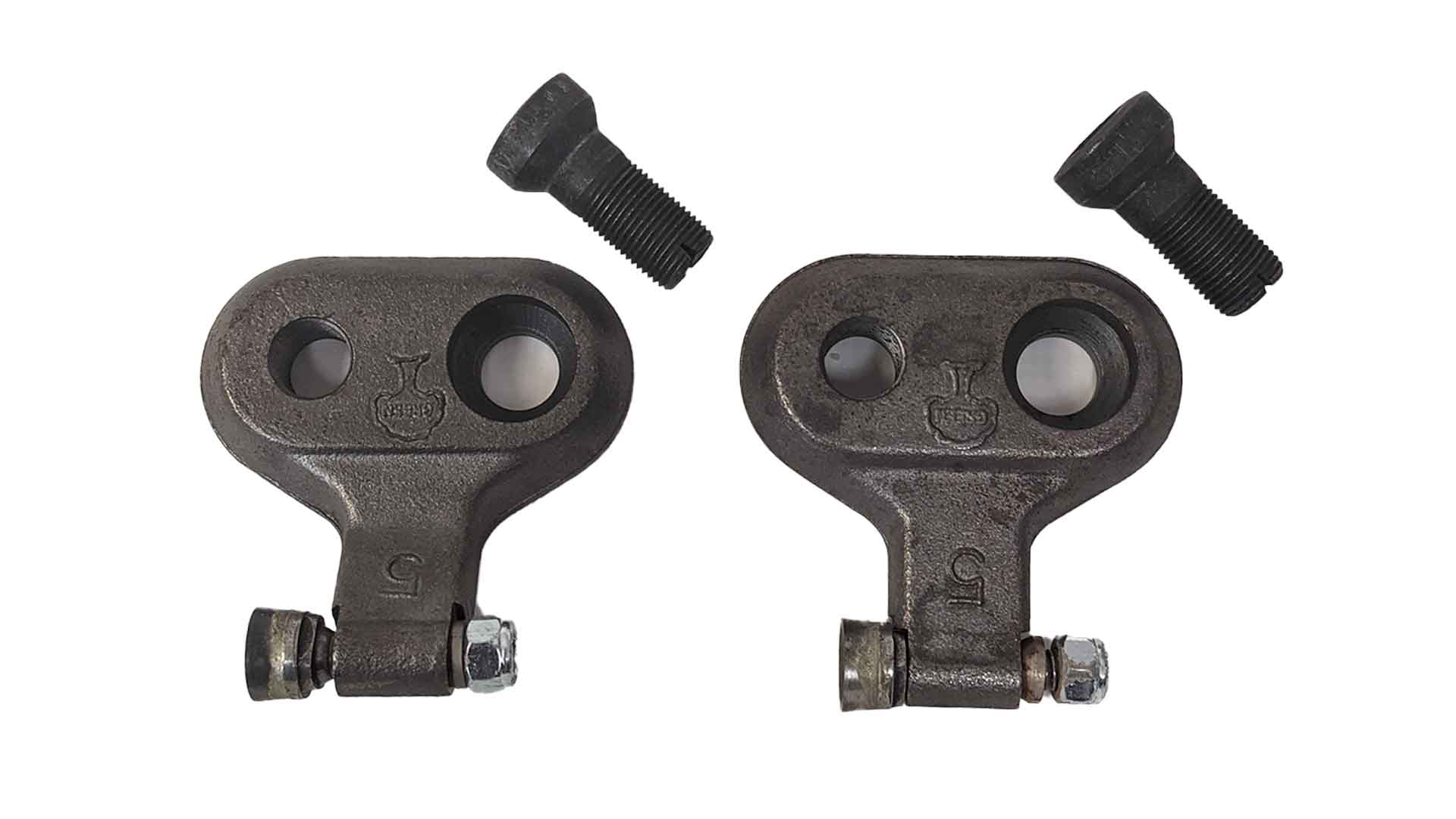

GREENTEETH® TOOTH KIT
Part #: 80107904
Greenteeth® innovative tooth and pocket system allows for each tooth to be turned up to 3 times before it needs replacement and also enables tooth replacement without removing the pocket. The concave of the tooth is a bit more shallow, making it a better choice for Rocky soil conditions. The pockets are designed to fit on any standard wheel.
