PLUGR® PL2500 ser Reciprocating Hydro Aerator
For the best combination of productivity (up to 42,550 sq.ft. of aeration per hour in a single pass), operator comfort, superior aeration results (with core depths to 2.75”), variable hole density, in-ground turning, and remarkably low maintenance in its class, the PL2500 Ser. PLUGR offers an estimated 30+ percent greater return vs. traditional drum aerators. Best in class controls offer the same intuitive, variable speed fingertip hydro-drive innovation as found on the Billy Goat family of hydro-drive products. Proprietary EZ Drop™ tine system has a one-step tine engagement lever from the handle that permits the operator to pass over obstacles in the aeration path for uninterrupted aeration.
Features

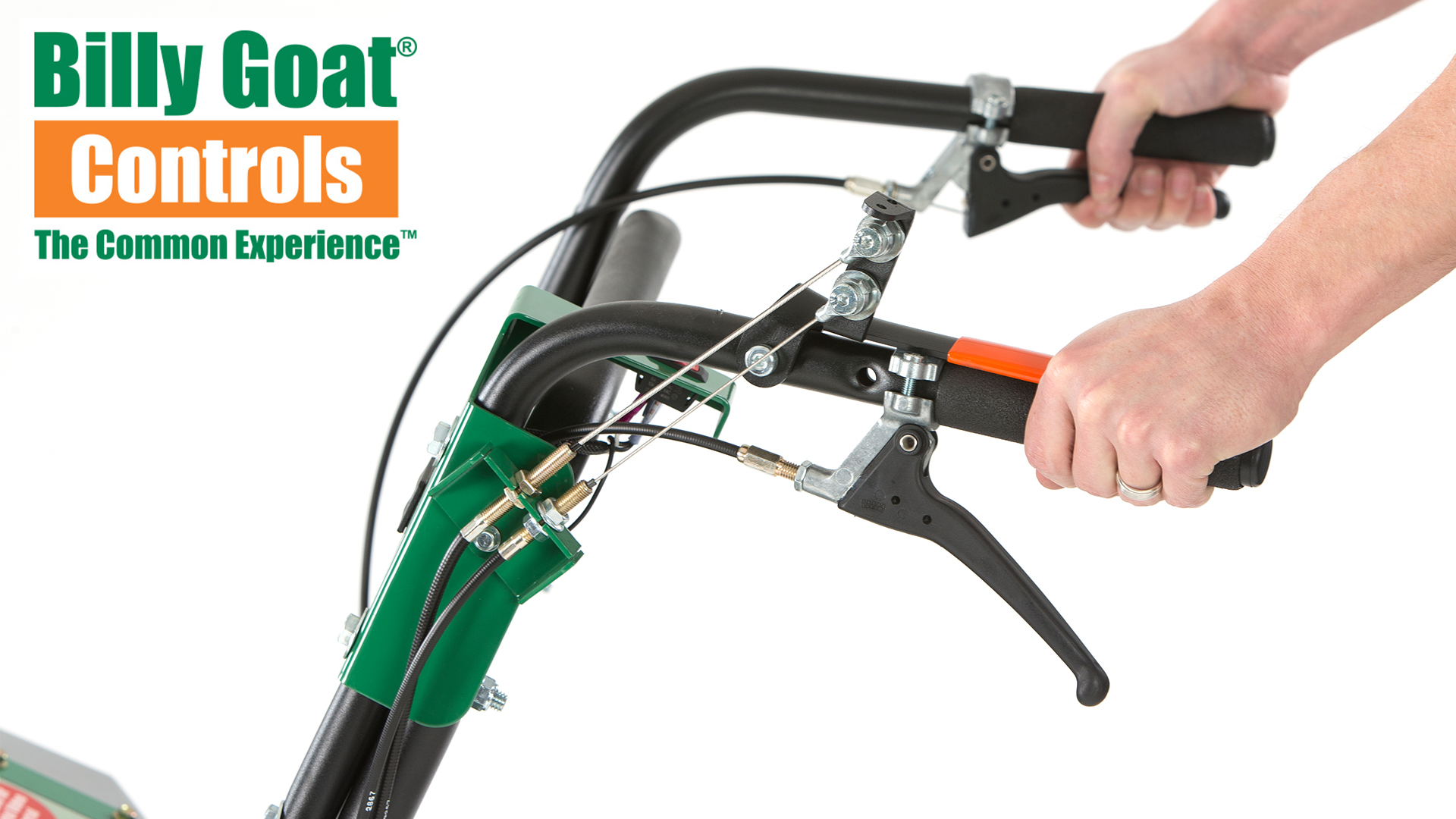

BILLY GOAT® CONTROLS, THE COMMON EXPERIENCE™
Our best in class controls package provides standardized variable speed intuitive hydro-drive controls allowing an operator to feather in forward / reverse directly at the handles with no shifting required. Billy Goat Controls offer a consistent customer experience across our hydro-drive machines affording fleet buyers and rental customers simple operation, as well as ease of training and renting.

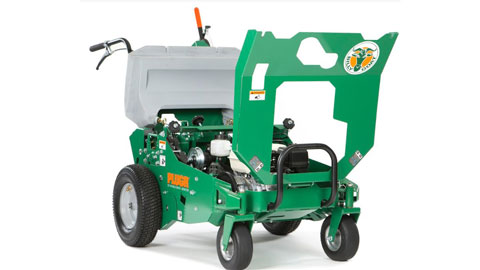

NO-TOOL FLIP-UP HOODS
For best in class access to inside of machine plus improved belt service access.

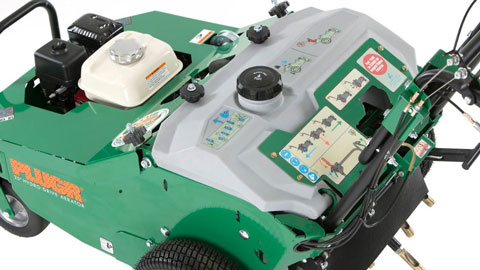

WATER WEIGHT TANK
Positioned directly over tines for better aeration depth and wheel traction in drier conditions. Full tank capacity is 40 pounds.
IN-GROUND TURNING
Provides unmatched maneuverability, ergonomics, ease of turning, improved production, reduced downtime and turf repair when compared to drum aerators.

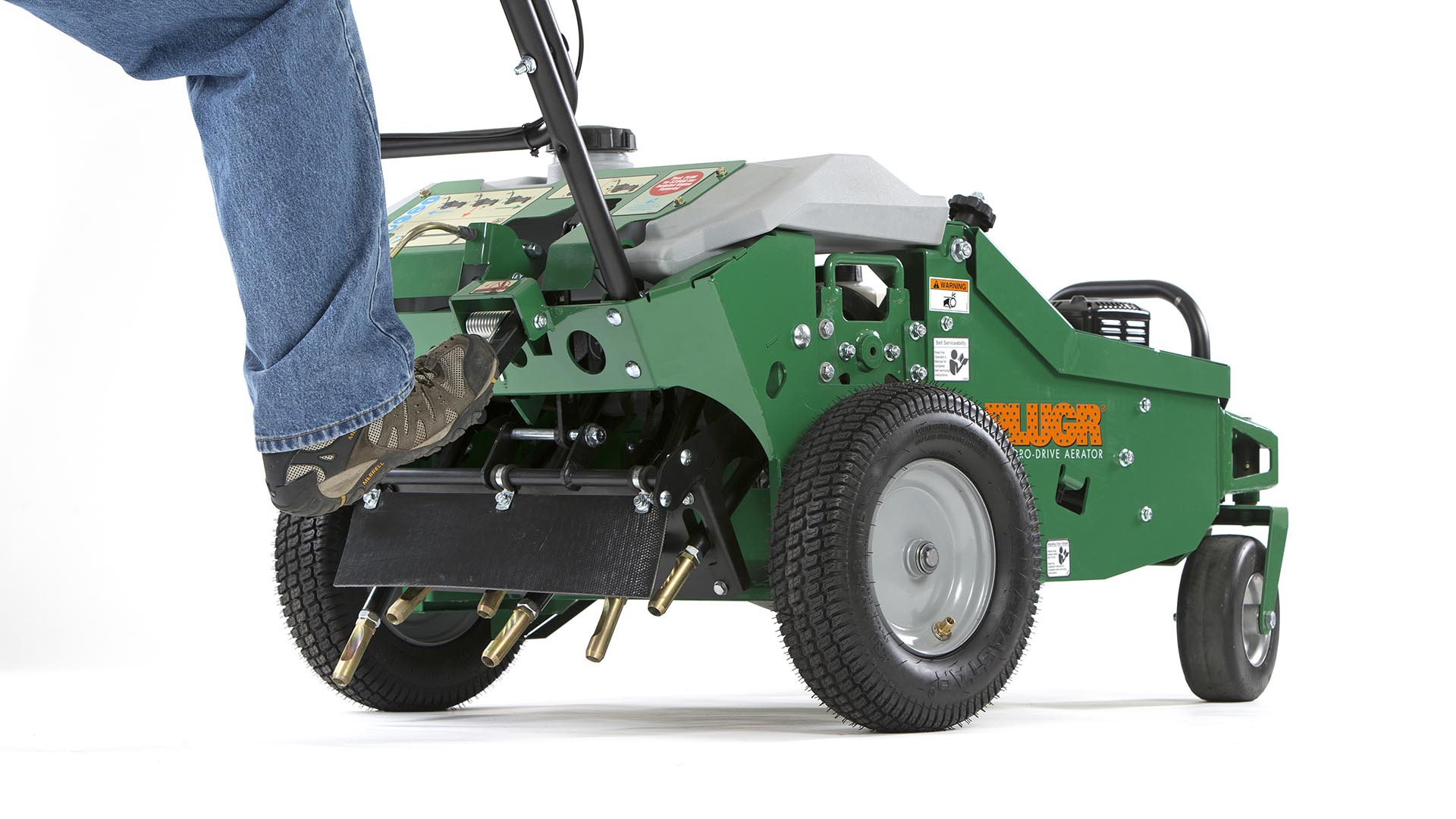

PROPRIETARY EZ LIFT™ REAR FOOT PEDAL
Conveniently lifts and locks tines for transport or when reversing.

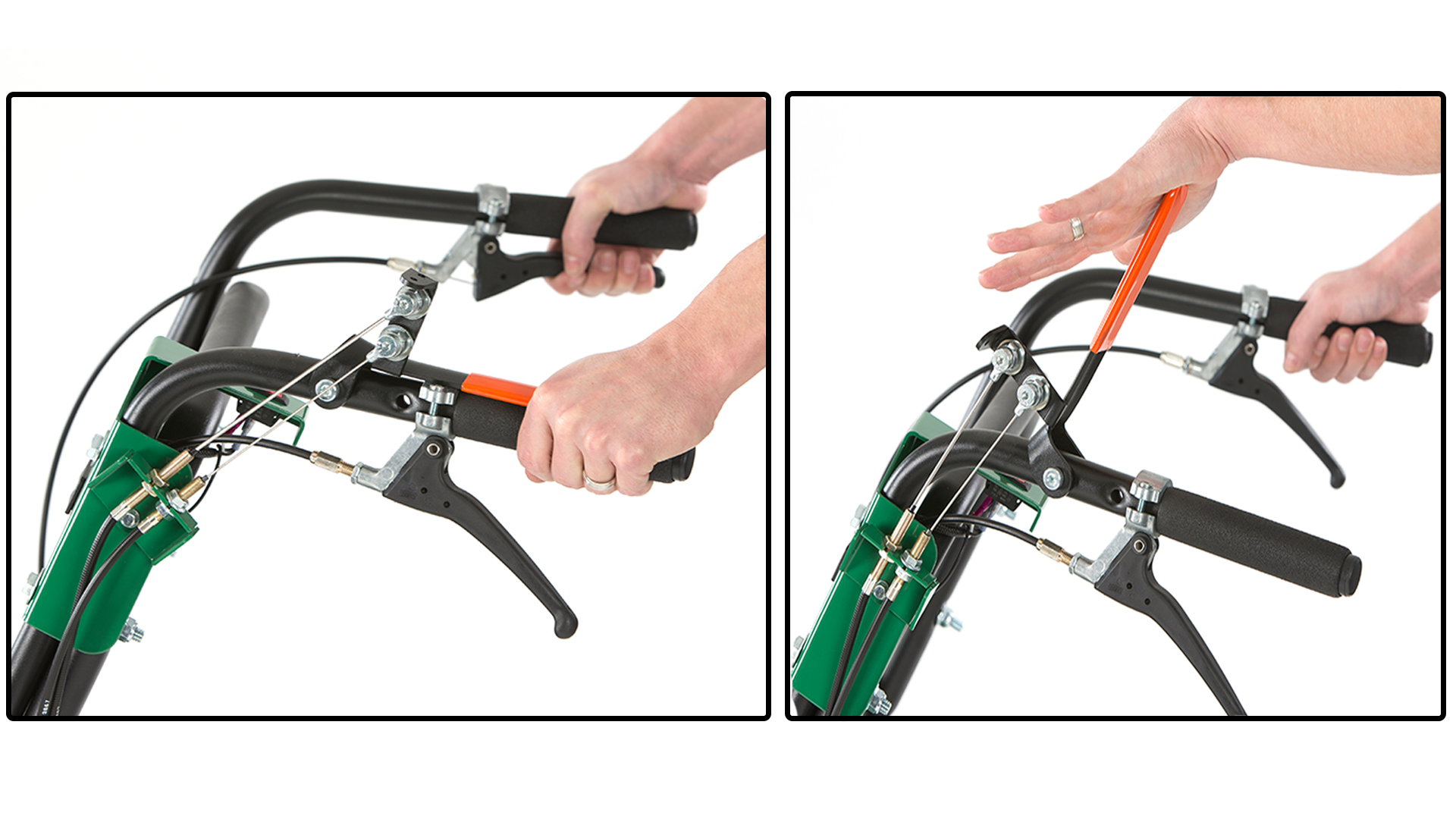

PROPRIETARY EZ LIFT N DROP™ TINE ENGAGE & DISENGAGE
When depressed, the orange lever releases the tines from the lifted locked position and engages the tining action. When released the tining action stops and the tines drag across obstacles in the aeration path for uninterrupted aeration and increased productivity.

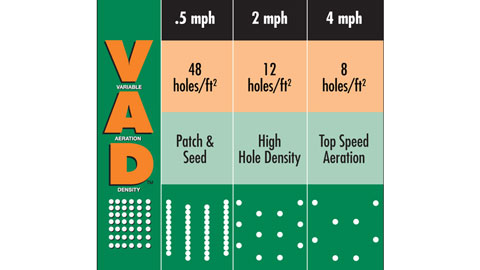

VARIABLE AERATION DENSITY (VAD™)
Creates 2-10x more holes than drum models in one pass. Eliminates double aerating and offers ability to do patch repair and seed bed prep in one pass. Patent Pending.

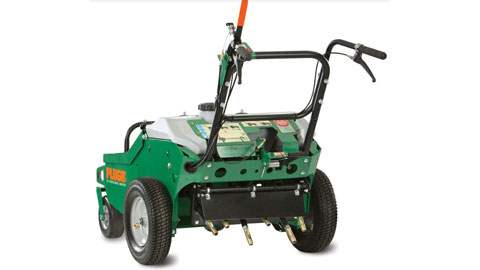

SIX (6) MACHINE HEAT-TREATED HARDENED THIN WALL TINES
Simple, durable screw-in design makes service fast. In/out reciprocating tine motion produces less compaction on the inner surface of the hole compared to spoon designs.

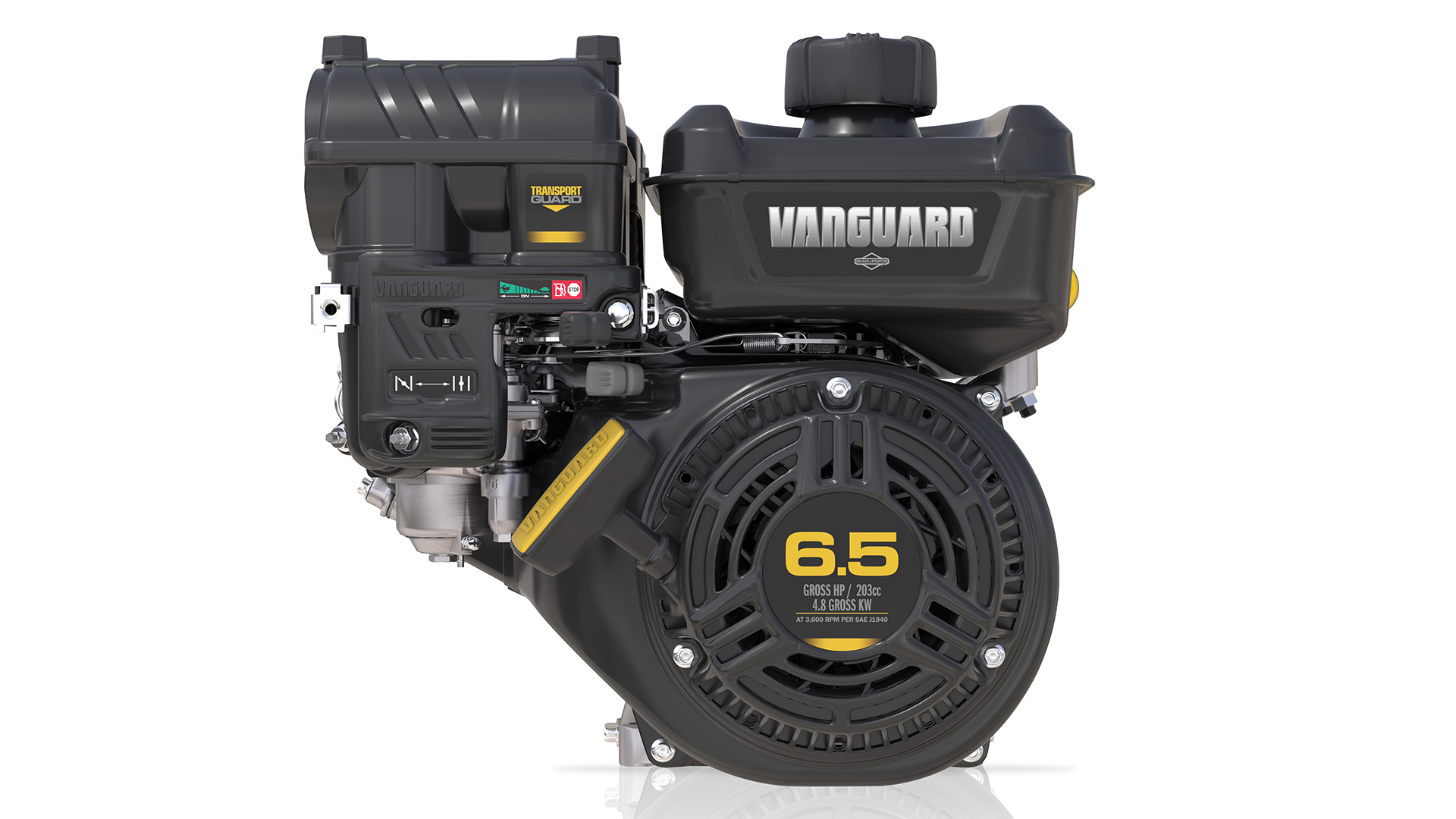

SINGLE-CYLINDER VANGUARD® ENGINE ADVANTAGE (PL2501SPV)
Cyclonic air filtration extends air filter replacement intervals up to 600 hours
Advanced oil management system extends oil change intervals up to 200 hours
TransportGuard® eliminates oil/fuel dilution during transport
Cold-weather starting offers easy start down to -20 degrees
Easy fill oil port and dipstick make checking and filling simple
Specifications
| PL2501SPV | PL2501SPH | |
| Engine Displacement (cc) | 203 | 163 |
| Engine Brand | Vanguard | Honda |
| Starter Type | Pull | Pull |
| Drive | Hydro-Drive | Hydro-Drive |
| Tines | 6 | 6 |
| Tine Pattern | 3.6" (9.144 cm) x Varies by Speed | 3.6" (9.144 cm) x Varies by Speed |
| Coring Tines | 5/8" dia. (1.6 cm) | 5/8" dia. (1.6 cm) |
| Aeration Width | 25" (63.5 cm) | 25" (63.5 cm) |
| Core Depth | Up to 2.75" (6.985 cm) | Up to 2.75" (6.985 cm) |
| Productivity SQ. FT./HR. | Up to 42,550 | Up to 42,550 |
| Weight | 435 lbs (197.3 kg) | 435 lbs (197.3 kg) |
| Length | 67" (170.1 cm) | 67" (170.1 cm) |
| Width | 35" (88.9 cm) | 35" (88.9 cm) |
| Height | 46" (116.8 cm) | 46" (116.8 cm) |
| Wheels | 15" (38.1 cm) foam filled rear / semi-pneumatic casters front | 15" (38.1 cm) foam filled rear / semi-pneumatic casters front |
| Warranty (Balance of Machine) | 1-year machine | 1-year machine |
| Warranty (Engine) | 3 Year limited manufacturer's warranty | 3 Year limited manufacturer's warranty |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Accessories

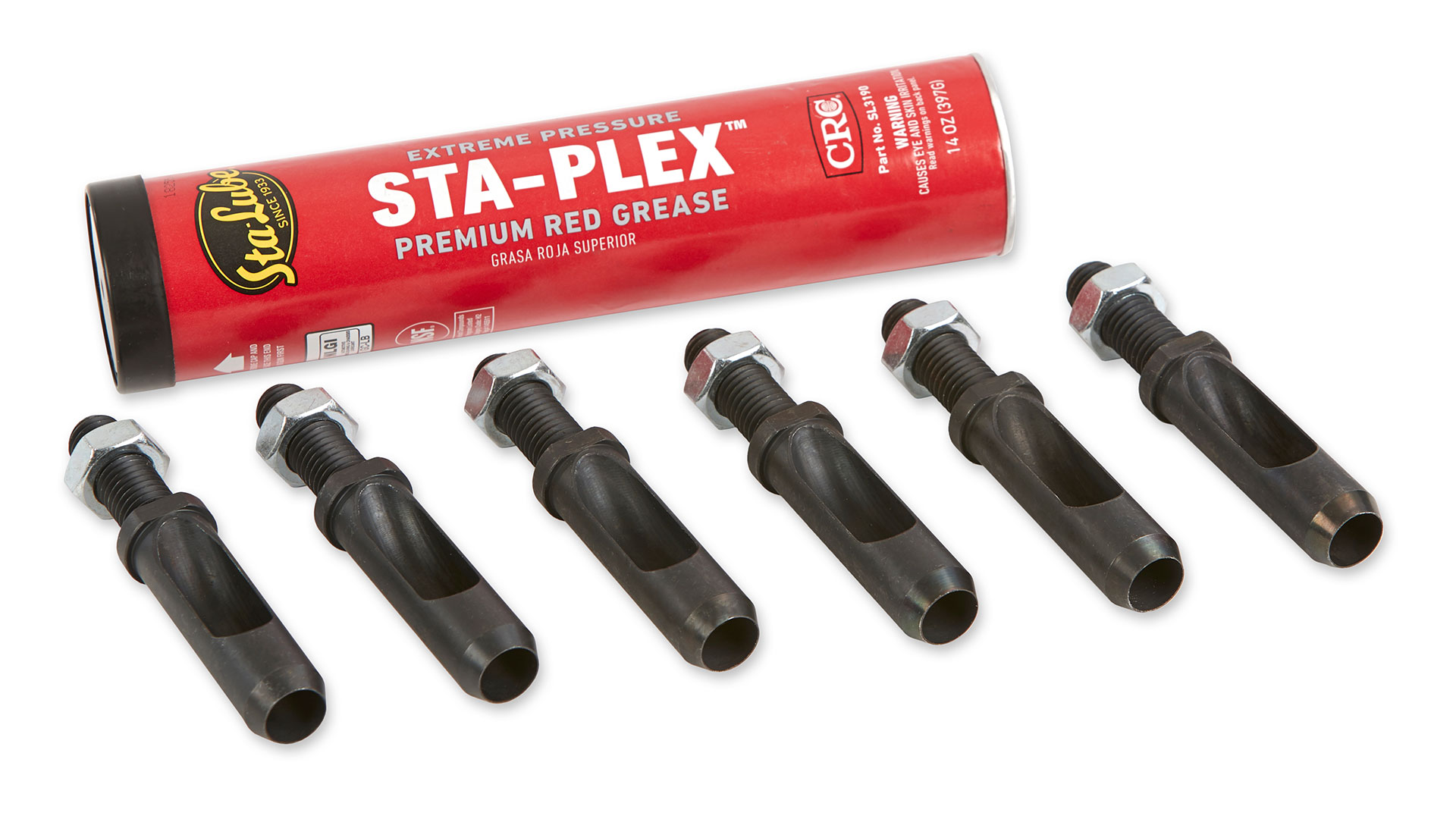

SERVICE KITS (25" PLUGR)
Part #: 382605

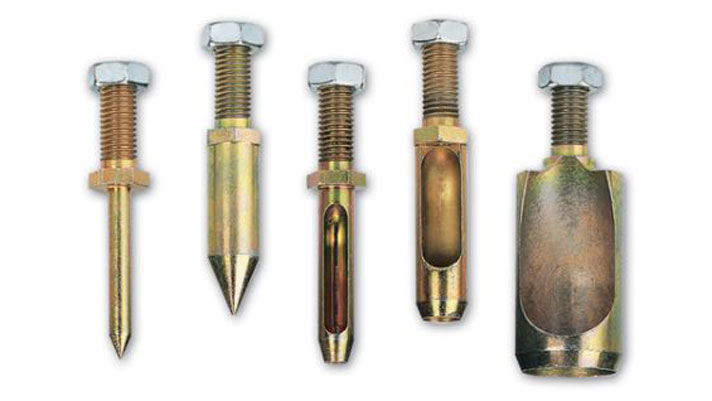

OPTIONAL TINES (PLUGR)
Assorted tine sizes and styles for every turf condition.
3/8" Solid - Part #: 381151
7/8" Solid - Part #: 381149
3/8" Hollow - Part #: 381150
5/8" Hollow - Part #: 382244-S (sold as set with tine and jam nut)
Zoysia Transfer - Part #: 381152
