DL3702VETM Leaf Dragon-X™ Debris Loader
A powerful trailer-mounted 37HP direct drive debris loader, the Leaf Dragon X™ is ideal for large contractors. It features an electric start and 5050 CFM of suction power to devour massive debris piles and get you to the next job in record time!
The integrated trailer setup offers hassle-free curbside pickup, providing easy and versatile hose handling for both operation and transport.
Features
/Features/DUAL%20SHREDDING%20SYSTEM%20WITH%20PIRANHA%20BLADE.webp?width=600&height=400&name=DUAL%20SHREDDING%20SYSTEM%20WITH%20PIRANHA%20BLADE.webp)

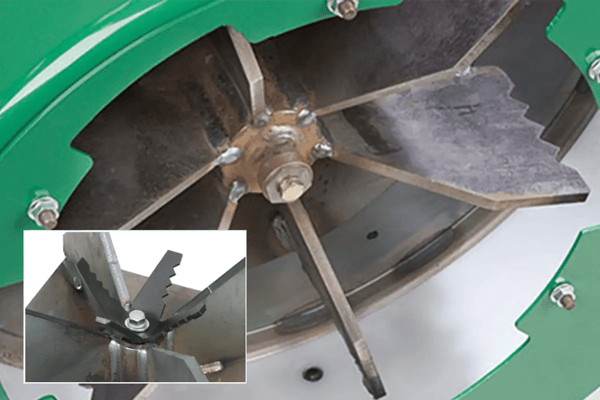

DUAL SHREDDING SYSTEM WITH PRANHA BLADE
Piranha™ blade and 20” Diameter, 6-blade, armor plate steel impeller with 18 cutting points for best debris re duction (up to 12:1).
/Features/Square%20Discharge%20Elbow.webp?width=600&height=400&name=Square%20Discharge%20Elbow.webp)

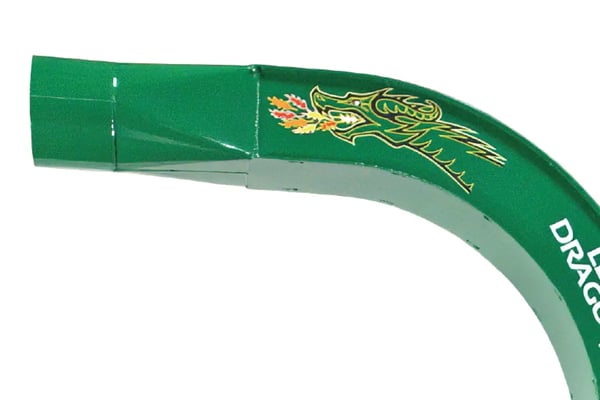

SQUARE DISCHARGE ELBOW
Square discharge elbow increases durability,for longer life and ease of service.
/Features/INTEGRATED%20SAFETY.webp?width=600&height=400&name=INTEGRATED%20SAFETY.webp)

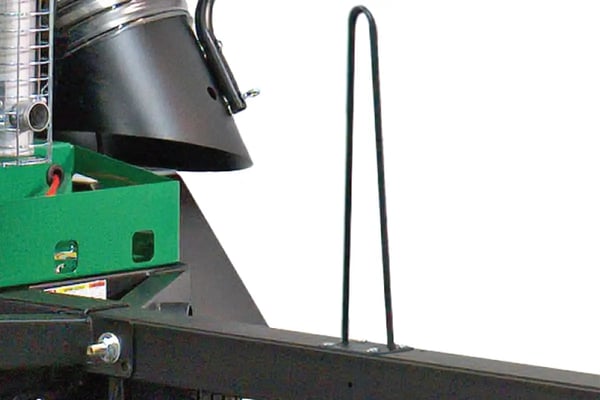

INTEGRATED SAFETY
Built-in road cone holder keeps your site prep gear organized and ready for immediate deployment
/Features/REINFORCED%20CHASSIS.webp?width=600&height=400&name=REINFORCED%20CHASSIS.webp)

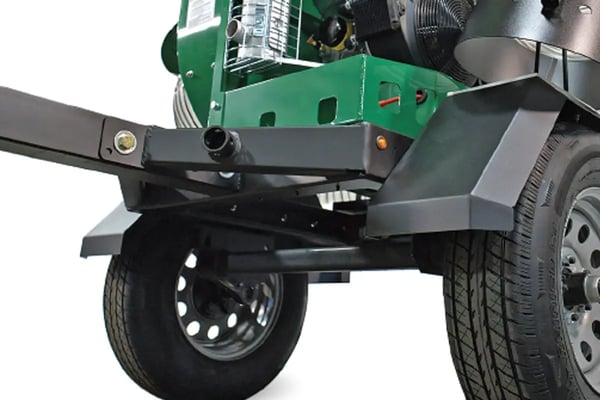

REINFORCED CHASSIS
Built with heavy-duty sheet metal and a strengthened drawbar to provide a rock-solid foundation for high-volume debris removal.
/Features/ADJUSTABLE.webp?width=600&height=400&name=ADJUSTABLE.webp)

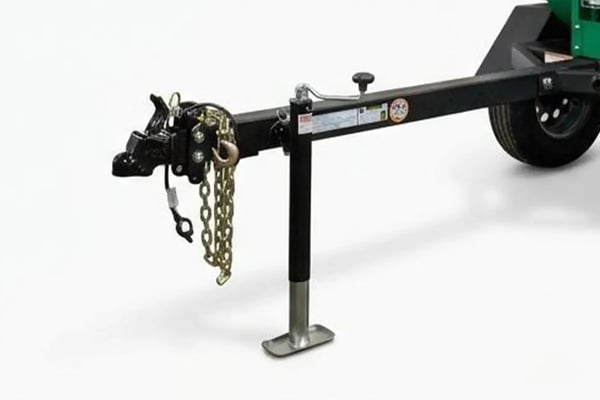

ADJUSTABLE HITCH
Easily adjustable hitch height ensures a perfectly balanced tow with any truck in your fleet for safer, smoother hauling.
/Features/HEAVY-DUTY%20STEEL%20FENDERS.webp?width=600&height=400&name=HEAVY-DUTY%20STEEL%20FENDERS.webp)

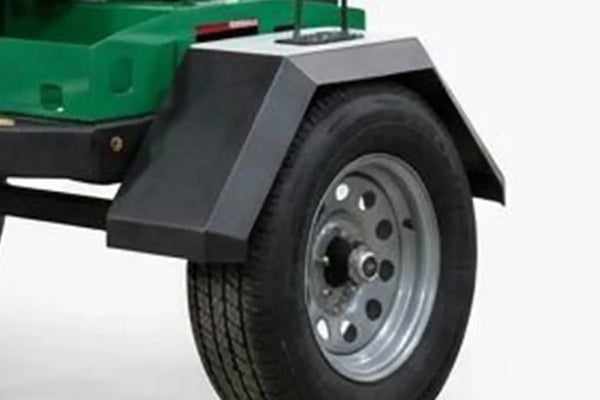

HEAVY-DUTY STEEL FENDERS
Durable, bolt-on protection designed to withstand the rigors of the road and keep your equipment looking professional.
/Features/OPTIMIZED%20STORAGE%20TONGUE.webp?width=600&height=400&name=OPTIMIZED%20STORAGE%20TONGUE.webp)

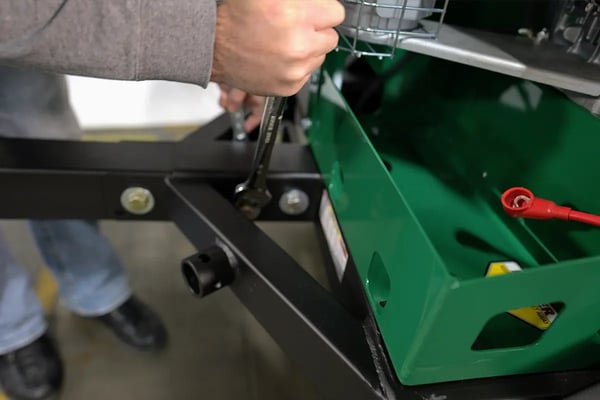

OPTIMIZED STORAGE TONGUE
Features a folding design that shrinks the trailer’s footprint, making it easy to store in tight shops or garages between jobs.
/Features/RAKE%20HOLDER.webp?width=600&height=400&name=RAKE%20HOLDER.webp)

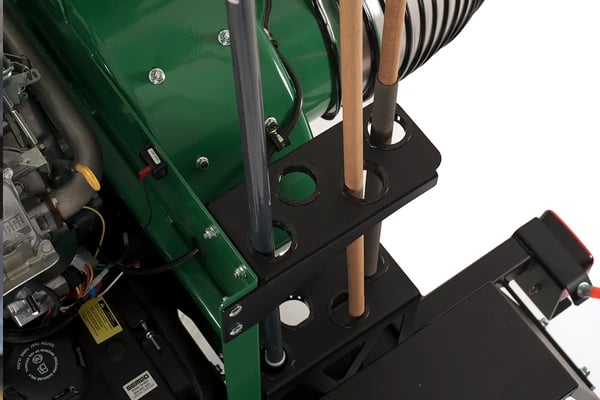

RAKE HOLDER
Secures the extra clean-up tools needed on the job.
Specifications
| DL3702VETM | |
| Engine Displacement (cc) | 993 |
| Engine Brand | Vanguard EFI |
| Starter Type | Electric |
| Drive | Direct |
| CFM | 5050 |
| Impeller | 6 Blades, 18 cutting points |
| Hose Dimensions | 14" x 10' (36 cm x 3 m) |
| Discharge Size | 7" square (17 cm) |
| Weight | 830 lbs (376 kg) - no fuel |
| Length | 144" (3.7 m) |
| Width | 75" (3.7 m) (hose in transport position) |
| Height | 99” (2.5 m) (tallest point on machine) |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice. " * Closed-loop EFI system fuel savings may vary based on debris loading conditions and other factors.
