DL37 Debris Loaders
When commercial productivity counts, these units are our most popular contractor and municipal machines. The discharge chute offers rugged wear and increased life productivity. They feature a 37 HP Vanguard EFI engine coupled to our largest 20”, 6-blade, armour-plated impeller with 18 cutting points and dual shredding Piranha™ technology for up to 12:1 reduction and 5,050 cfm of suction power. (DL3701VE pictured.)
Features

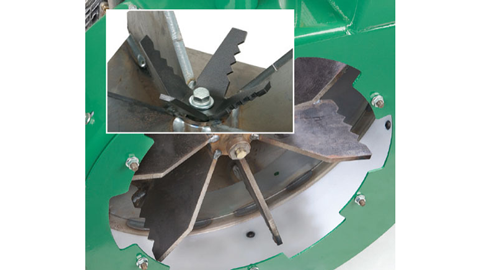

DUAL SHREDDING SYSTEM WITH PIRANHA BLADE™
For extra shredding. Serrated blades with cutting points for maximum truck loading and debris reduction up to 12:1.

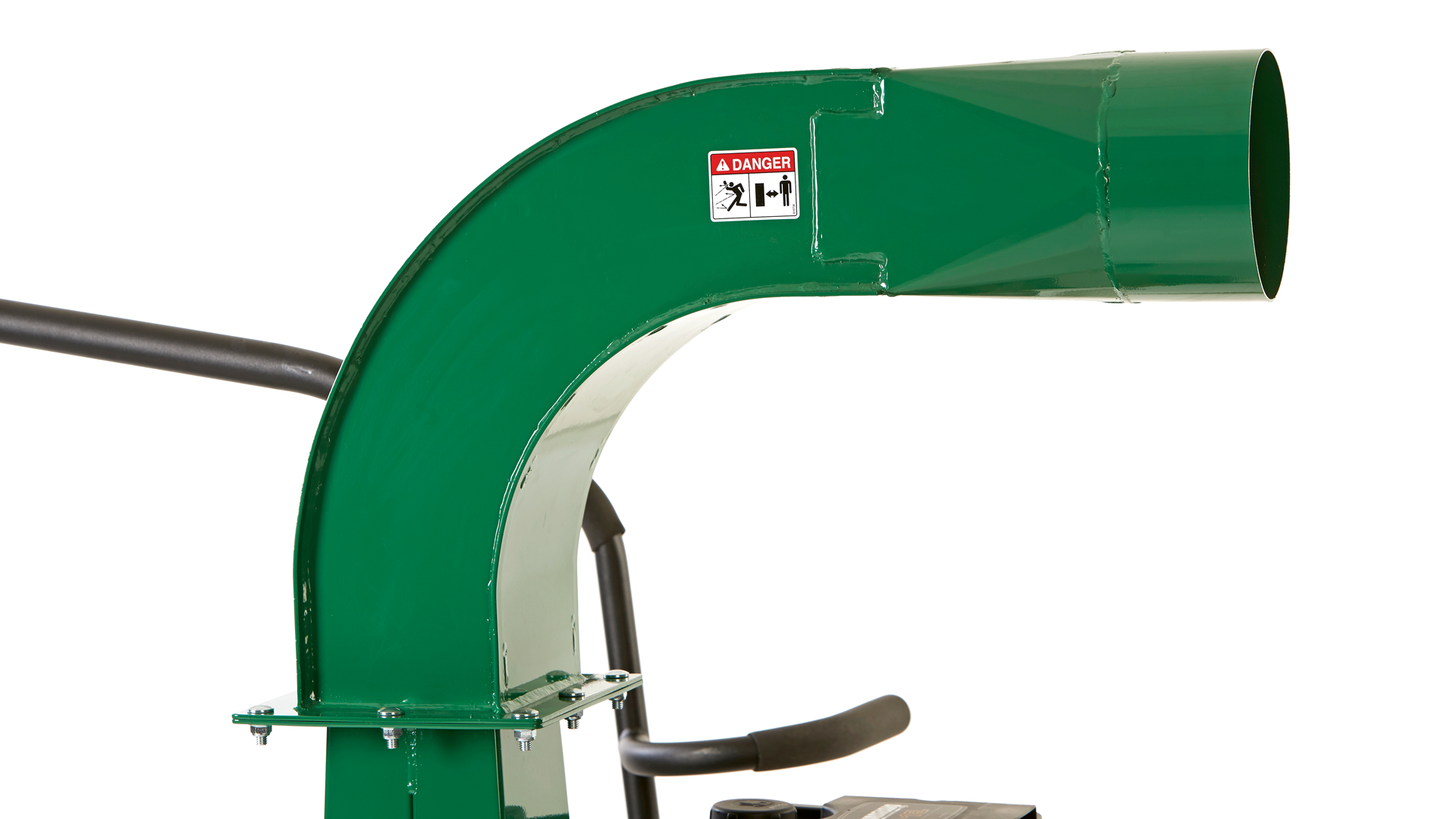

SQUARE DISCHARGE ELBOW
This all-new feature offers increased durability, longer life and ease of service

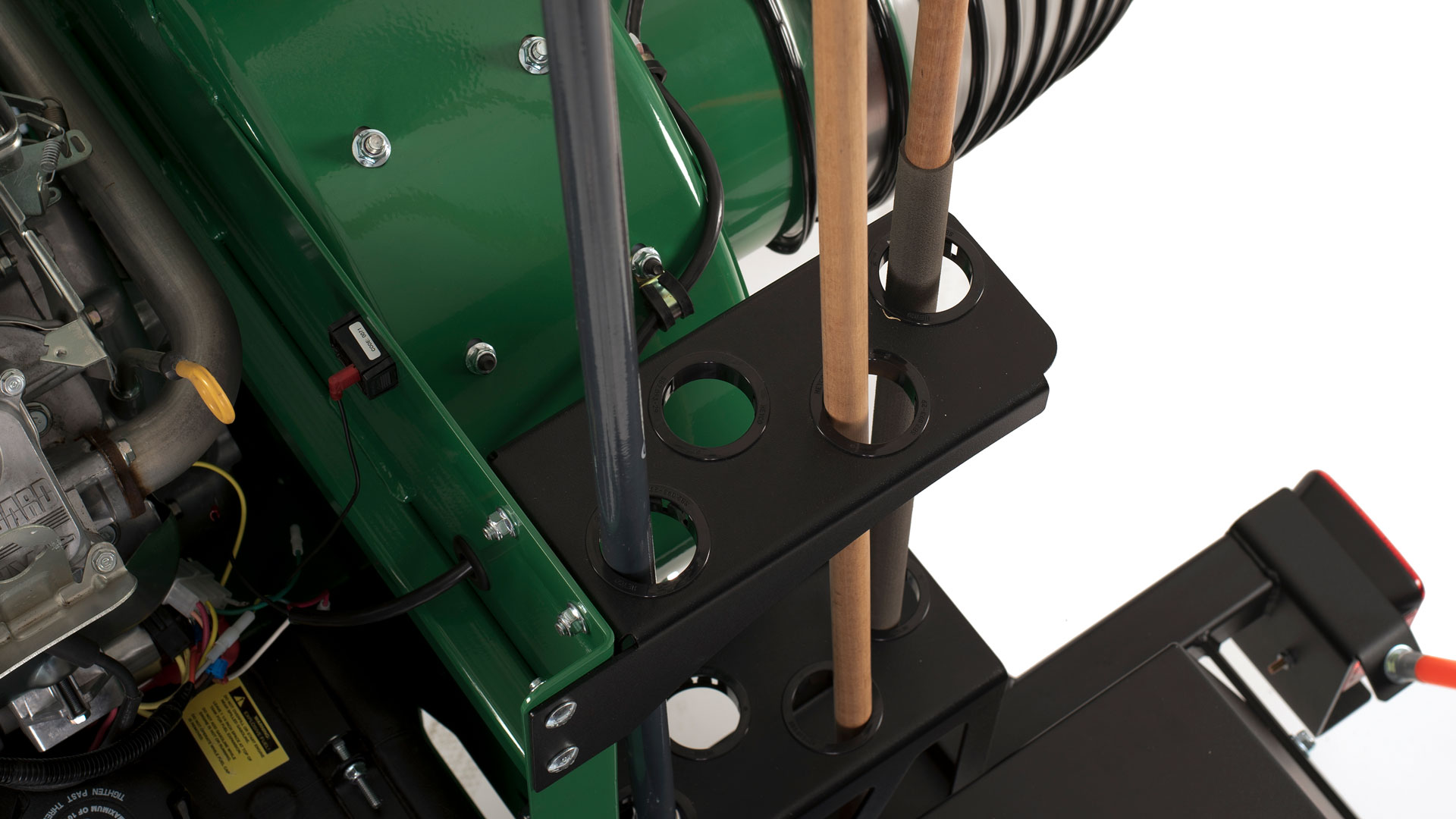

BUILT-IN RAKE HOLDER
Secures the extra clean-up tools needed on the job.
DL WARRANTY
DL29: limited 3-year engine; DL37: limited 3-year engine
Specifications
| DL3702VE | |
| Engine Displacement (cc) | 993 |
| Engine Brand | Vanguard EFI |
| Starter Type | Electric |
| Drive | Direct |
| CFM | 5,050 |
| Impeller | 6 Blades, 18 cutting points |
| Hose Dimensions | 14" x 10' (36 cm x 3 m) |
| Discharge Size | 7" square (17 cm) |
| Weight | 1860 lbs (844 kg) - no fuel |
| Length | 118" - 130" (2.9 - 3.3 m) |
| Width | 69" (1.75 m) (hose in transport position) |
| Height | 121.25” (3 m) (discharge height), 123” (3 m) (tallest point on machine) |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice. "
Accessories

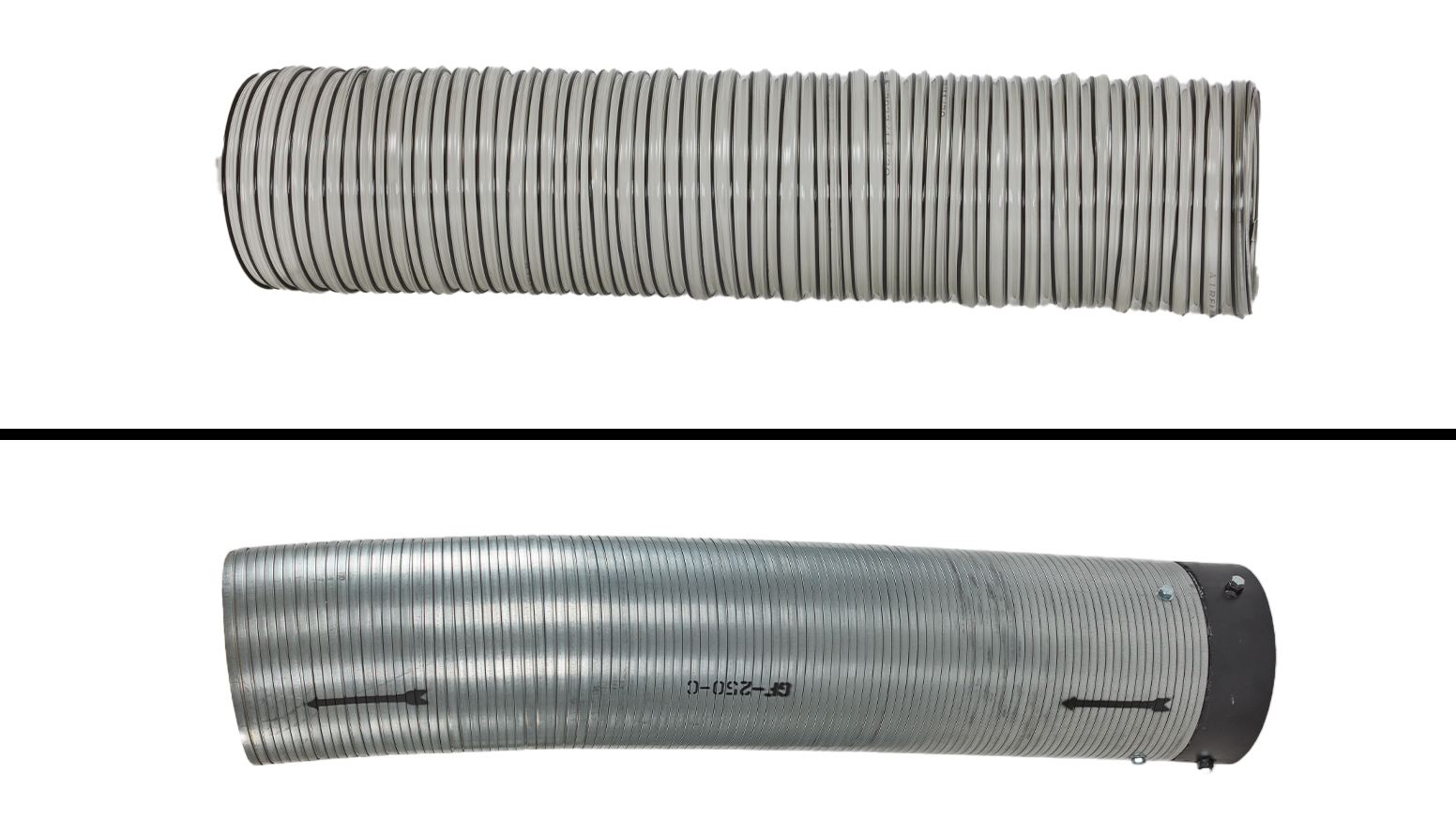

OPTIONAL CUSTOMFIT™ DISCHARGE HOSE KITS
Extends discharge by 5’ for customization of your truck or trailer.
Urethane Hose Kit - Part #: 791107
Flexible Metallic Hose Kit - Part #: 791106

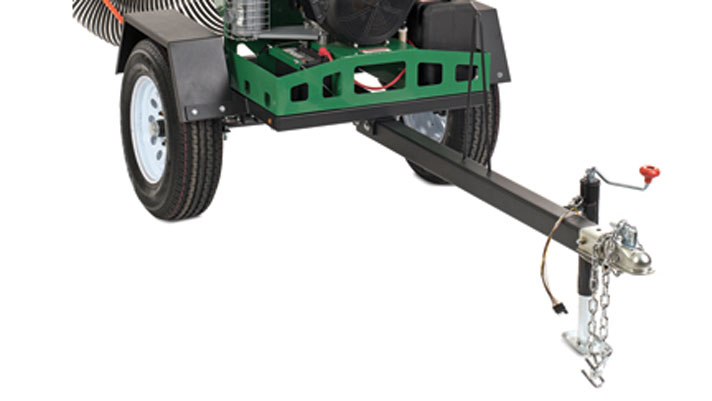

CUSTOMFIT™ TRAILER
Part #: 791152
An ideal solution for most any crew wanting mobility and a smooth ride at highway speeds. Includes pre-wired light kit.

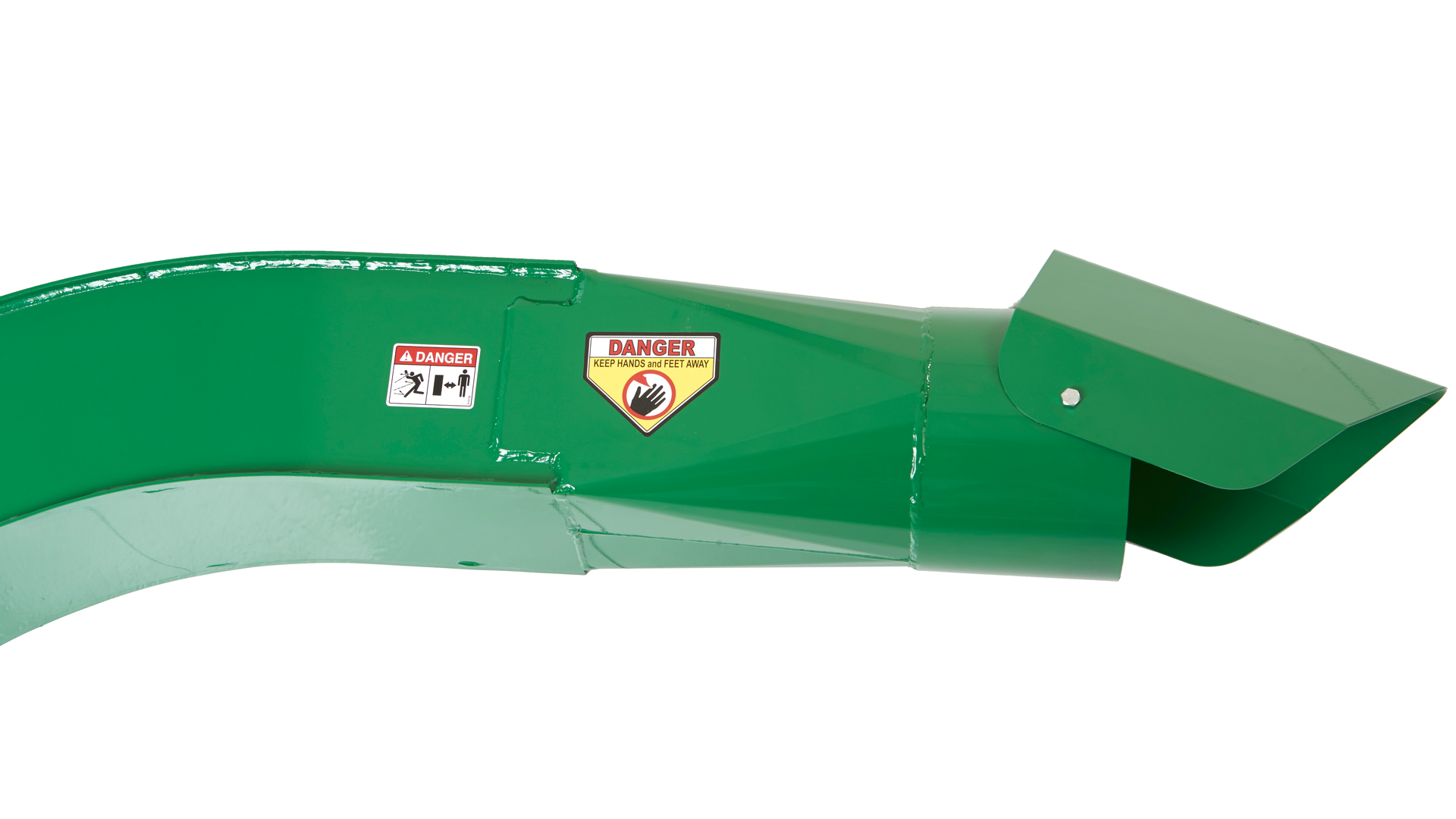

OPTIONAL EXHAUST DEFLECTOR KIT
Part #: 812295
Deflects debris for most efficient loading.
Installation Instructions >

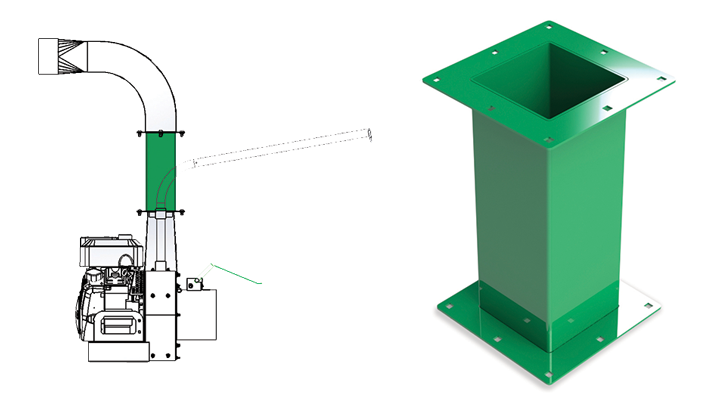

CUSTOMFIT™ EXTENSION KIT
Part #: 792119-S
Extends discharge height.
Extend by 12" - Part #: 792117-S
Extend by 18" - Part #: 792113-S
Extend by 24" - Part#: 792119-S

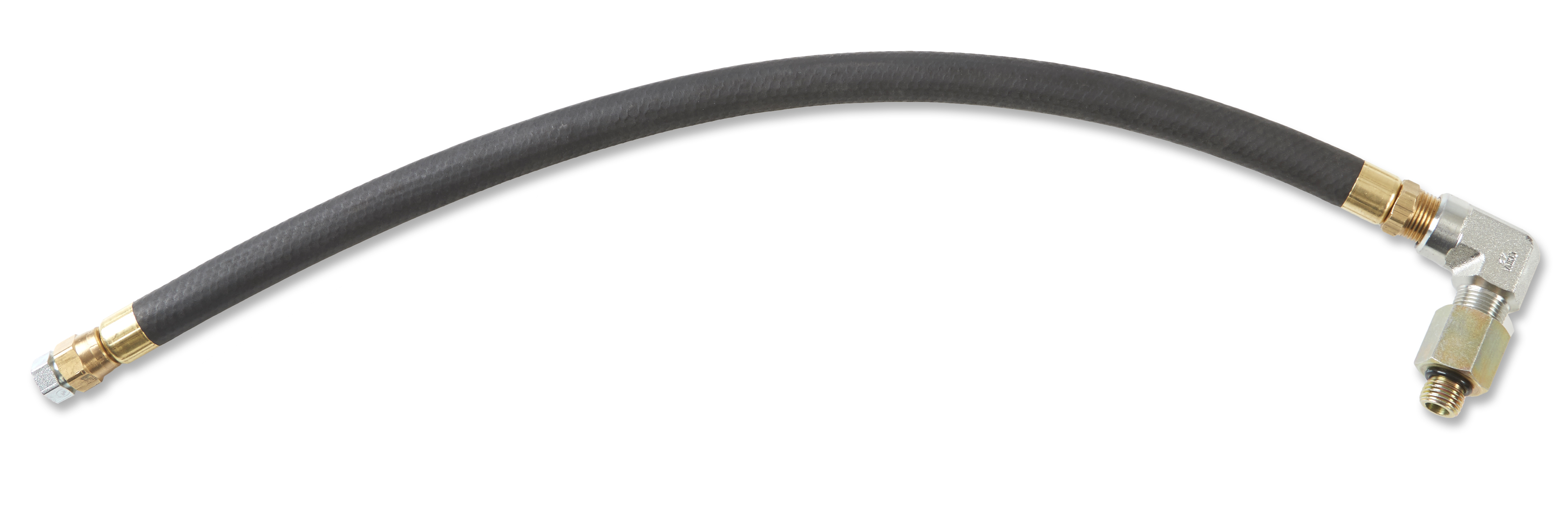

OIL DRAIN HOSE KIT
Part #: 792609
Offers ease of service for oil changes.

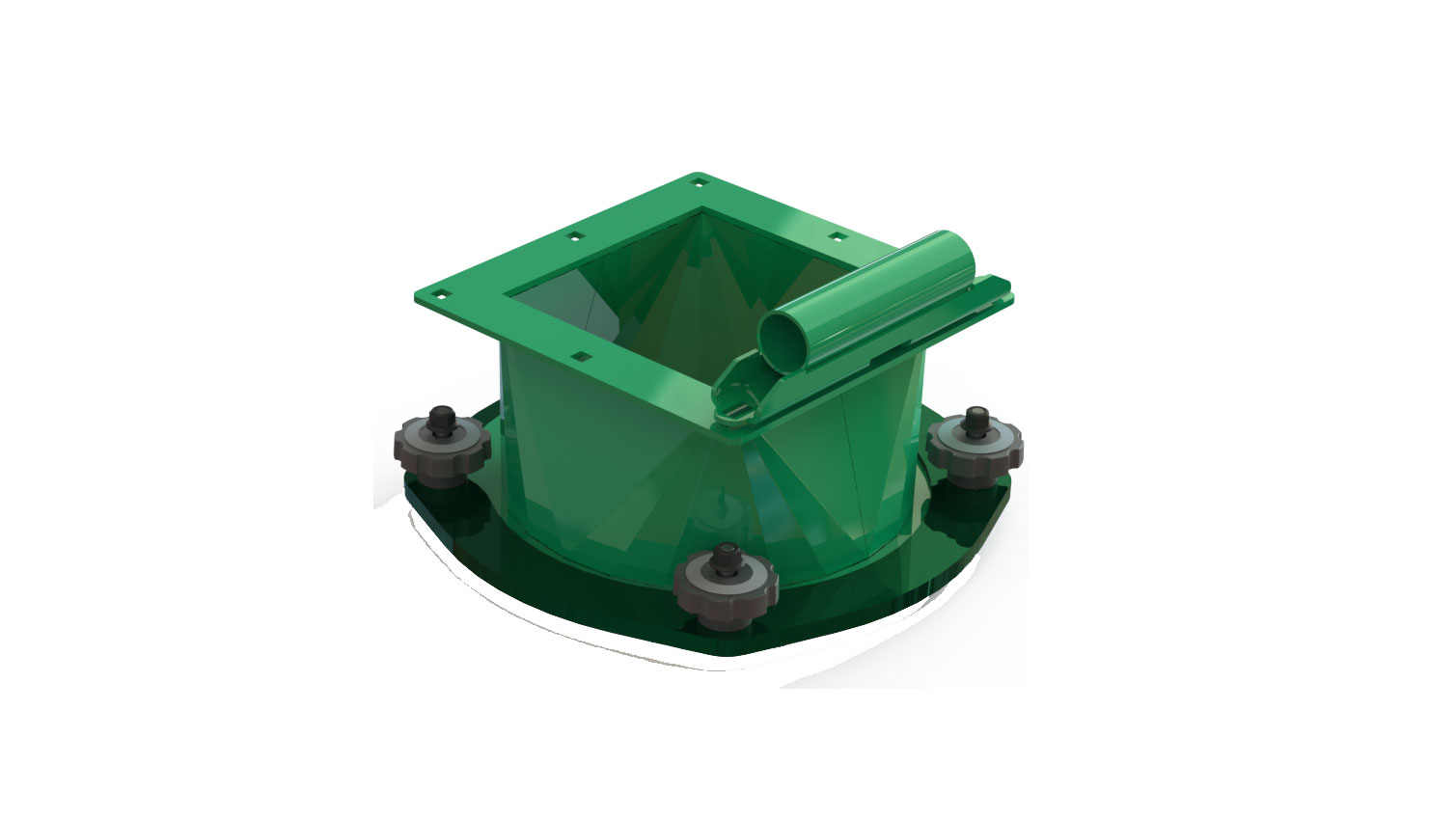

ROTATIONAL KIT FOR SQUARE DISCHARGE ELBOW ONLY
Part #: 793600
Provides full 360° rotation vs. fixed 90° standard position.
