DL14 Debris Loaders
For one of the best values in its class, this rugged 14† gross HP unit features a 16" diameter armor plate steel impeller with 8 cutting points, replaceable poly liner and a 12-gauge steel housing for maximum suction power. This unit can be mounted with the optional hanger kit, skid mounted to a truck or trailer bed, or mounted to a class III truck hitch. The 10" intake hose is 10' long, clear poly helical coil.
Features
DUAL SHREDDING SYSTEM WITH PIRANHA BLADE™
For extra shredding. Serrated blades with cutting points for maximum truck loading and debris reduction up to 12:1.

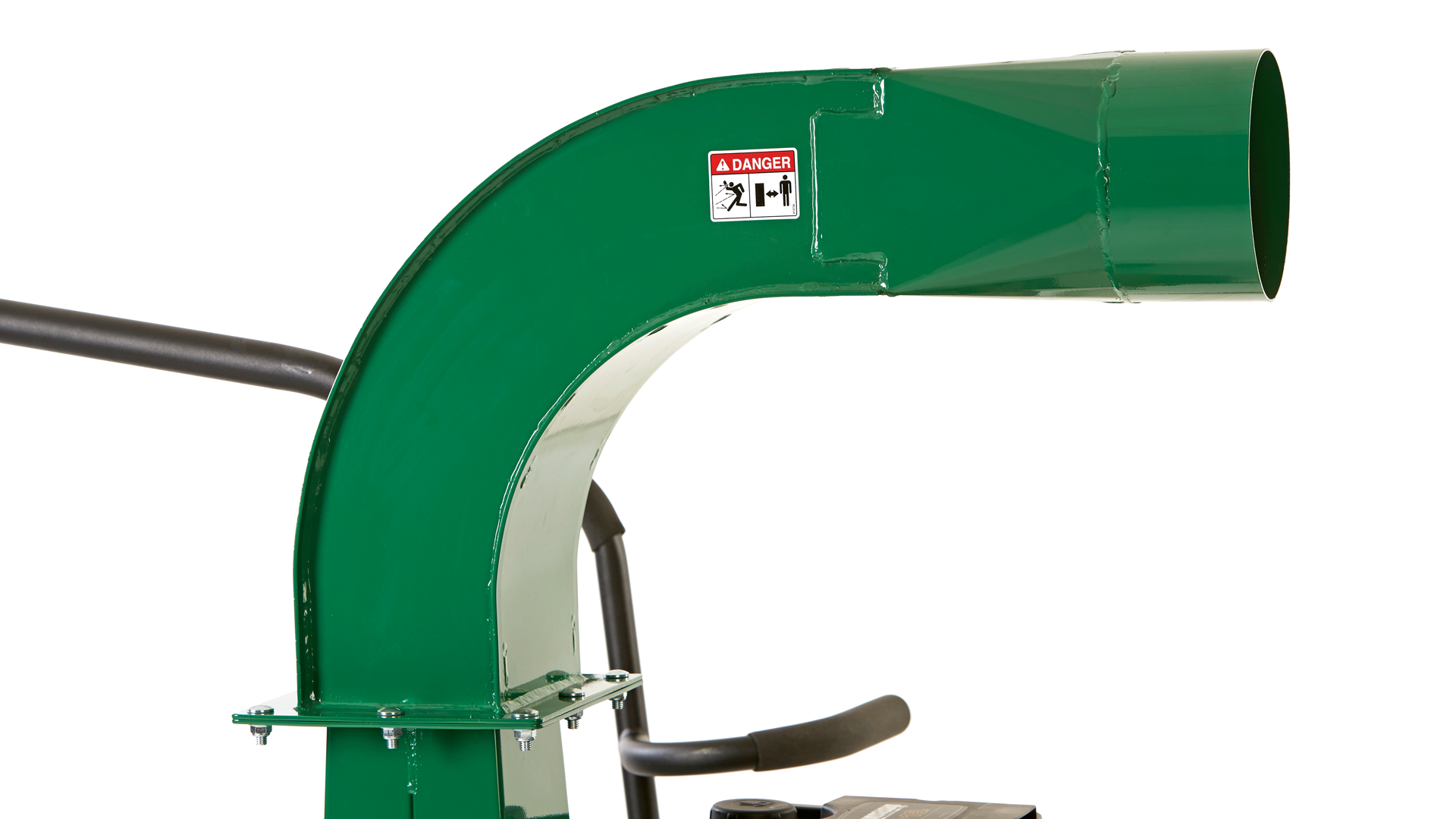

SQUARE DISCHARGE ELBOW
This all-new feature offers increased durability, longer life and ease of service
Specifications
| DL1402VE | |
| Engine Displacement (cc) | 408 |
| Engine Brand | Vanguard |
| Starter Type | Electric |
| Drive | Direct |
| CFM | 3,700 |
| Impeller | 4 Blades, 8 cutting points |
| Hose Dimensions | 10" x 10' (25 cm x 3 m) |
| Discharge Size | 6" square (15 cm) |
| Weight | 279 lbs (127 kg) |
| Length | 31" (79 cm) |
| Width | 27" (69 cm) |
| Height | 48" (122 cm) |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice. "
Accessories

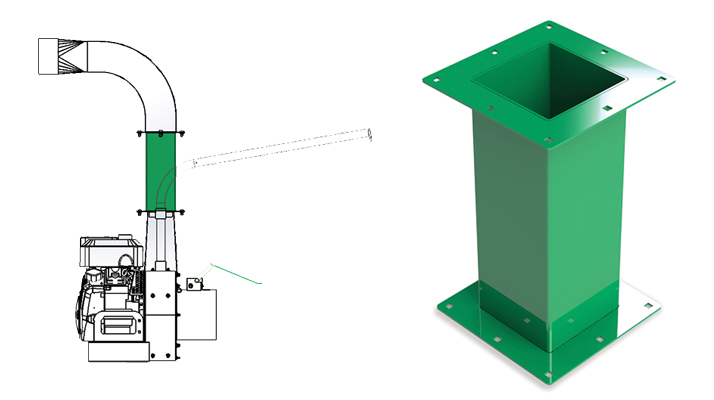

CUSTOMFIT™ EXTENSION KIT
Part #: 812123-S
Extends discharge height by 15 5/8”.

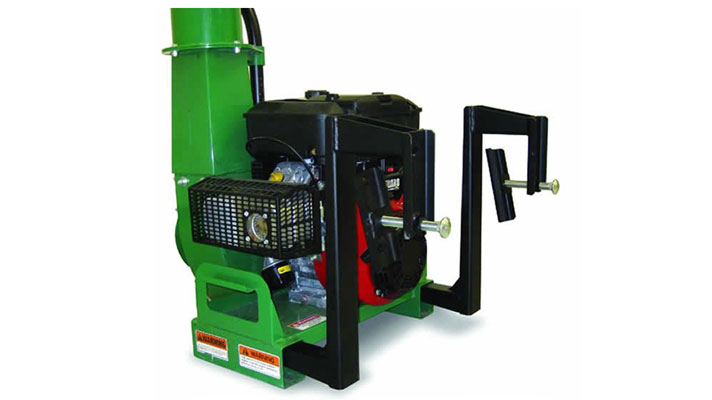

CUSTOMFIT™ HANGER KIT
Part #: 812260
Easy to install, locks in place with two bolts.
Installation Instructions >

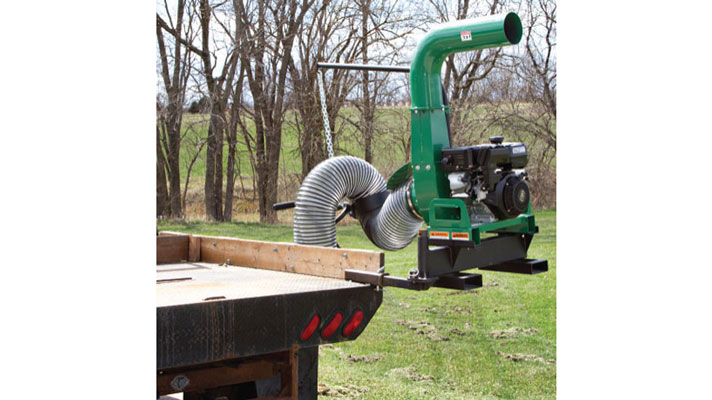

CUSTOMFIT™ STAKE BODY SWING AWAY HITCH
Part #: SBSA6
Stake Body Swing Away Hitch
Installation Instructions >

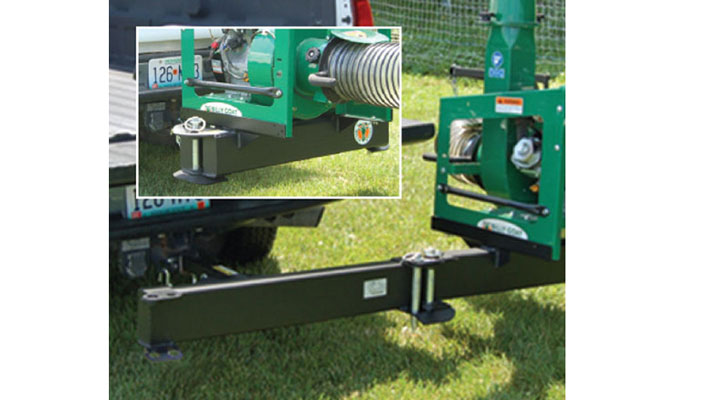

CUSTOMFIT™ SWING AWAY HITCH
Part #: SAH34
Mountable to a class III trailer hitch and locks at 90 and 180 degrees so the unit can be swung away for easy dumping.
Installation Instructions >

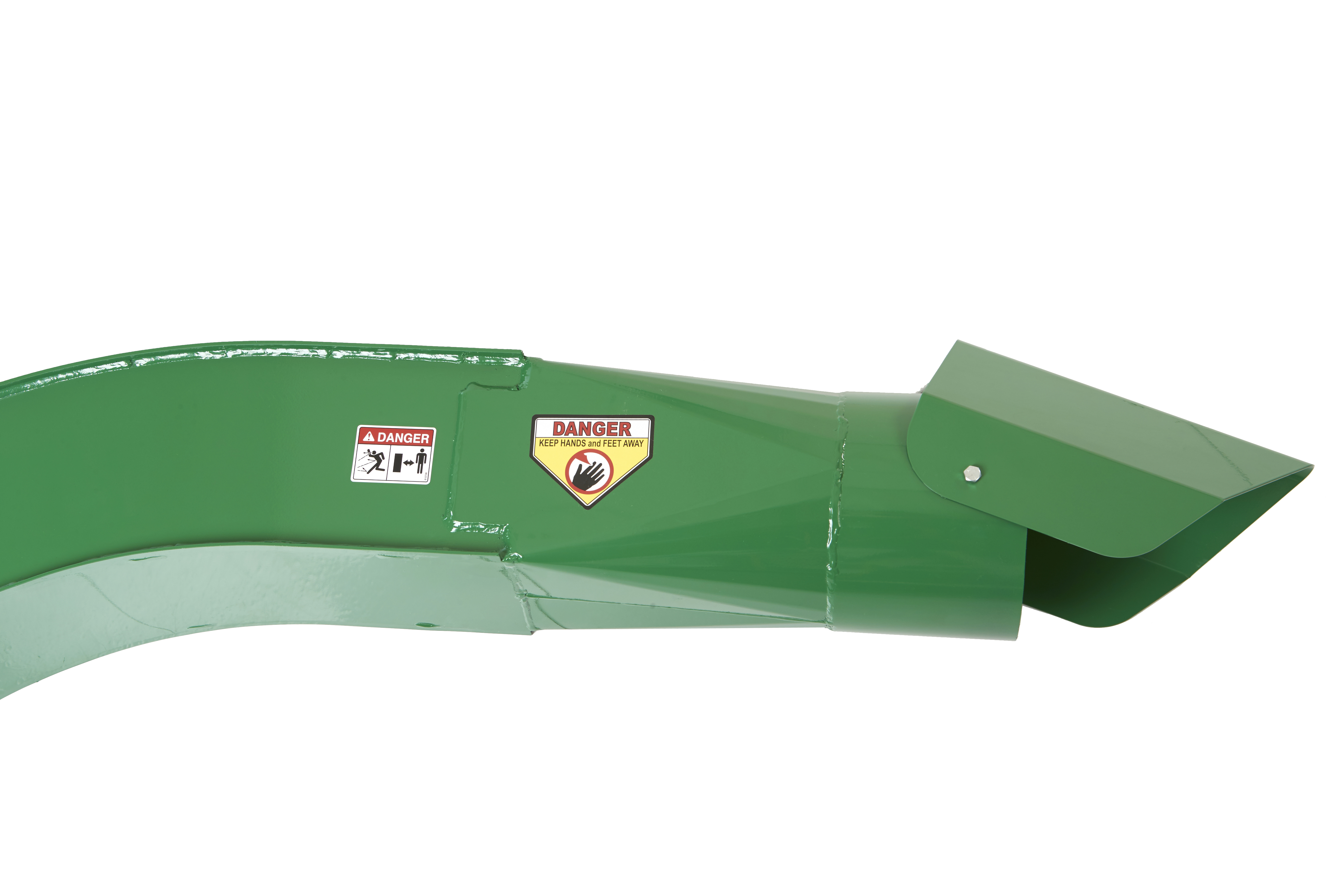

OPTIONAL EXHAUST DEFLECTOR KIT
Part #: 812295
Deflects debris for most efficient loading.

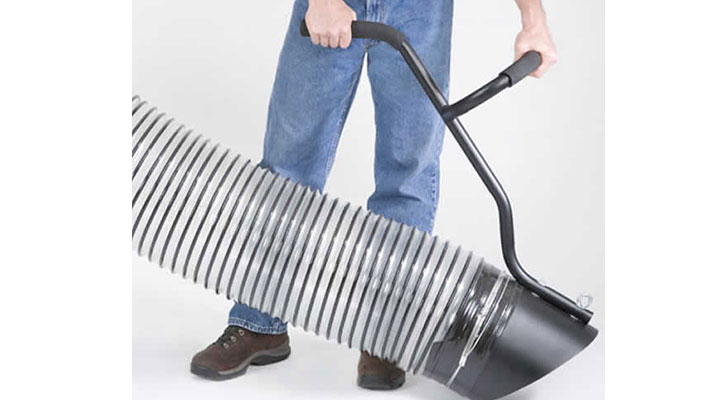

HEAVY-DUTY CLEAR URETHANE HELICAL REPLACEMENT HOSE
Part #: 791033
Urethane portion only.

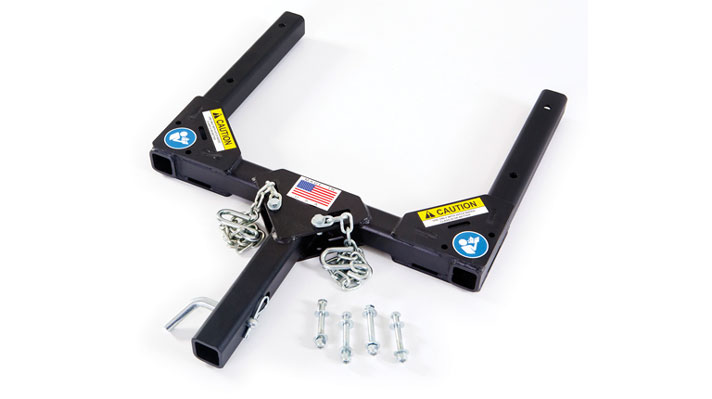

CUSTOMFIT™ RECEIVER HITCH
Part #: 812601
Simple to install and remove and easily mounts to your truck for use with Billy Goat DL13-18 loaders.

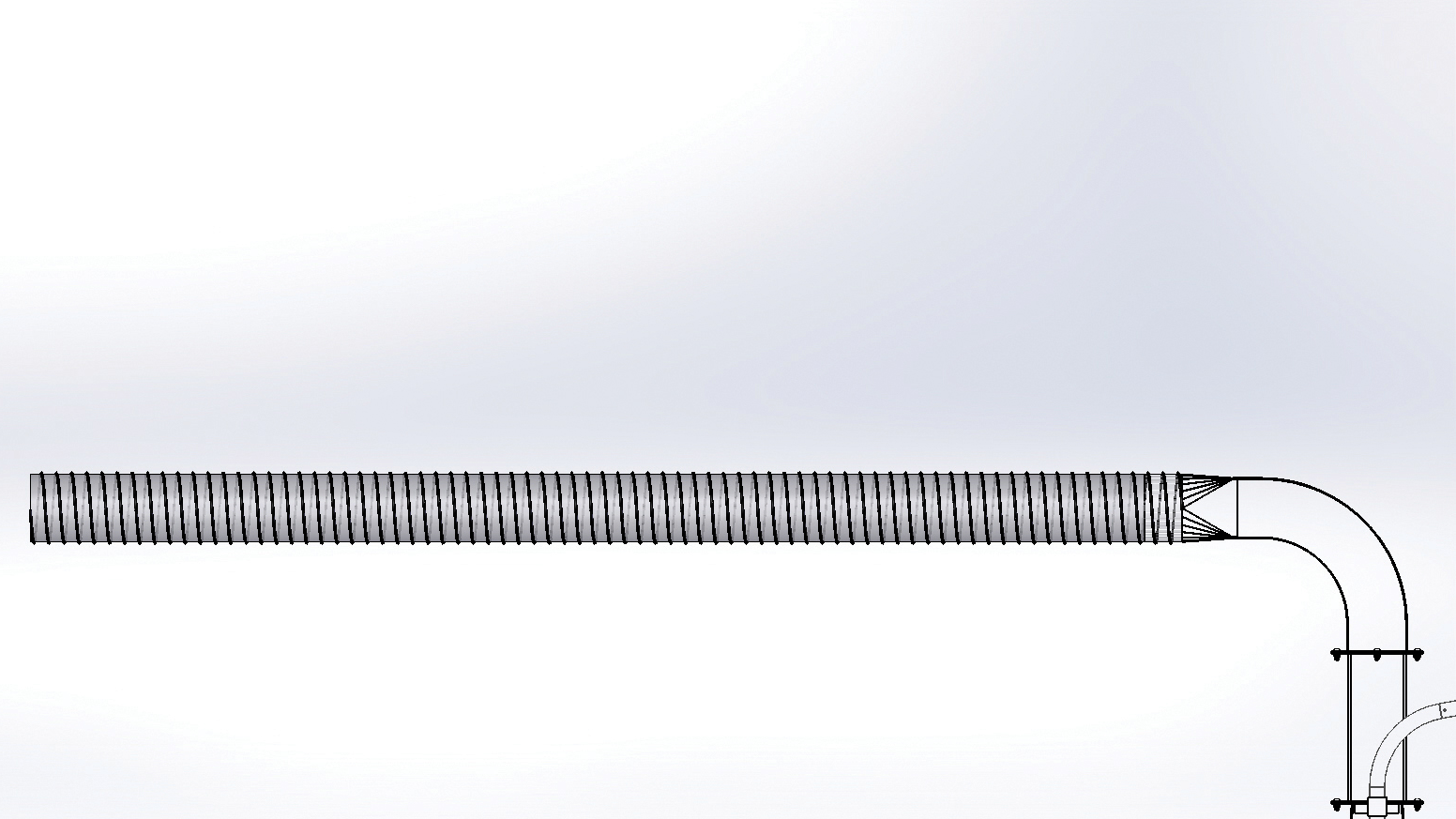

OPTIONAL CUSTOMFIT DISCHARGE HOSE KIT
Part #: 812300
Extends discharge by 5’ for customization to your truck or trailer. Urethane hose kit.
