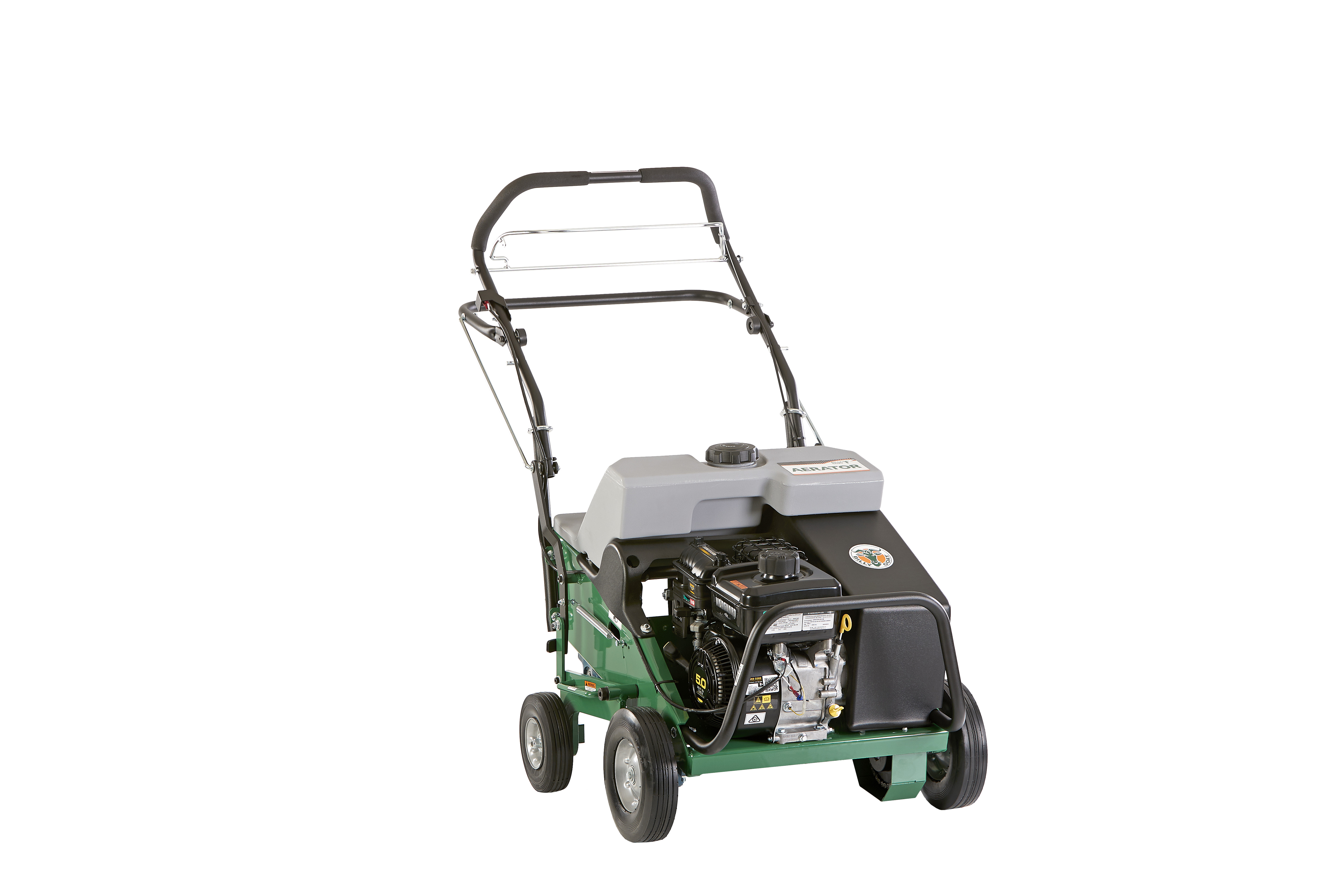

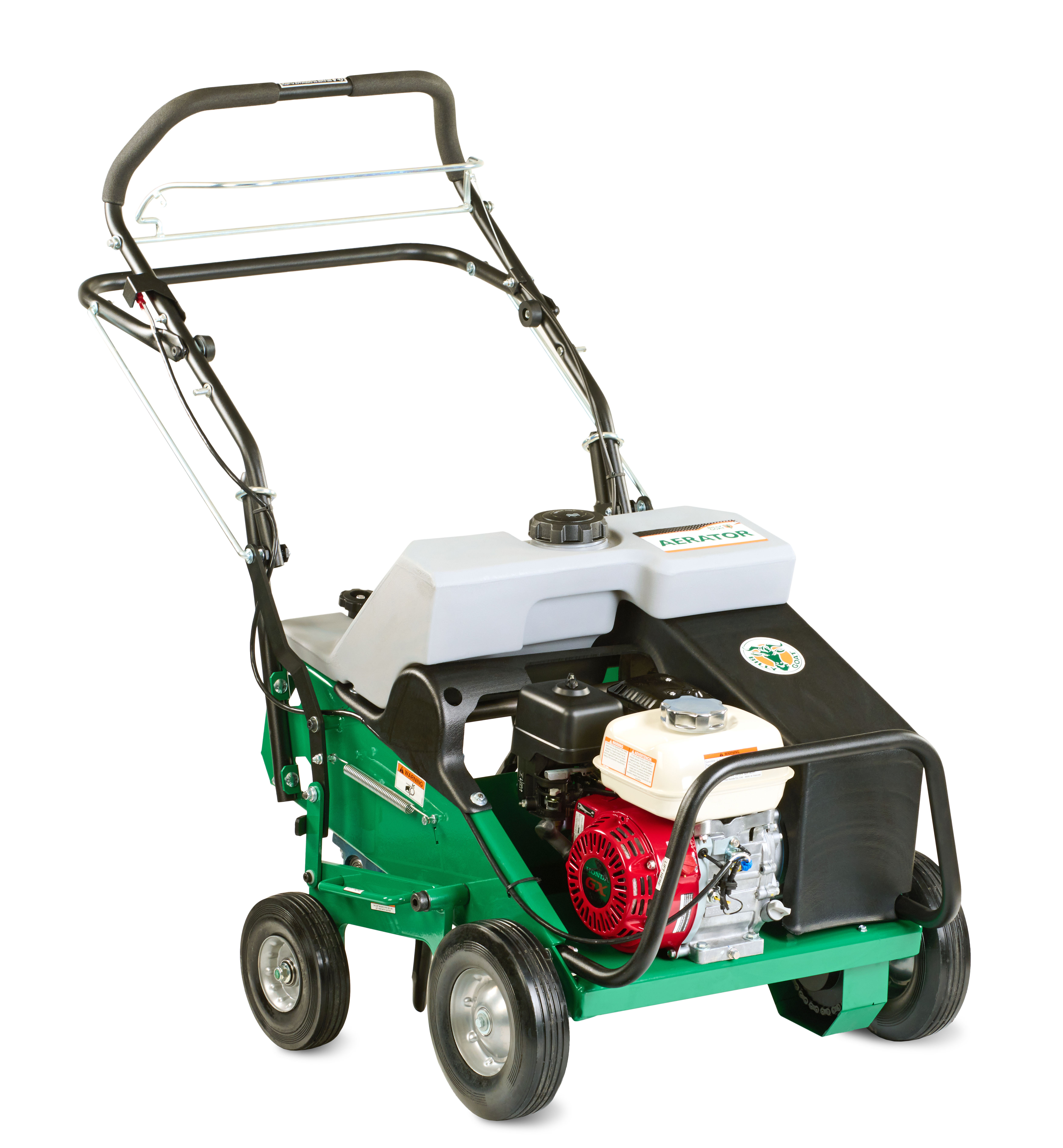

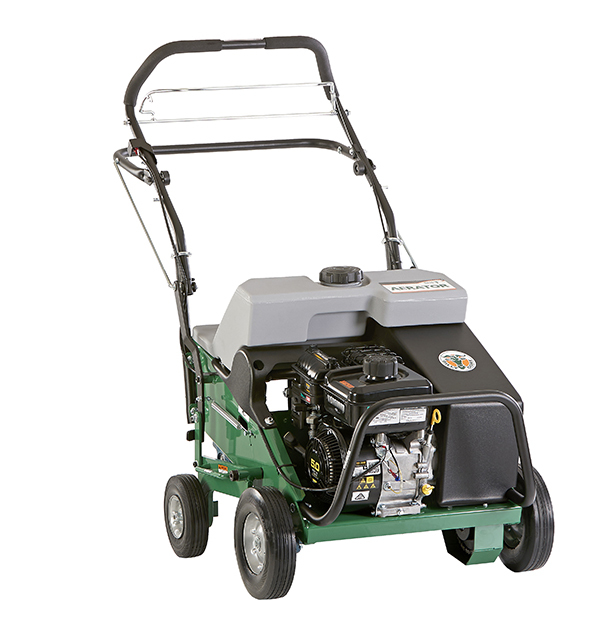

AE400 ser Core Aerator
The Billy Goat AE400 ser Aerator delivers a 19-inch aeration width with a streamlined design that replaces the cumbersome center-wheel and drum systems found on traditional models, eliminating the components most prone to wear, vibration, and damage. By utilizing outboard drive wheels, the unit prevents center wheel slip and protects the tines from damage during ramp loading. In place of bulky steel weights, it features a user-friendly fill/drain water-weight system (adding 50 lbs. when full) positioned directly over the tines to ensure maximum penetration depth. For the operator, the industry-leading soft tine engagement and exclusive Lift n Lock™ system offer unmatched comfort and productivity, while Fold-n-Go™ handles and tilt-up serviceability ensure that transport and maintenance are as reliable as the machine itself.
Features

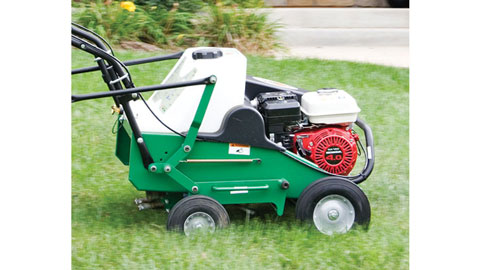

INDUSTRY’S SOFTEST TINE ENGAGEMENT AND EXCLUSIVE LIFT-N-LOCK™ DISENGAGEMENT
For best in class comfort, turning and productivity. Proprietary water tank eliminates bulky side weights.

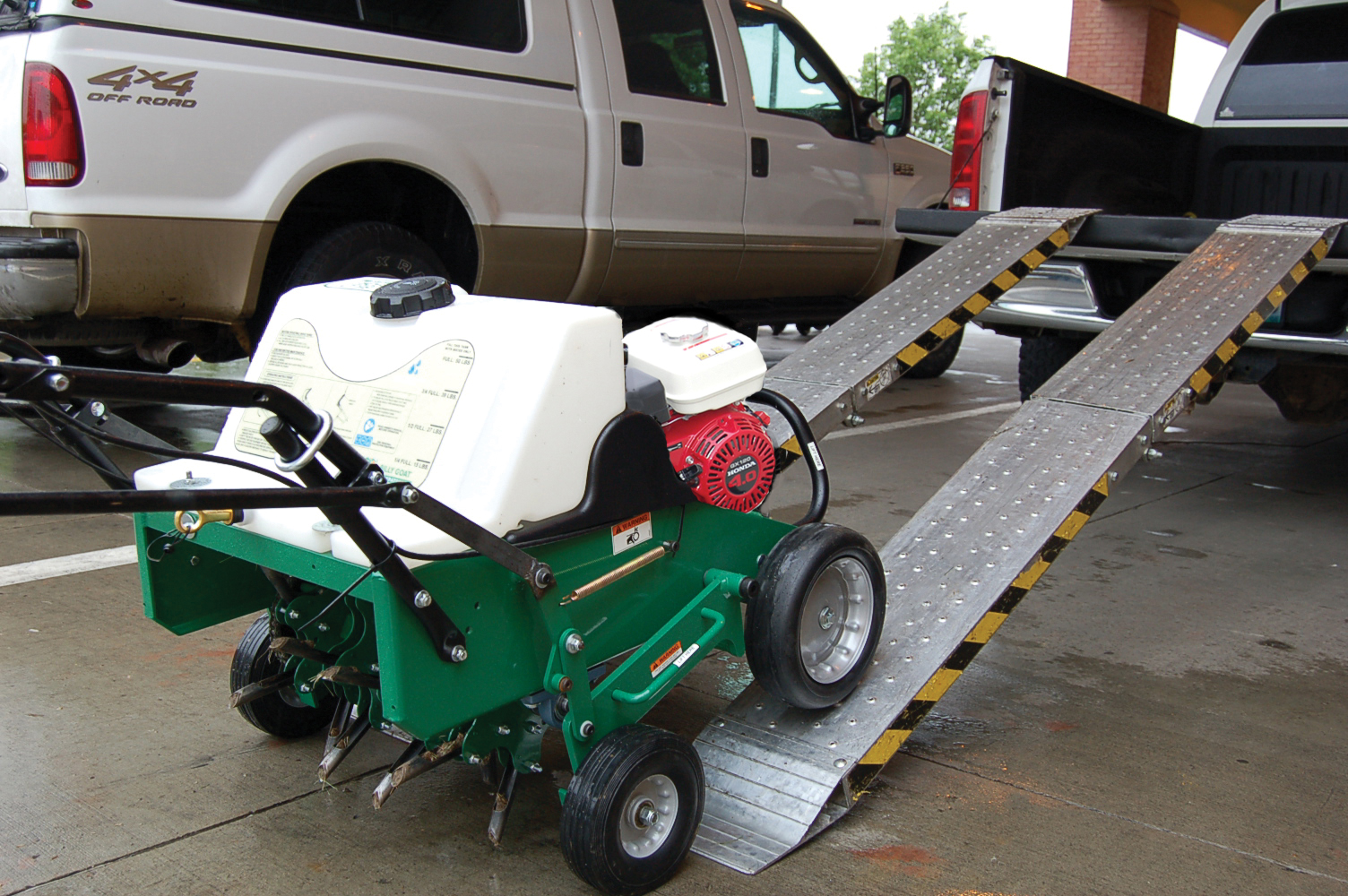

OUTBOARD DRIVE WHEELS
Eliminate both center wheel slip and damage from ramp loading with the tines engaged.

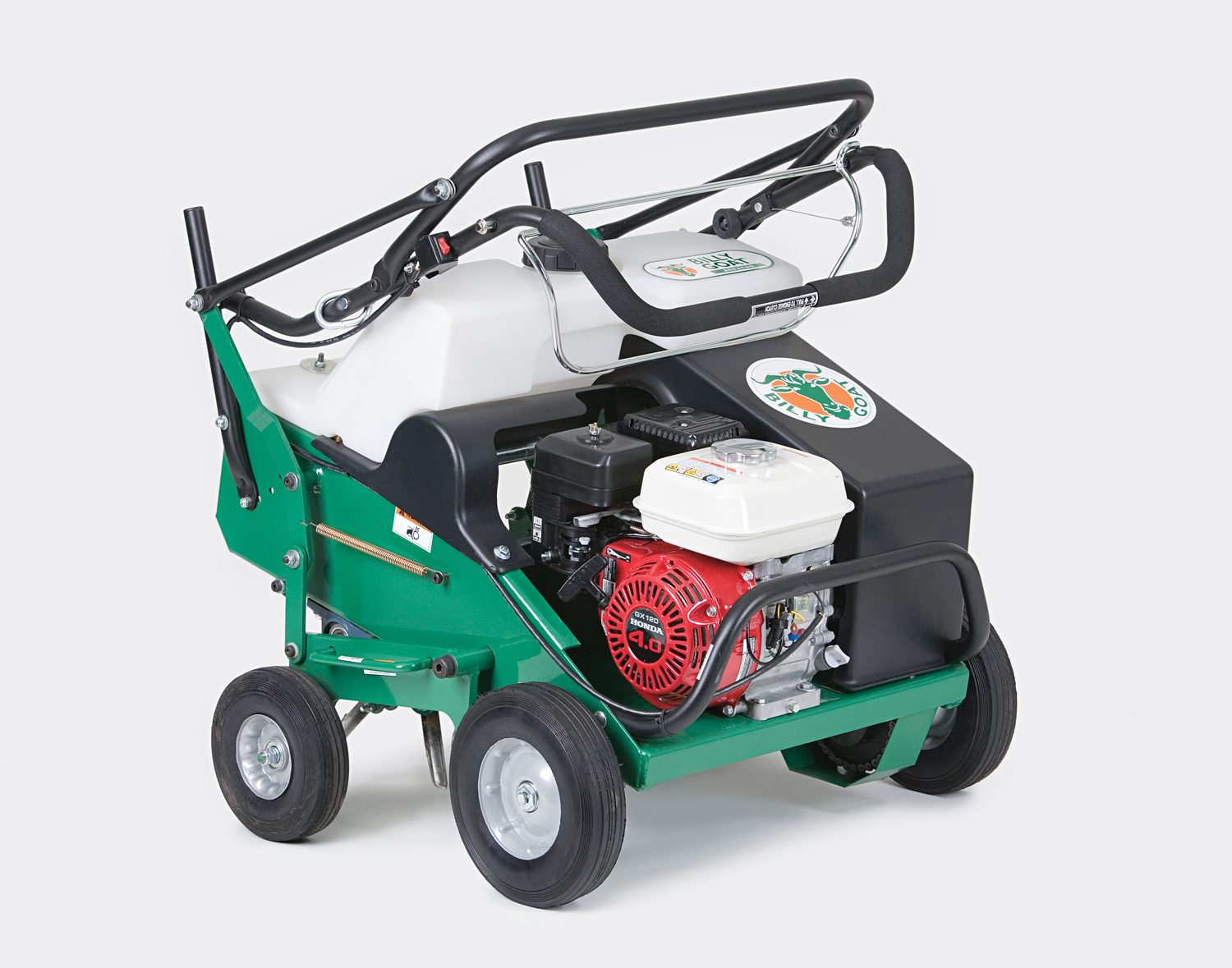

FOLD-N-GO™ HANDLES
Are excellent for transport and storage and fold without tools.

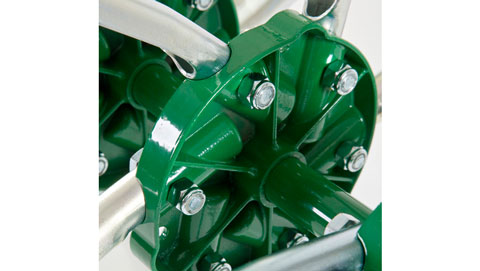

SINGLE BOLT TINE FASTENER
Rock solid and easy to service.
AE WARRANTY
1-year machine

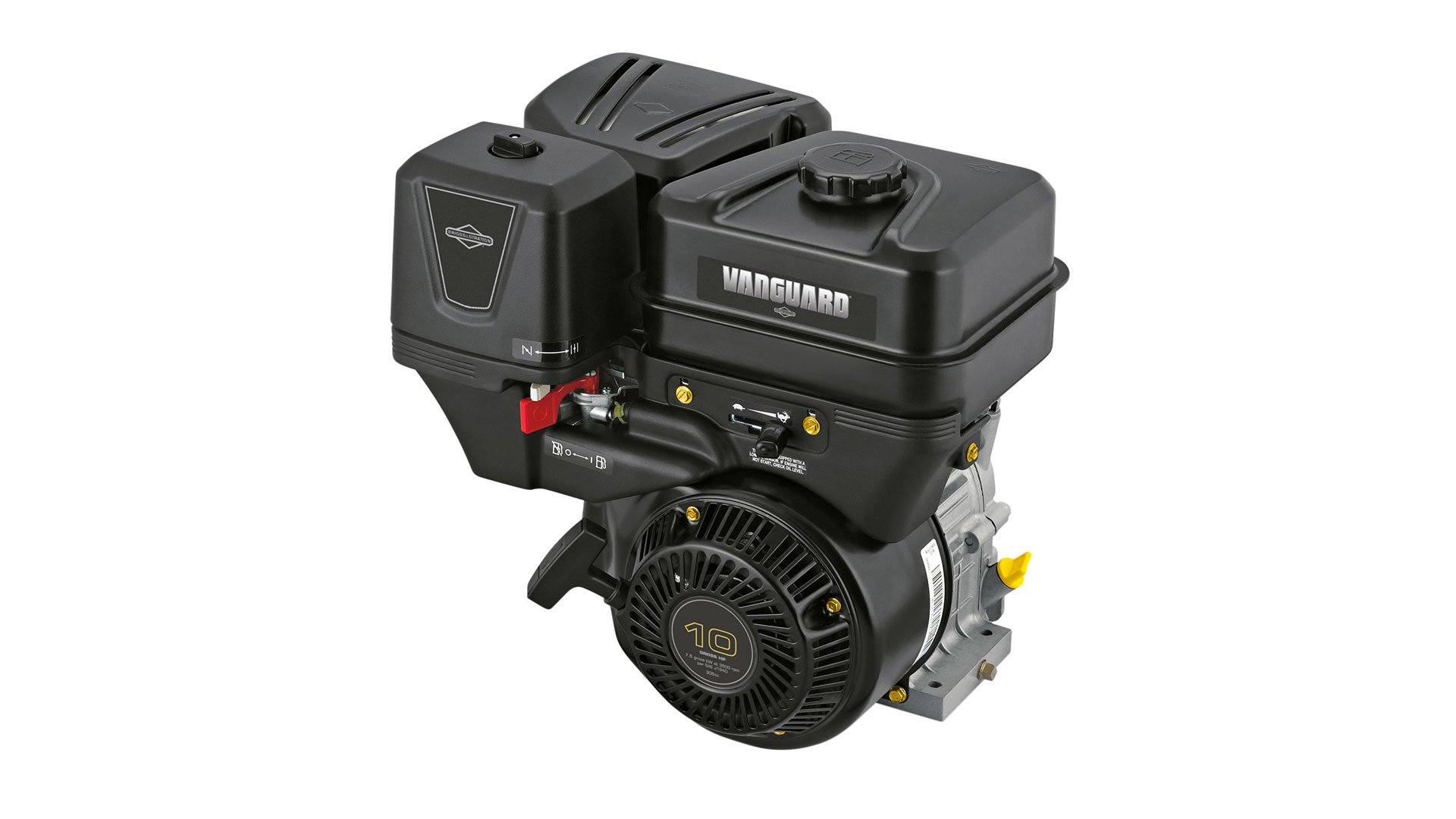

SINGLE-CYLINDER VANGUARD® ENGINE ADVANTAGE
Cyclonic air filtration extends air filter replacement intervals up to 600 hours
Advanced oil management system extends oil change intervals up to 200 hours
TransportGuard® eliminates oil/fuel dilution during transport
Cold-weather starting offers easy start down to -20 degrees
Easy fill oil port and dipstick make checking and filling simple
Specifications
| AE401H | AE403V | |
| Engine Displacement (cc) | 118 | 169 |
| Engine Brand | Honda | Vanguard |
| Starter Type | Pull | Pull |
| Drive | Chain | Chain |
| Tines | 24 | 24 |
| Tine Pattern | 4.75" x 7" (12 cm x 18 cm) | 4.75" x 7" (12 cm x 18 cm) |
| Coring Tines | .625" x 3.5" (1.6 cm x 8.9 cm) | .625" x 3.5" (1.6 cm x 8.9 cm) |
| Aeration Width | 19" (48.26 cm) | 19" (48.26 cm) |
| Core Depth | Up to 2.75" (6.985 cm) | Up to 2.75" (6.985 cm) |
| Productivity SQ. FT./HR. | Up to 19,000 | Up to 19,000 |
| Weight | 242 lbs Dry (110 kg) | 252 lbs Dry (114 kg) |
| Length | 57" (145 cm) | 57" (145 cm) |
| Width | 29" (74 cm) | 29" (74 cm) |
| Height | 52.5" (133 cm) | 52.5" (133 cm) |
| Wheels | Semi-pneumatic | Semi-pneumatic |
| Warranty (Balance of Machine) | 1-year machine | 1-year machine |
| Warranty (Engine) | 3 Year limited manufacturer's warranty | 3 Year limited manufacturer's warranty |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Accessories
.jpg)

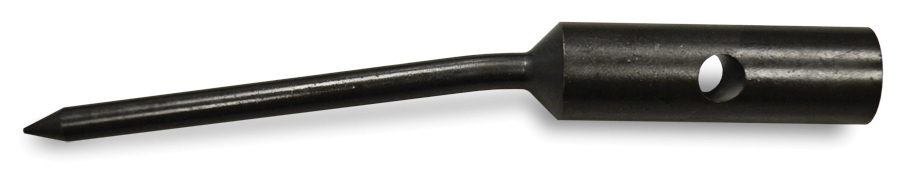

OPTIONAL SOLID STEEL SPIKES
Part #: 360394-S
Excellent for improving drainage or for other no-plug applications. Sold as a set with 24 spikes per set.
