PLUGR® PL1800 ser Reciprocating Aerator
The 18” PLUGR is ideal for smaller property aeration or rentals. No add-on weights are required and reciprocating cam-driven tines propel the unit forward and drive cores up to 2.75” deep even in hard soil conditions, offering higher quality aeration than traditional drums. The unit can do up to 22,000 sq.ft. per hour, is simple to operate for homeowners, easy to steer without lifting and requires no add-on weights. The new ergonomic handle is ISO mounted for reduced vibration and folds allowing for compact transportation and storage. Only 4 tines and no chains along with a no-tool removable cover makes for easy maintenance. Pictured: PL1803V
Features

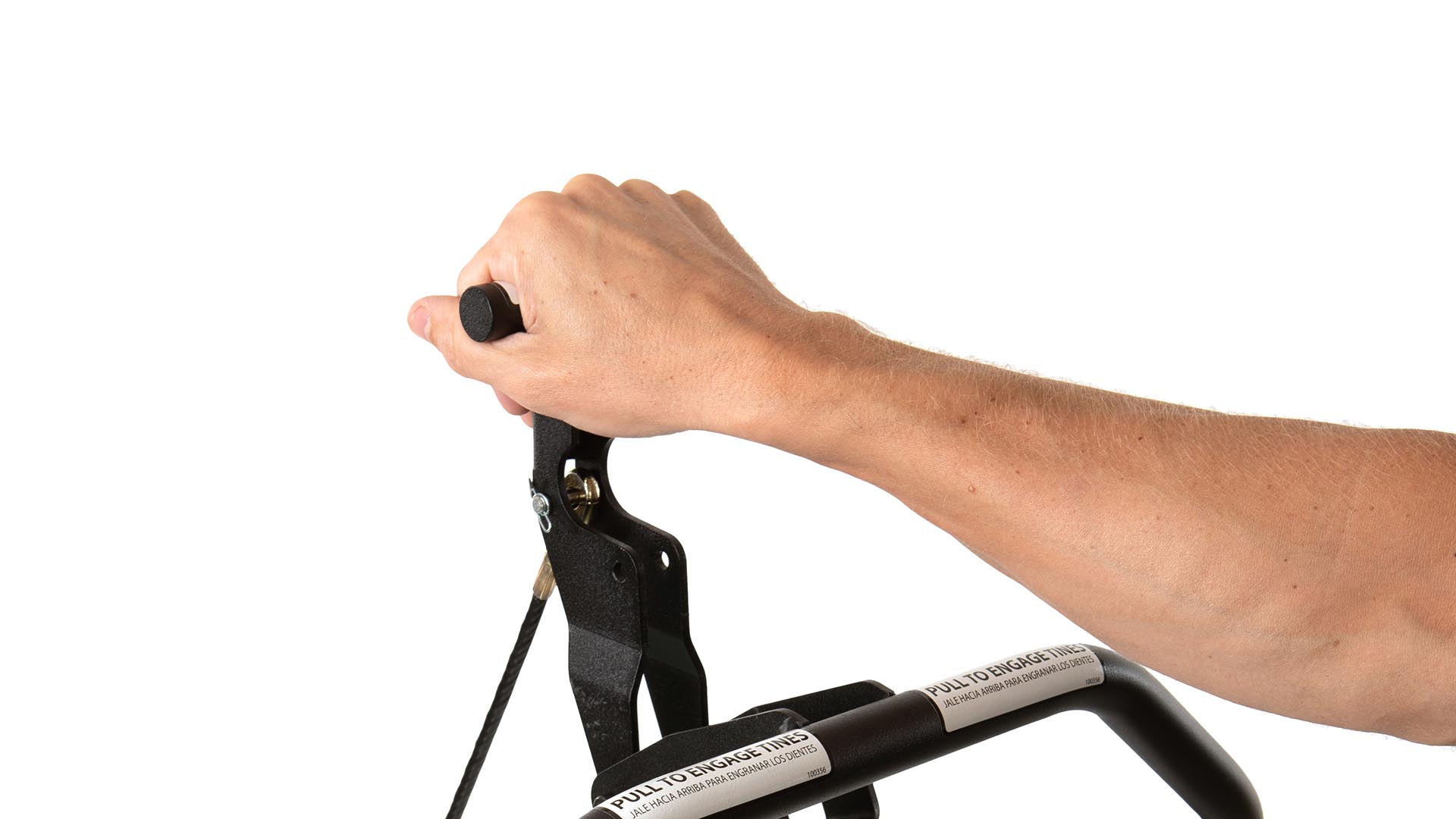

USER FRIENDLY CONTROLS
Handle has fingertip controlled bail for engaging drive / tine. To raise and lower tines, the tine retractor lever is comfortably top mounted.

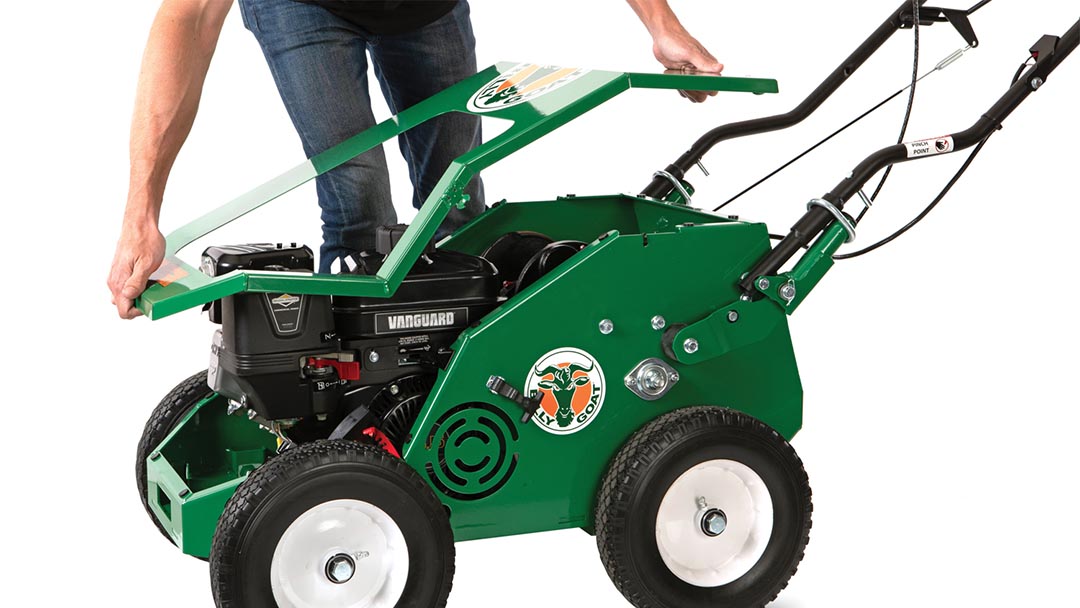

ONE PIECE LIFT-OFF REMOVABLE COVER
Offers ease of maintenance. Easy-release rubberized fasteners offer quick and easy hood removal for 100% access to all components.

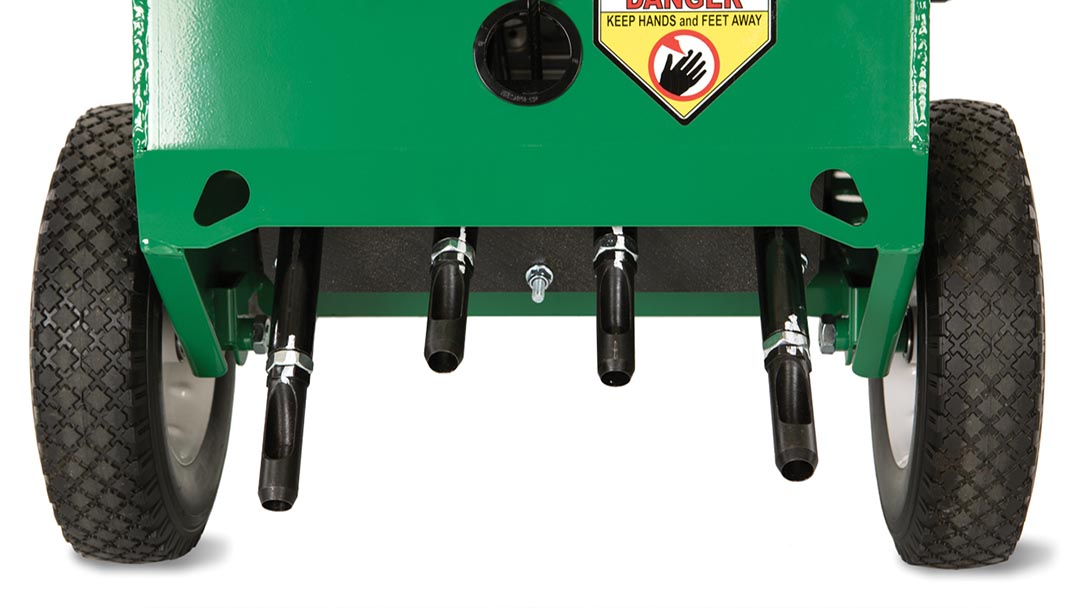

FOUR TENSILE HARDENED THIN WALL TINES
Simple, durable screw in design makes service quick and easy. In / out reciprocating tine motion produces less compaction on the inner surface of the hole compared to spoon designs.

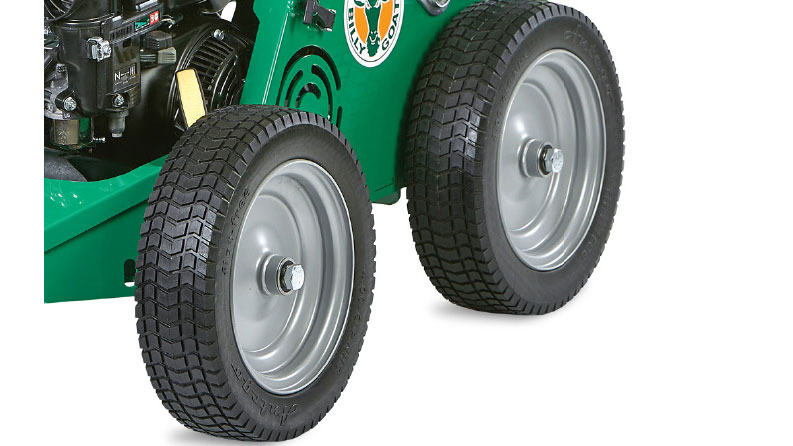

UPDATED WHEEL BEARINGS
Prolong the life of the wheels.

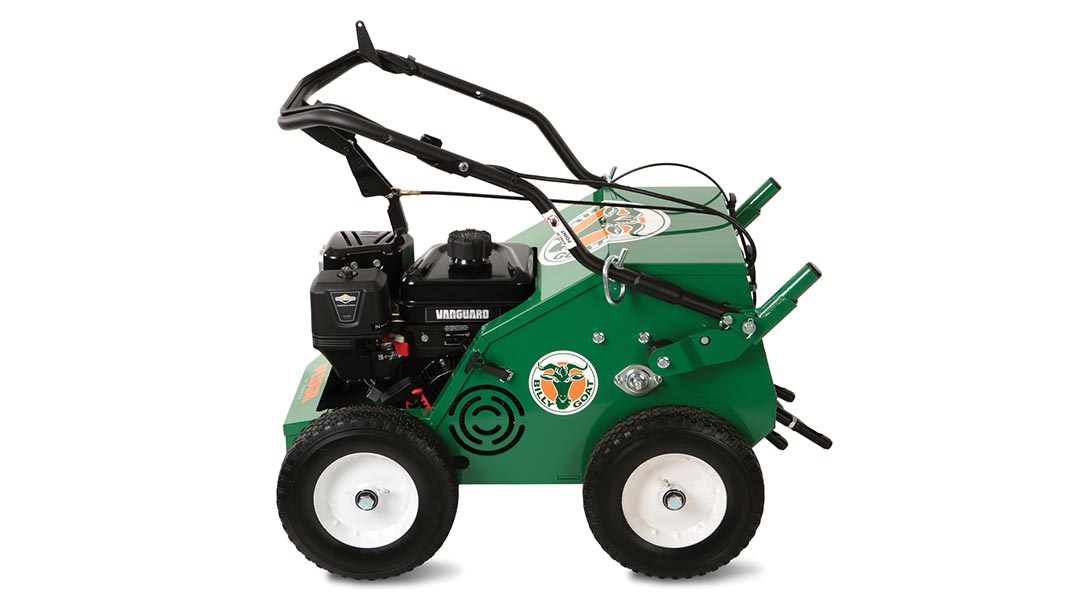

EASY FOLD HANDLE
Handle folds for compact transport and storage. (Wheels shown are former model)
ISO MOUNTED HANDLE
Helps reduce vibration offering fatigue free operation so you can complete more work in less time.

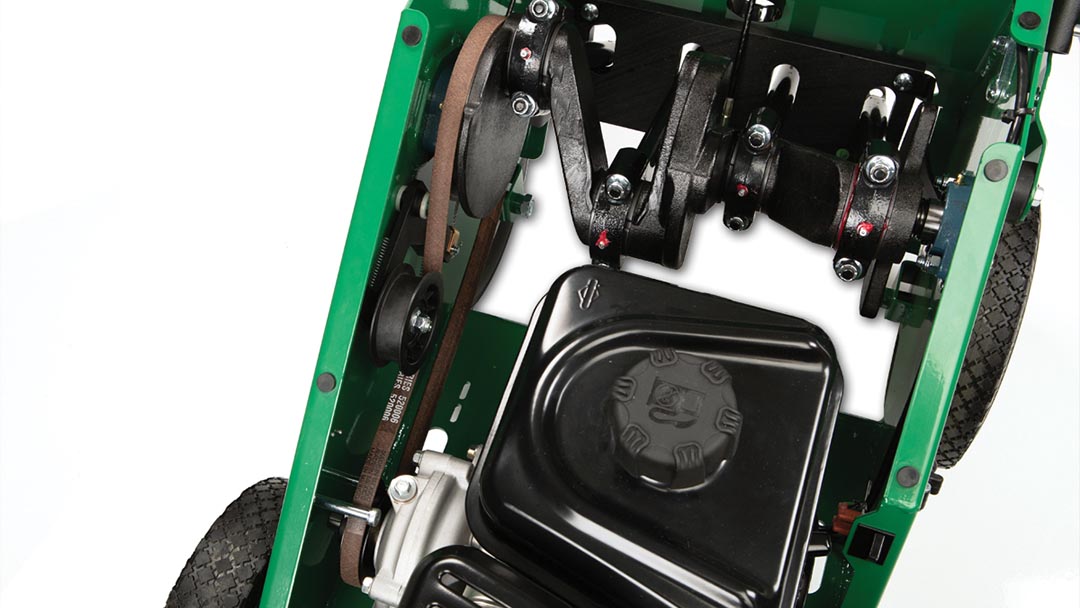

LONGER BELT SPAN
Improves belt de-clutching and increases belt life.

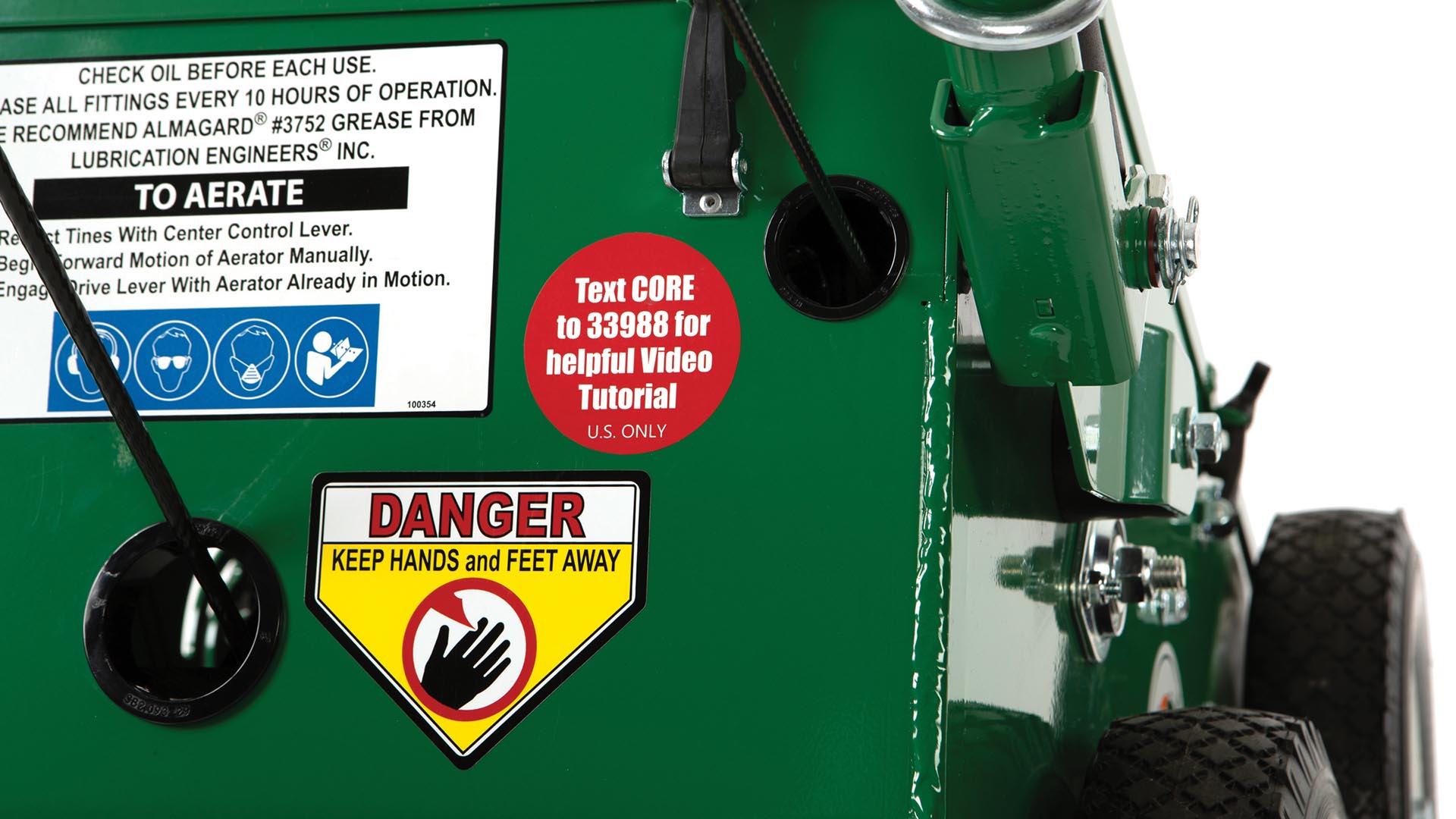

TEXT TO VIDEO
Feature offers quick view of operating instructions on your mobile device.
Specifications
| PL1803V | PL1801H | |
| Engine Displacement (cc) | 169 | 118 |
| Engine Brand | Vanguard | Honda |
| Starter Type | Pull | Pull |
| Drive | Tine Driven | Tine Driven |
| Tines | 4 | 4 |
| Tine Pattern | 3.63" x 6" (9.22 cm x 15.24 cm) | 3.63" x 6" (9.22 cm x 15.24 cm) |
| Coring Tines | 5/8" dia. (1.6 cm) | 5/8" dia. (1.6 cm) |
| Aeration Width | 18" (45.72 cm) | 18" (45.72 cm) |
| Core Depth | Up to 2.75" (6.985 cm) | Up to 2.75" (6.985 cm) |
| Productivity SQ. FT./HR. | Up to 22,000 | Up to 22,000 |
| Weight | 240 lbs (109 kg) | 236 lbs (107 kg) |
| Length | 57" (145 cm) | 57" (145 cm) |
| Width | 24" (61 cm) | 24" (61 cm) |
| Height | 40" (101.6 cm | 40" (101.6 cm |
| Wheels | 12" (30.48 cm) semi-pneumatic flat free | 12" (30.48 cm) semi-pneumatic flat free |
| Warranty (Balance of Machine) | 1-year machine | 1-year machine |
| Warranty (Engine) | 3 Year limited manufacturer's warranty | 3 Year limited manufacturer's warranty |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Accessories

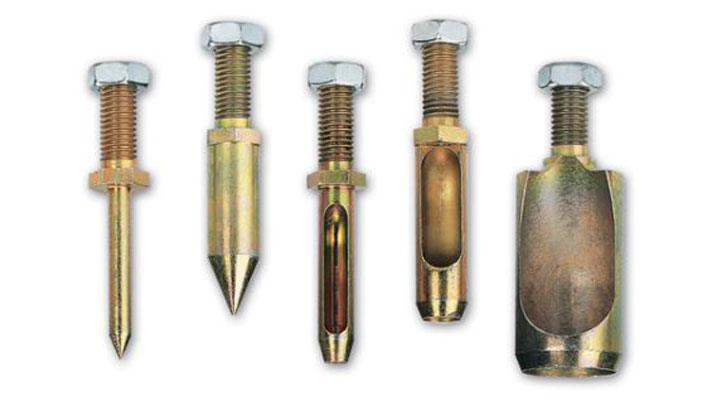

OPTIONAL TINES (PLUGR)
Assorted tine sizes and styles for every turf condition.
3/8" Solid - Part #: 381151
7/8" Solid - Part #: 381149
3/8" Hollow - Part #: 381150
5/8" Hollow - Part #: 382244-S (sold as set with tine and jam nut)
Zoysia Transfer - Part #: 381152

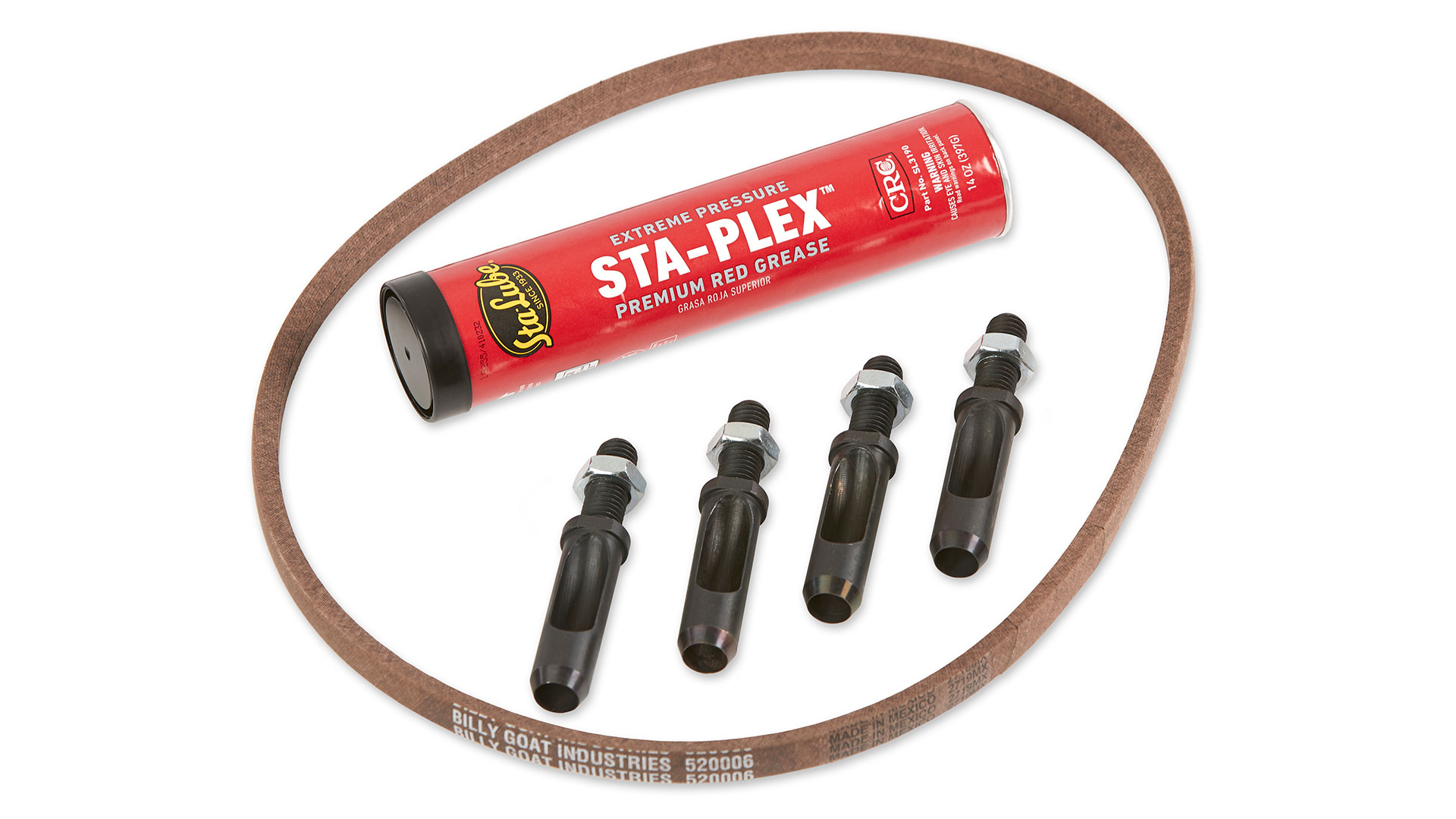

SERVICE KITS (18" PLUGR)
Service Kits (18" PLUGR)
Part #: 382607
Common replacment parts for your 18" PLUGR; 1 belt, 4 tines.
